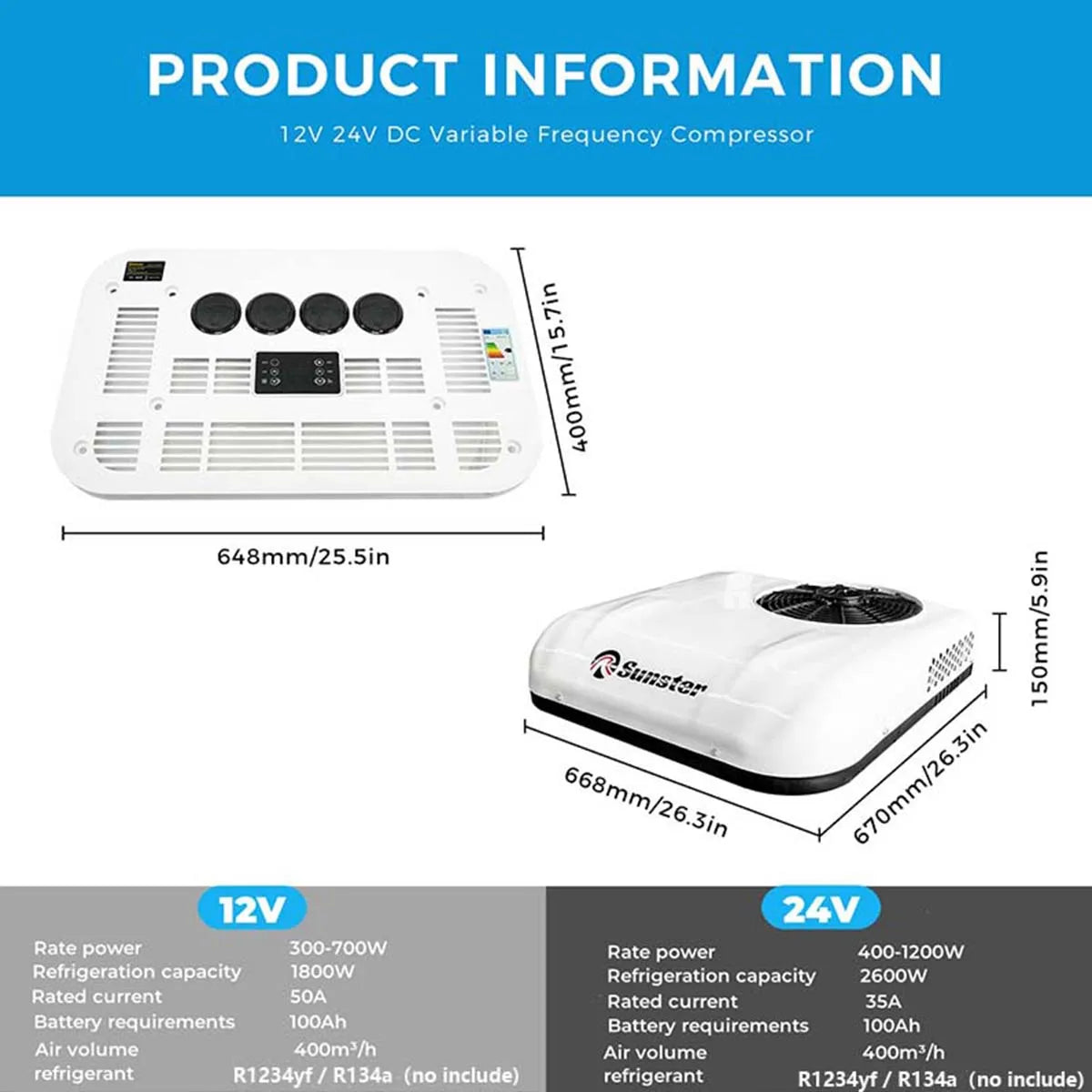

SPECIFICATIONS

Air Output(m³/h): 150-500myh

Air Supply Mode: Straight Blow Mode

Air outlet: 4

Battery requirement: 100Ah

Brand Name: NoEnName_Null

Certification: CE,RoHS,weee

Driving Mode: Host Driven Mode

Hign-concerned Chemical: None

Internal unit circulating air volume: 400m³/h

Maximum current: 60A/50A

Minimum skylight size: 400*200mm

Noise level: 45 dB (A)

Nominal voltage: DC12V/24V

Origin: Mainland China

Rated current: 50A/35A

Refrigerating capacity: 1800W/2600W

Round-robin Mode: Internal Circulation Mode

Temperature Regulation Mode: Temperature Regulation Mode

model: S-AX1

refrigerant: 450G{R1234yf / R134a (Not inclued)}

Note:

1. There is no refrigerant inside the air conditioner, and 450G{R1234yf / R134a (Not inclued)} needs to be added

2.Refrigeration oil type: POE68(included)

3.acuum for 10 minutes before adding refrigerant until the low pressure gauge shows a negative value.

4.Parking air conditioning Battery Requirements

12V: At least 100AH single battery and 60A generator are required

24V: At least 100AH single battery and 50A generator are required

Product description:

Material: ABS

Nominal voltage: DC12V/24V.

Rated current: 58A/32A.

Power consumption: 400-750 W

Speed range: 1000-3000

Internal unit circulating air volu:400m³/h.

Cooling capacity: 1600W/1800W.

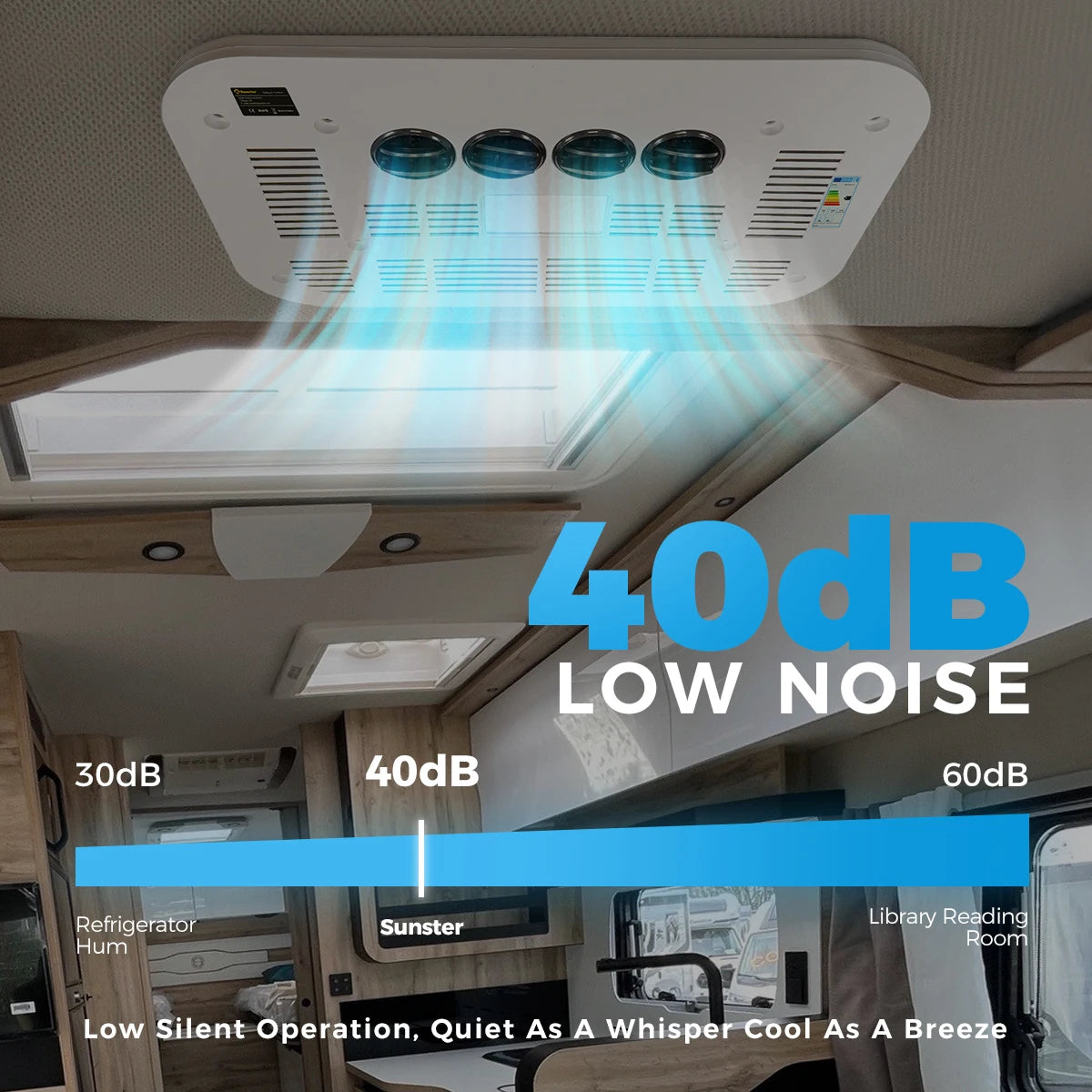

Noise level: 45 dB (A).

Evaporator: ribbed heat exchanger made of copper tube.

Capacitor: full aluminium micro-channel heat exchanger.

Weight: 20kg.

Product advantages:

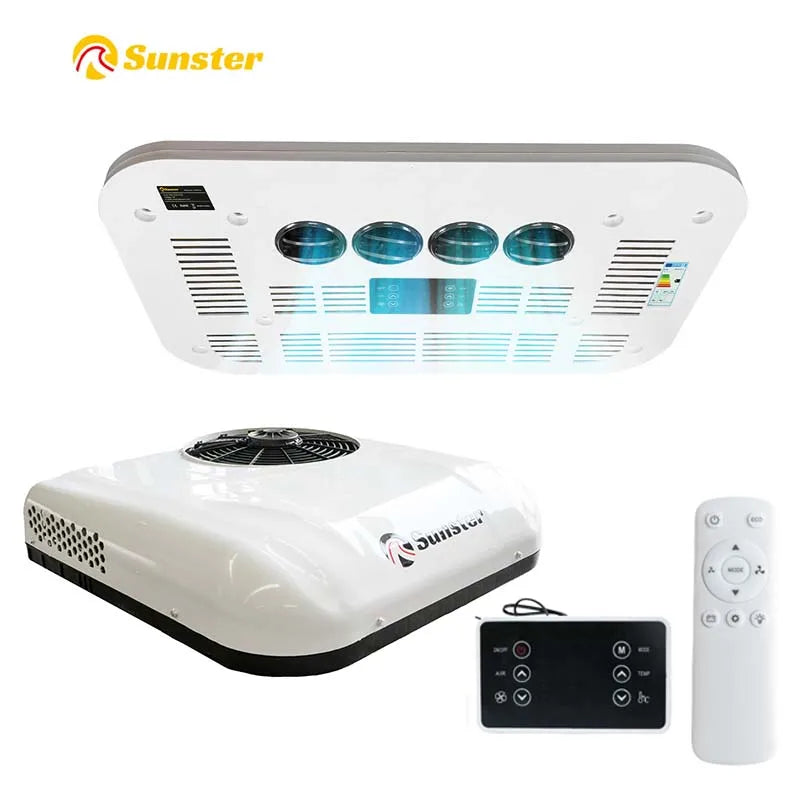

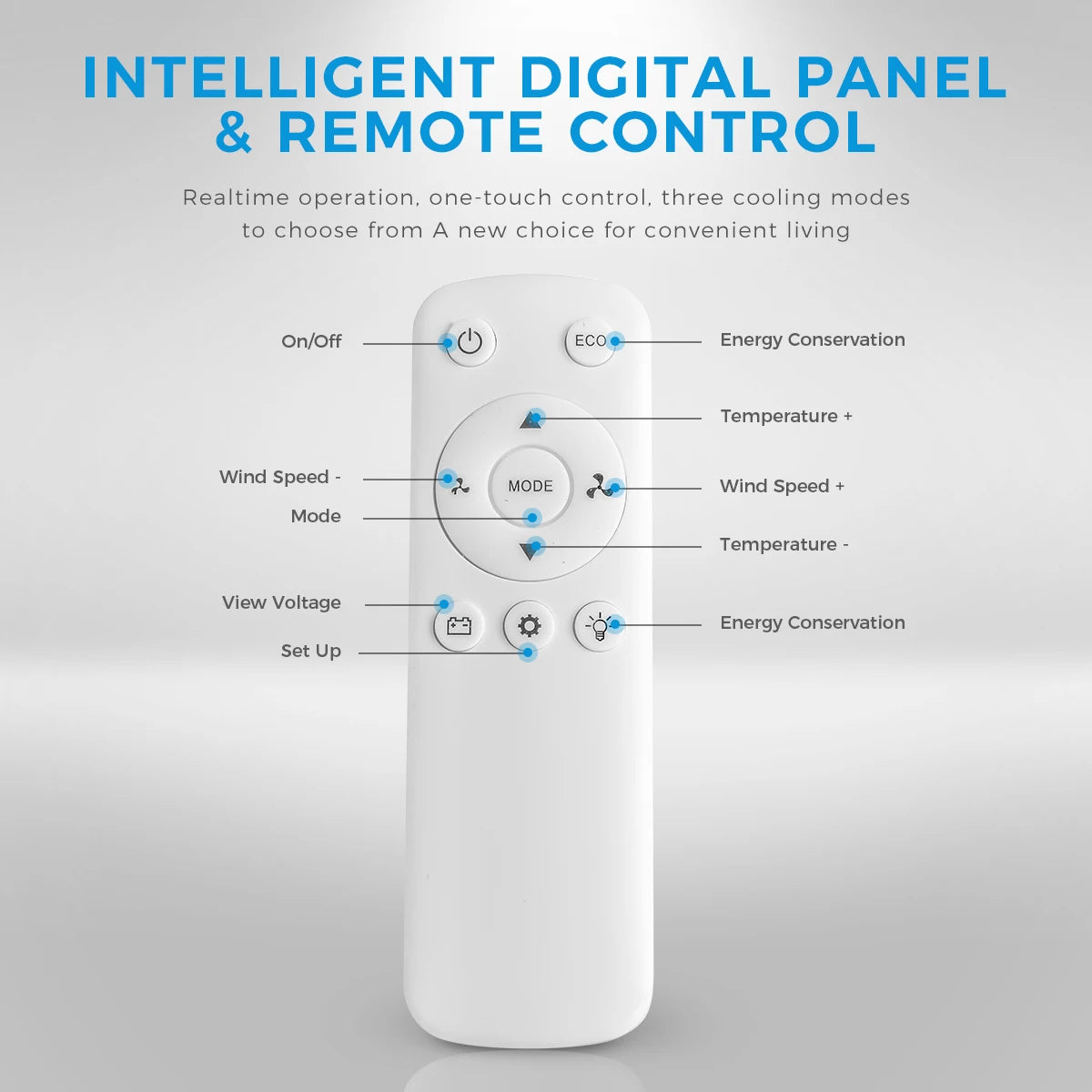

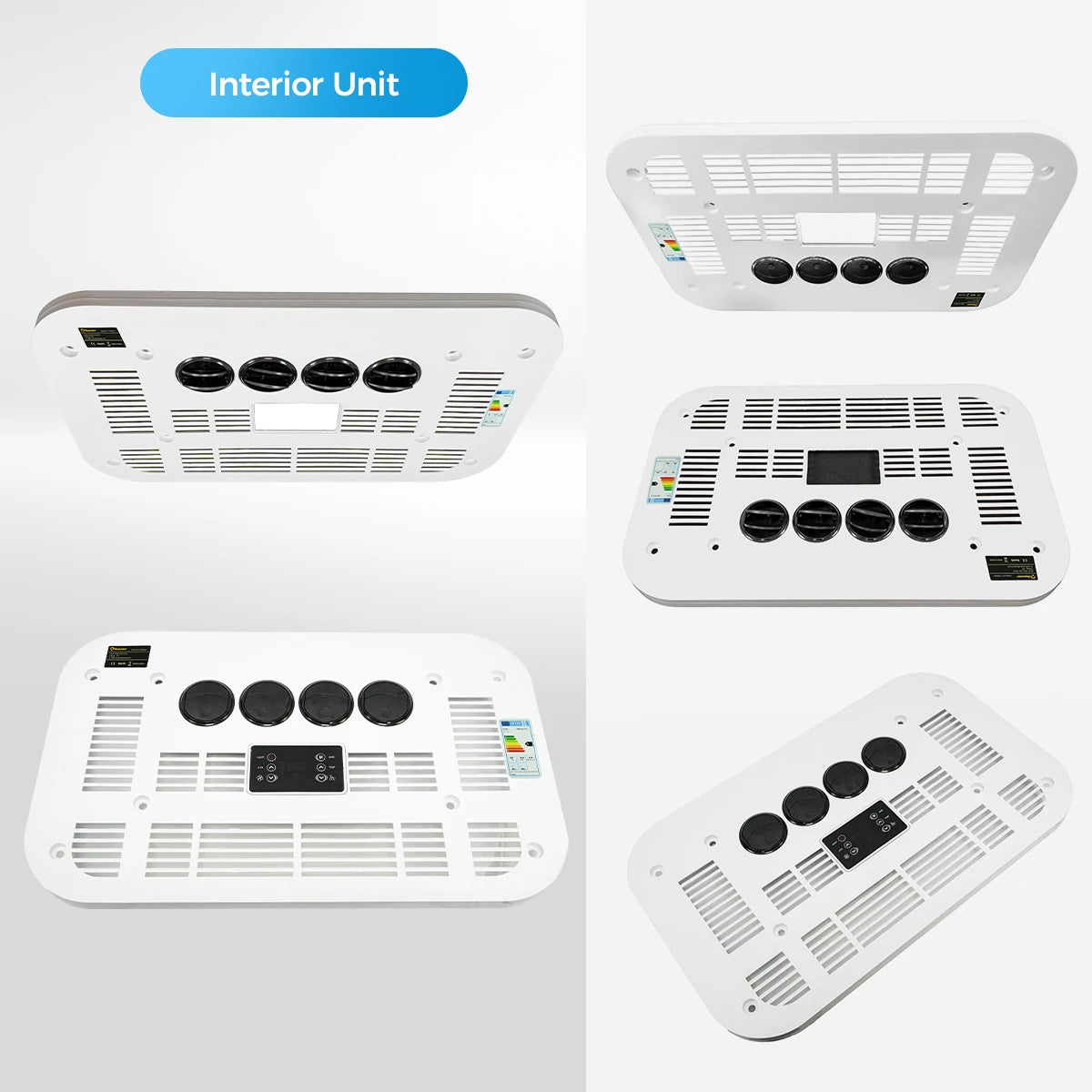

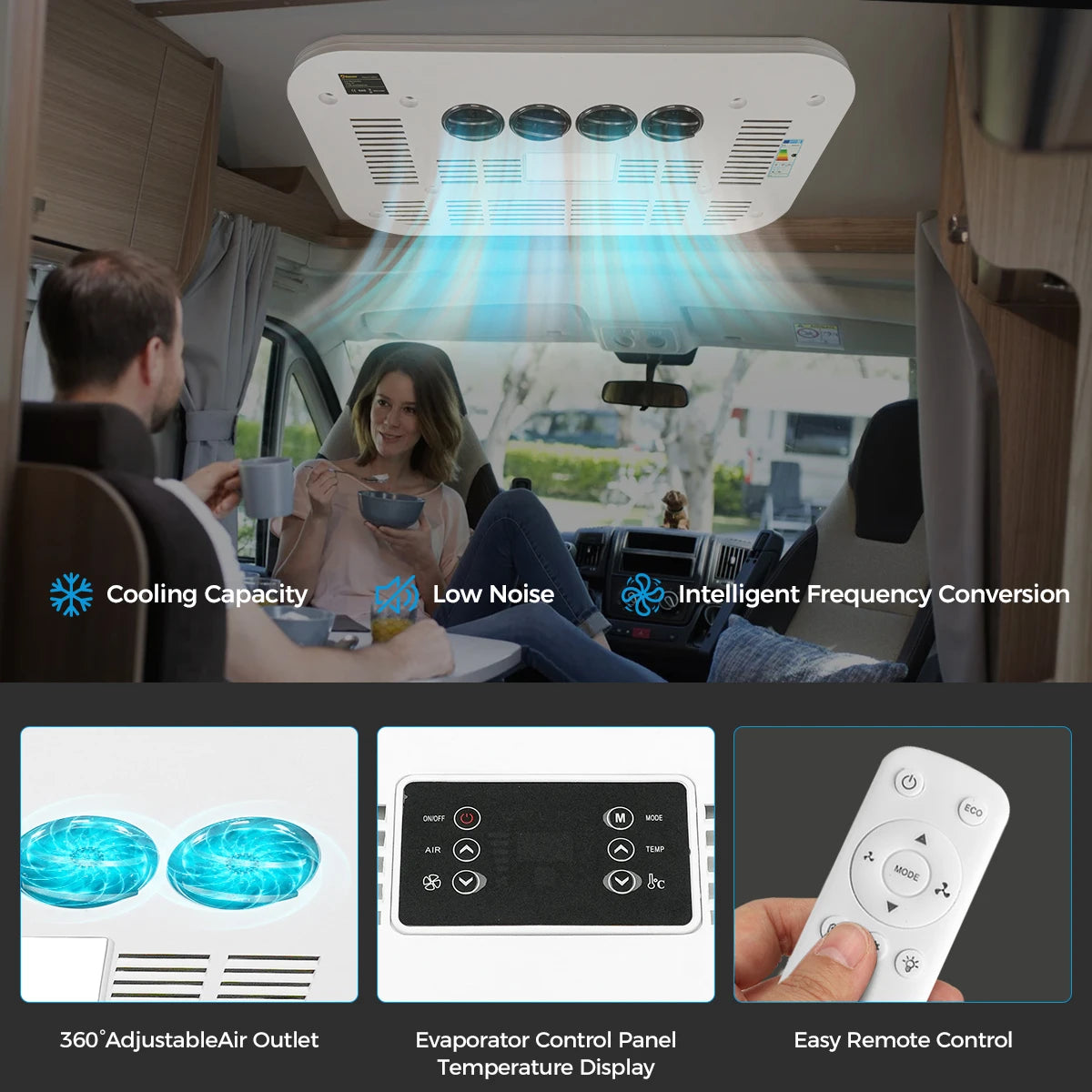

Control panel and remote control---Intelligent,convenient, comfortable.Intelligent panel temperature setting.Convenient infrared remote control.

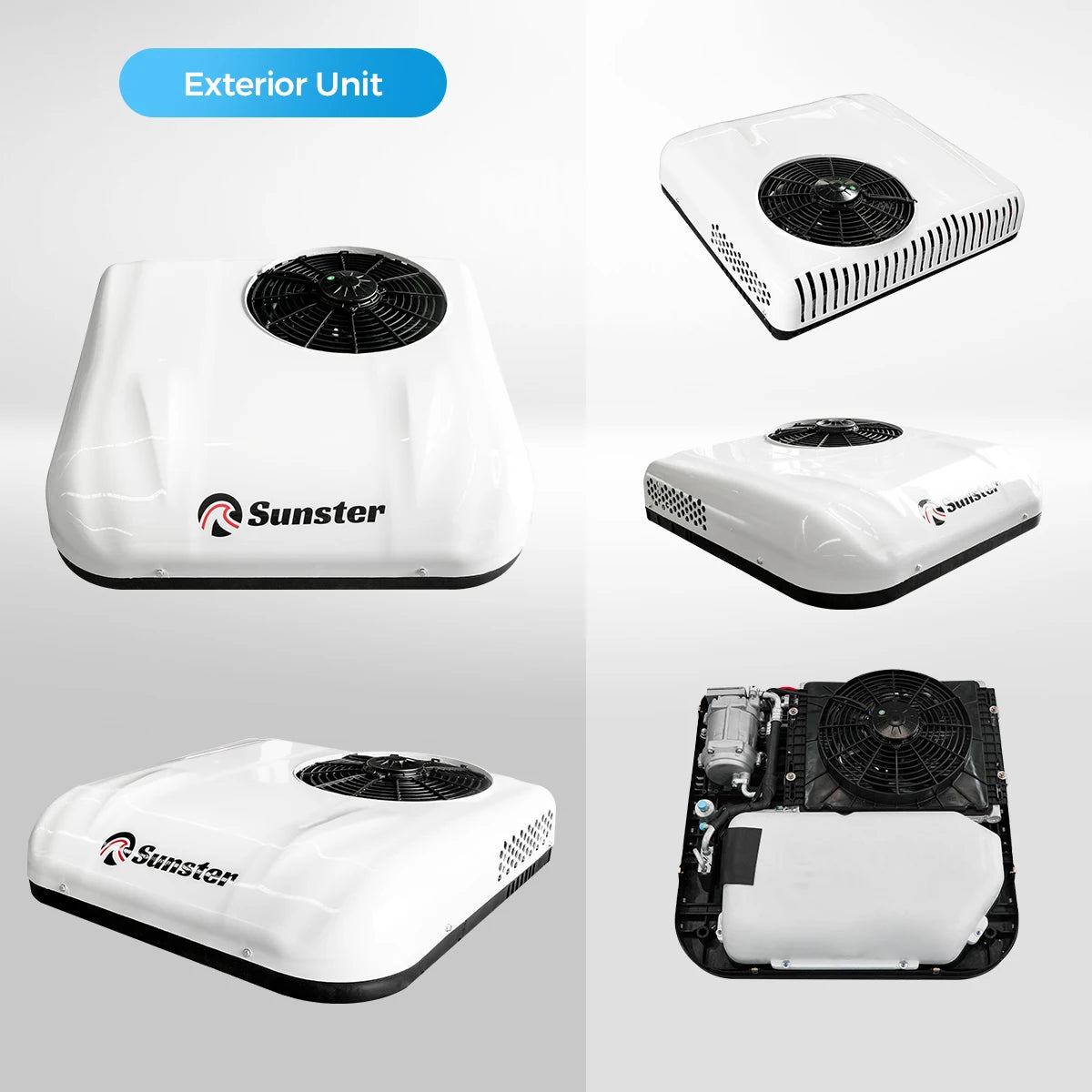

Camper roof air conditioner: made of ultra-light ABS shell, deformation-proof, high temperature resistant, ageing resistant. Four hole air outlet, built-in high-performance cooler, fast heat dissipation, high efficiency and energy saving, fast cooling, you only need it in hot summer.

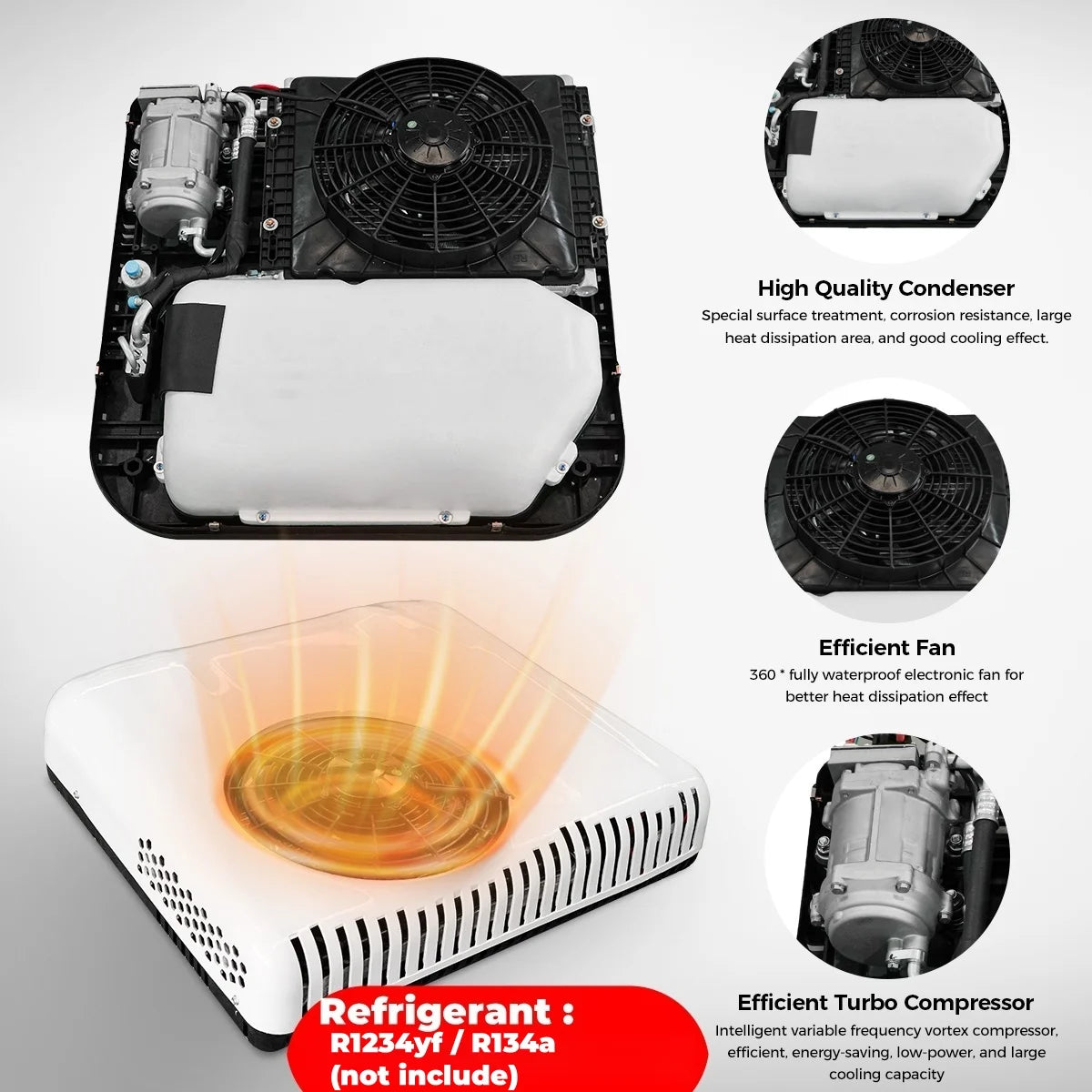

High Quality Condenser --Special surface treatment,corrosion resistance,larger heat disssipation area,better refrigeration effect.

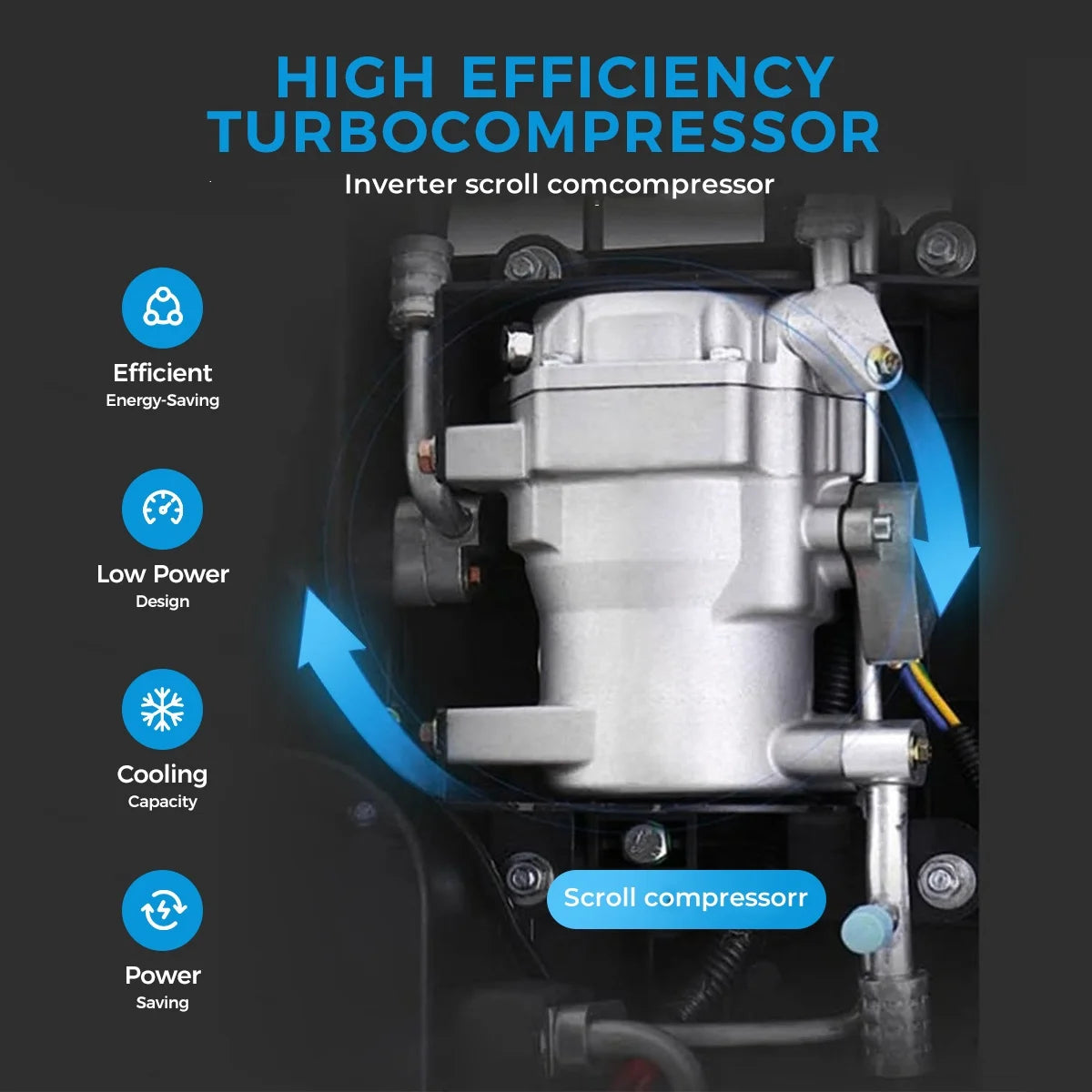

Inverter scroll comcompressor--Intelligent inverter scroll compressor,more powerful and cooling faster.

Installation steps

1. Clean the Window

2. Wrap Cotton Strip : Stick multiple sealing strips onthe roof according to the tilt andheight of the roof.

3. Wrap it Around: Repair the corners of thesealant strip to make it smooth.

4. Put the air conditioner on: Place the air conditioner onthe roof and adjust the positionso that the bottom of the airconditioneris tightly attached tothe sealing strip.

5. Adjust the Brace

6. Fixed brace: Install 4 screw pillars and fixthe fixing rod horizontally orvertically to the roof accordingto the size of the sunroof.

7. After the tie is fxed

8.Connect the pairharness line: The wiring harness is concealed inside the car.

9. Connect Power Supply: Connect the air conditioningpowerinterface and connect itto the car power supply.

10. Paste Sponge Strips

11. Secure Interior Panel

12. Test air conditioner effect: Turn on the air conditioner and use it normally.
