1Set Car Electric Air Conditioner A/C air Conditioning Compressor 12V 24V & Control Panel for Truck Bus Automotive Boat Tractor

$640.02 USD
$640.02 USD $727.30 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From
In stock (82 units), ready to be shipped

SPECIFICATIONS

Brand Name: Treeligo

Certification: CE

Condition: 100% Brand New & High Quality

Discharge pressure: ≤2.0Mpa / ≤2.2Mpa

Discharge temperature: ≤110℃

Hign-concerned Chemical: None

Item Height: 27cm

Item Length: 22cm

Item Weight: 9.5kg

Item Width: 22cm

Lubricating oil require: 8%-10% of whole system refrigerant (Gas)

Manufacturer Part Number: ES21A012F-2

Material: Aluminum alloy

Motor Type: Three speed fixed frequency

Noise(dB(A)): 50

Origin: Mainland China

Refrigerant: R134a

Refrigerating Capacity(KW): 1.688KW

Shell Type: Semi-Closed

Special Features: Cooling

Speed range: 1000~2100 rpm

Voltage: 12 V

Working pressure Suction pressure: 0.2~0.45Mpa

pressure ratio: ≤10 Ambient

temperature: -40℃ - 80℃

Electric Compressor Set for Auto AC Air Conditioning Car Truck Bus A/C 12V 24V

Pay attention
1. PLEASE DON'T RUN the compressor without adding R134a gas (Freon) and connecting with other parts! We couldn't take responsibility for you if you damage the compressor.
2. Remember ! Please screw tightly of the controller unit. Otherwise the controller unit will get burnt.

General requirements:
Refrigerant (Gas): R134a
Speed range: 1000～2100 rpm
Working pressure: Suction pressure: 0.2～0.45Mpa
Discharge pressure: ≤2.0Mpa / ≤2.2Mpa
pressure ratio: ≤10 Ambient
temperature: -40℃ - 80℃
Discharge temperature: ≤110℃
Lubricating oil require: 8%-10% of whole system refrigerant (Gas)

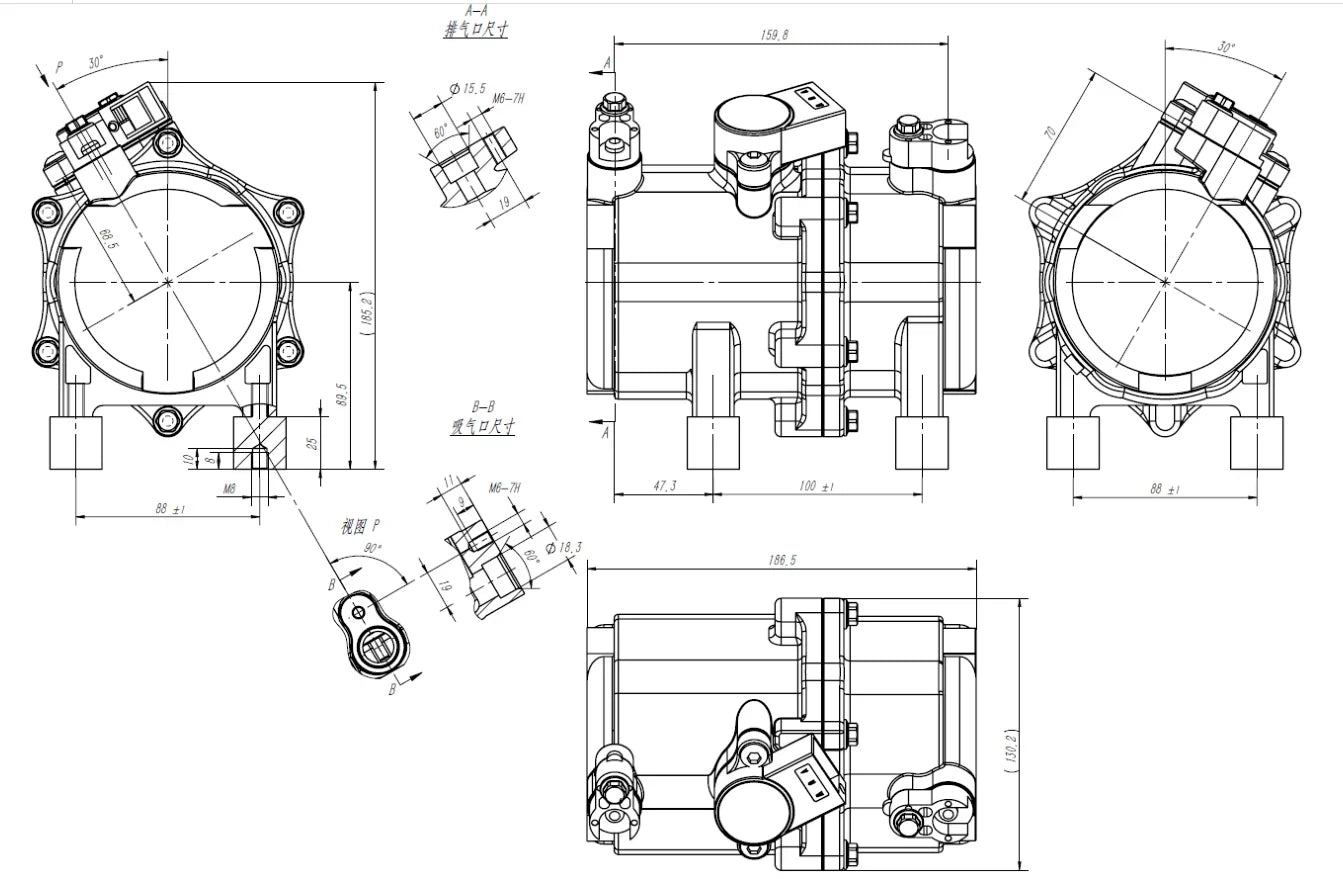

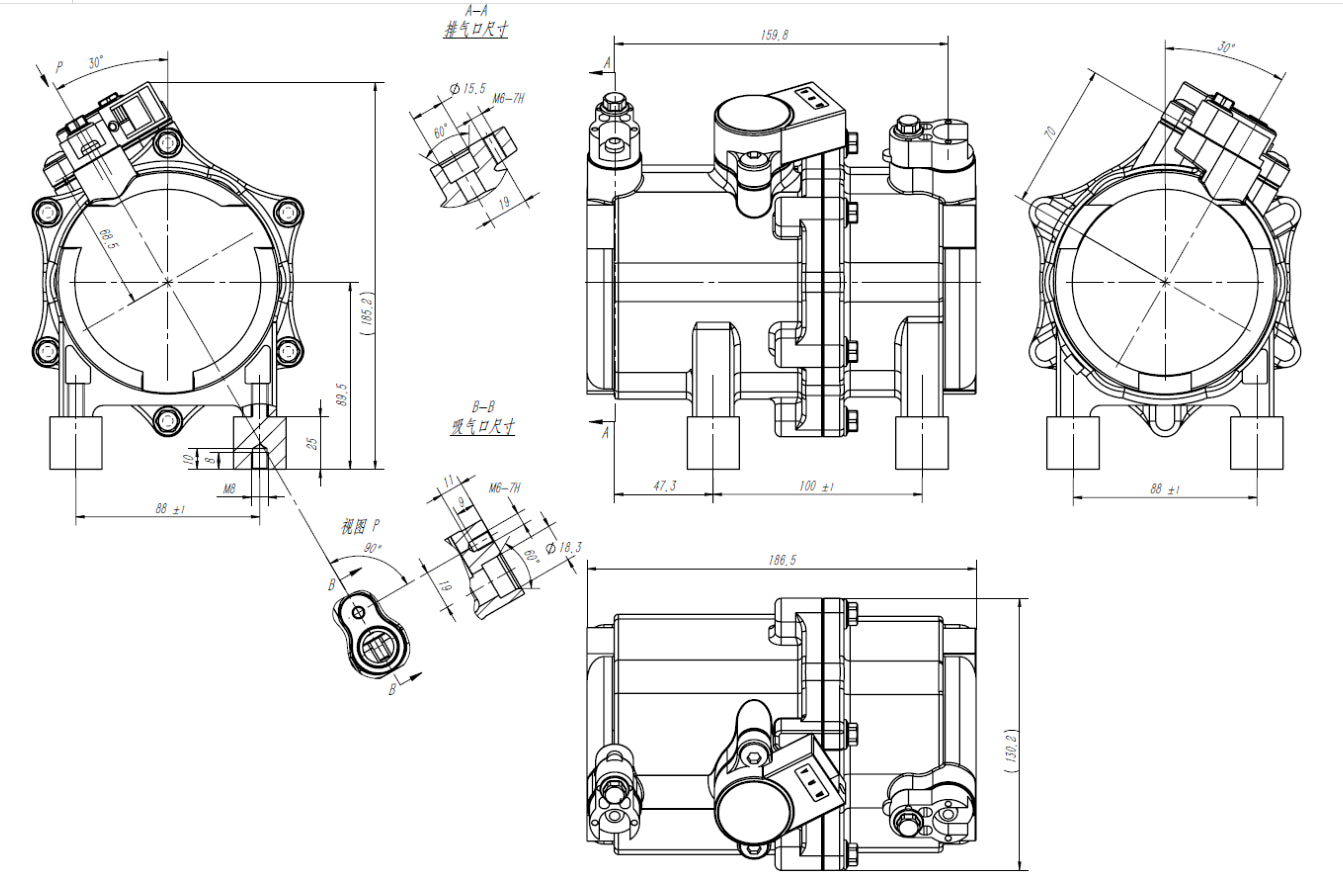

Compressor data:
Compressor style: Semi-closed Horizontal Scroll
Compressor Material: Aluminum alloy Voltage: DC 12V / 24V
Working voltage range: 10.5VDC～15VDC / 19.5VDC～32VDC
Current: 45A+-2 / 35A+-2
Displacement: 21cm³/r
Cooling capacity: 1.688KW / 2.465KW (5731BTU / 8410BTU)
Speed range: 1000 - 2300rpm / 1000 - 3000rpm
Rated power: 550W / 850w Rated speed: 1800rpm / 3000rpm
Oil: POE / 130ml - 150ml (Oil has already in compressor )
Gas/Refrigerant: R134a
Condensing temperature range: 26.7～68℃
Evaporating temperature range: -10～12.5℃
Refrigerant leakage rate: <14g per year
Suction pipe inner size: Ø18.3mm
Discharge pipe inner size: Ø15.5mm COP W/W: 3.07 / 2.9
Compressor body not to be tilted (the angle between the main axis of the compressor and the horizon should not be greater than 5 °)

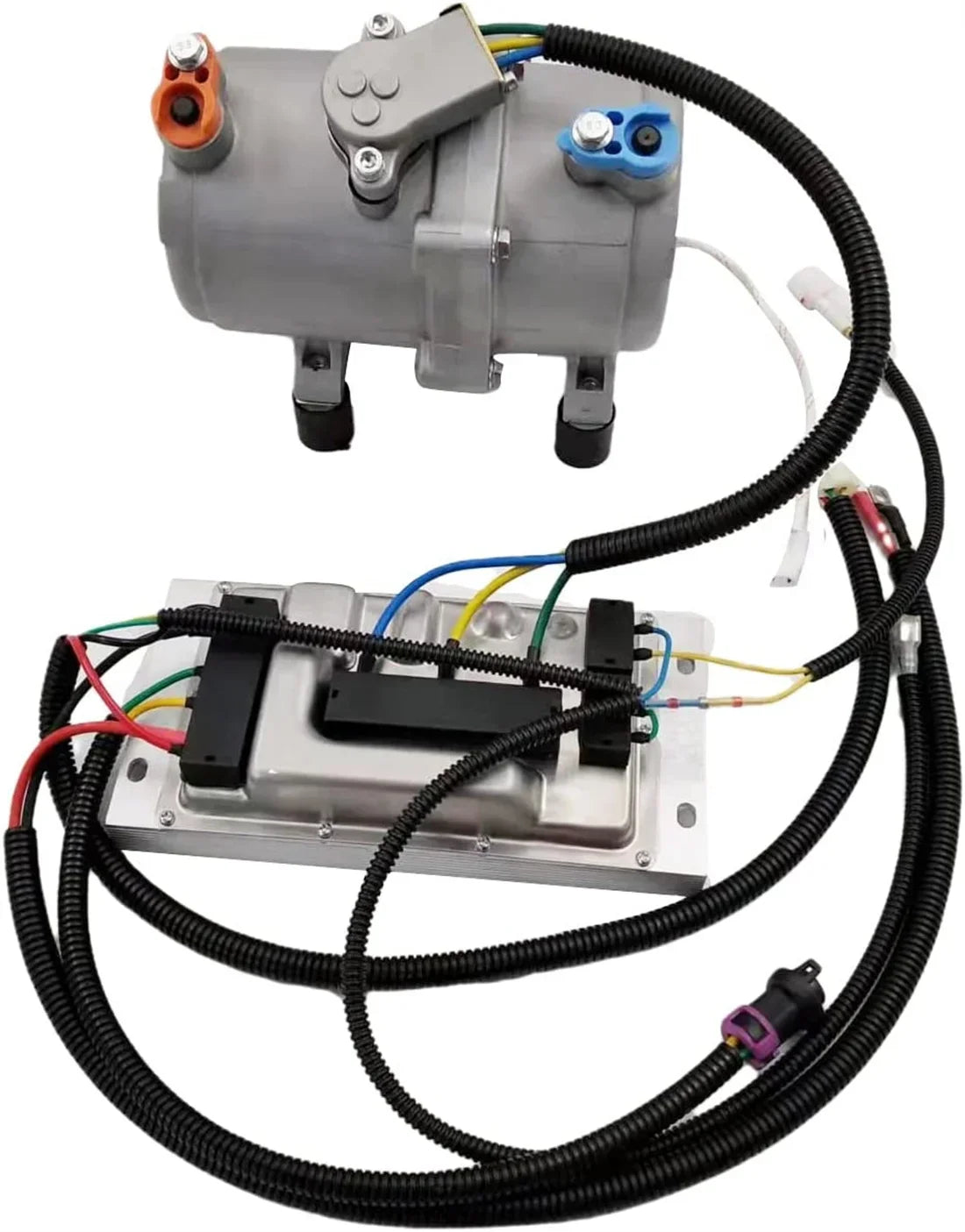

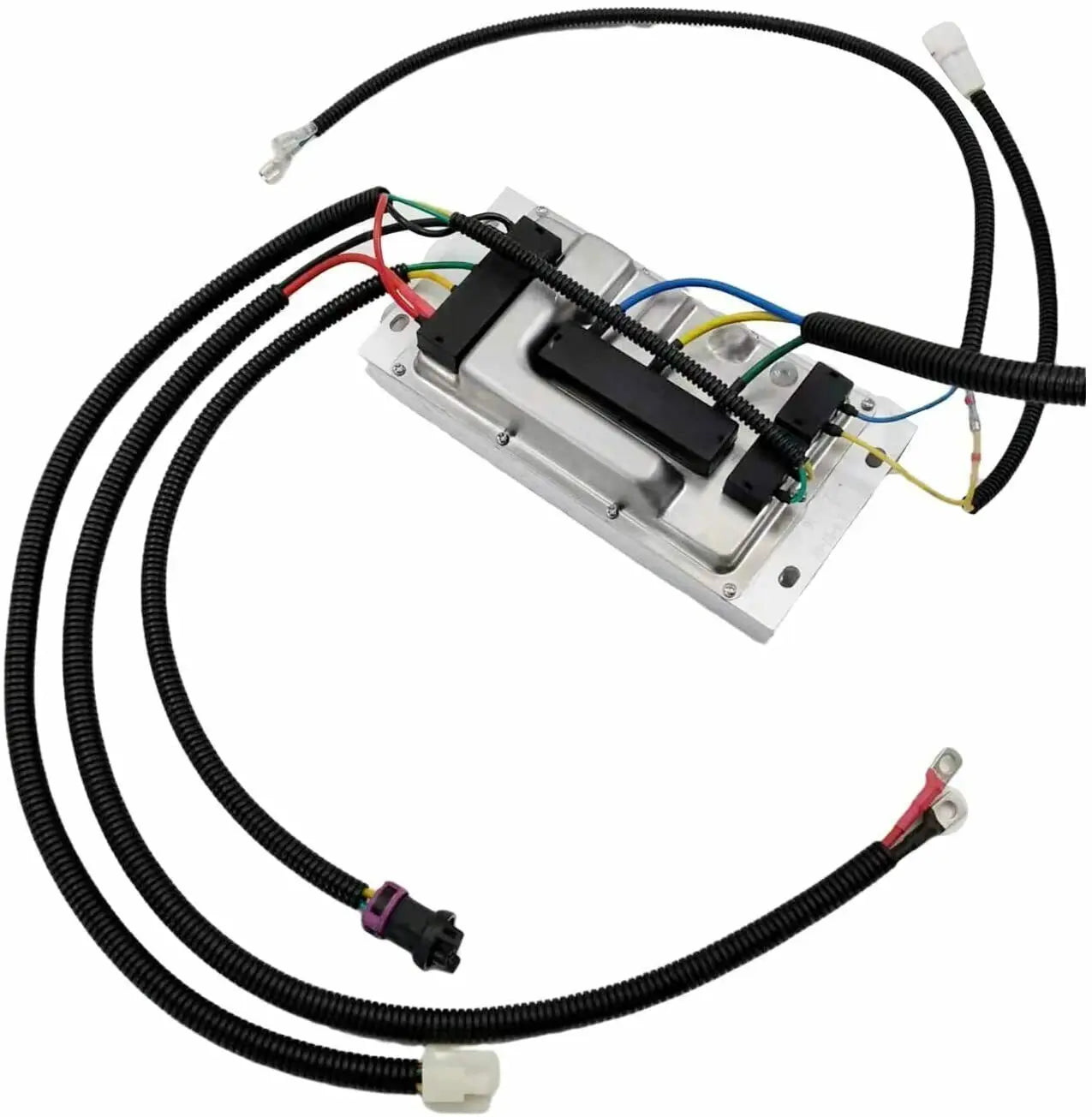

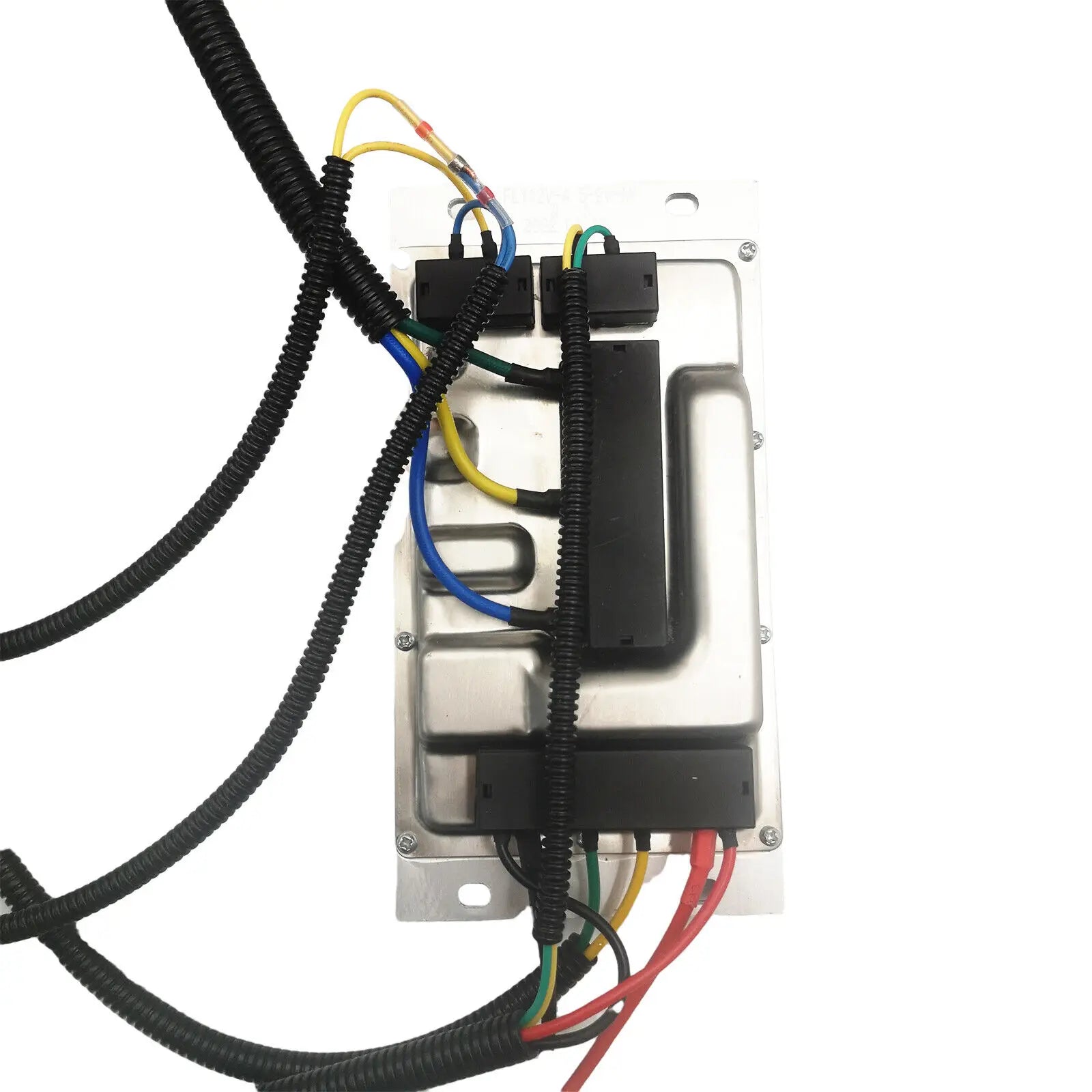

Brushless controller unit :
Brushless direct current controller
1. Over / Under voltage protection: DC 12V -- ( 21V / 10.5V ) DC 24V -- ( 42V / 20.5V )
2. Max power: 600w / 1200W

Generator (battery) request :
12V compressor require generator ampere over 100A;
24V compressor require generator ampere over 70A.
About vehicle battery. If you want to use the electric compressor after parking, then your vehicle battery capacity should be large enough. For example, 12V compressor current about 45A. So one new and full charged 45A battery can run the compressor for one hour.

Led blinking:
Blinking 1 times, pause 1 second: Standby mode.
Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.
Fast blinking 3 times, pause 1 second: Locked rotor protection.
Fast blinking 4 times, pause 1 second: Undervoltage protection.
Fast blinking 6 times, pause 1 second: Electric fan fault.
Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.
Fast blinking 8 times, pause 1 second: Compressor over heated protection.
Fast blinking 9 times, pause 1 second: Pressure switch protection.

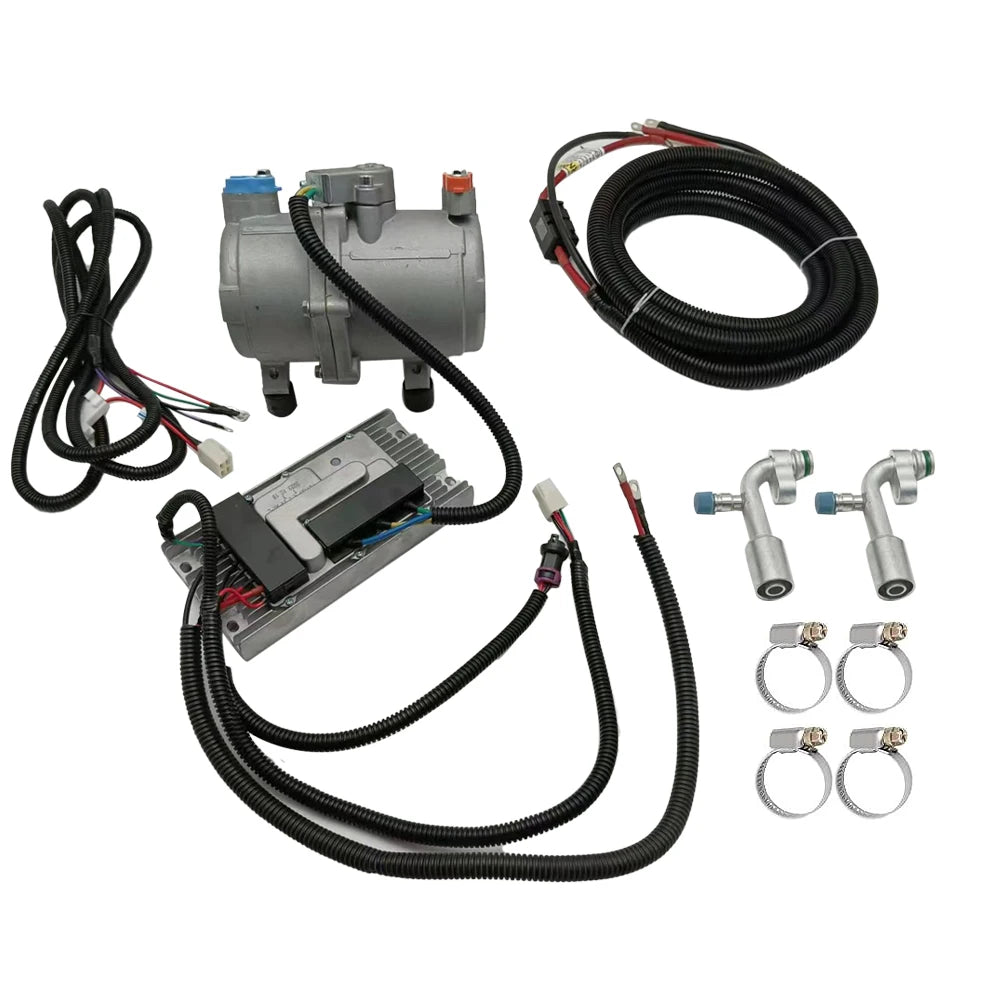

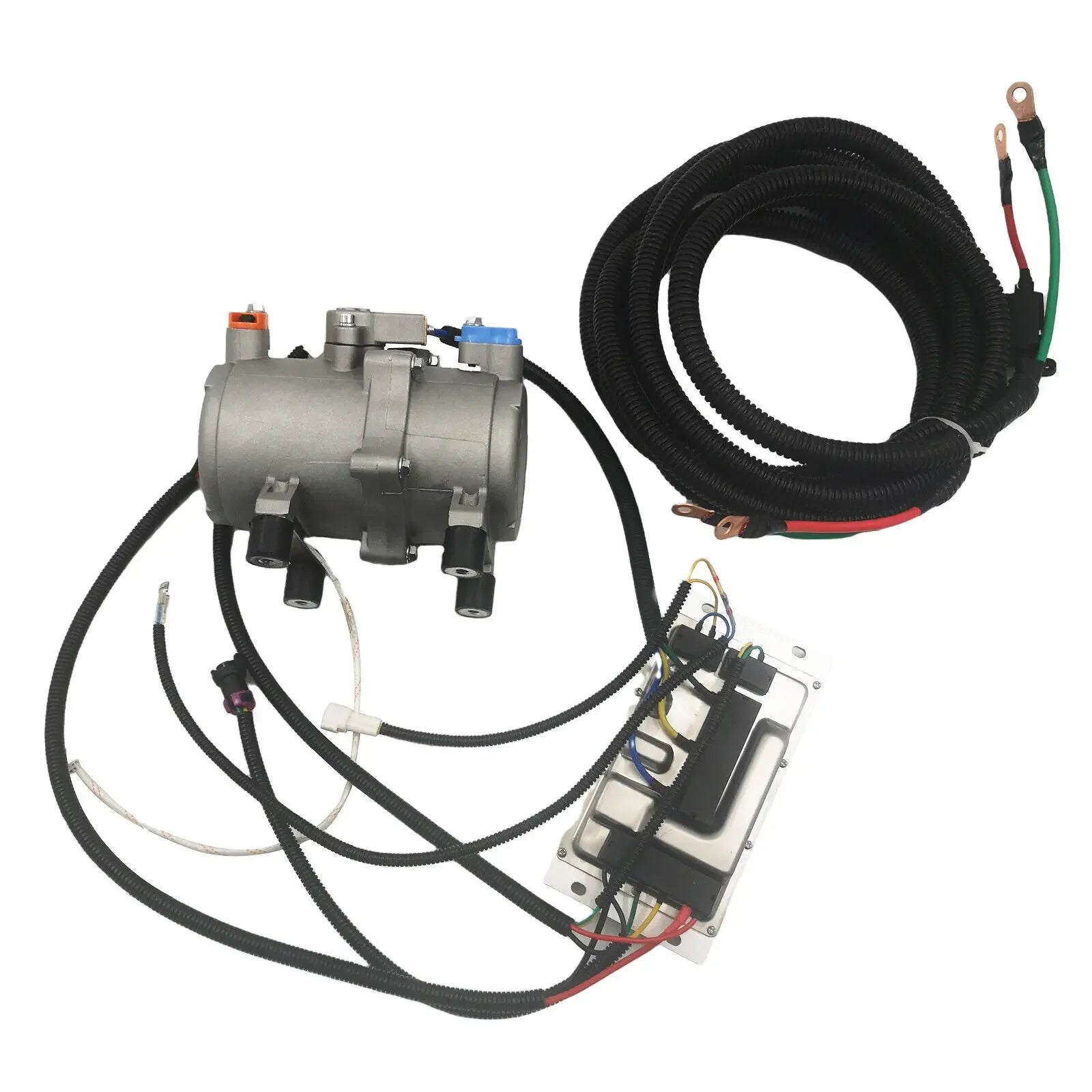

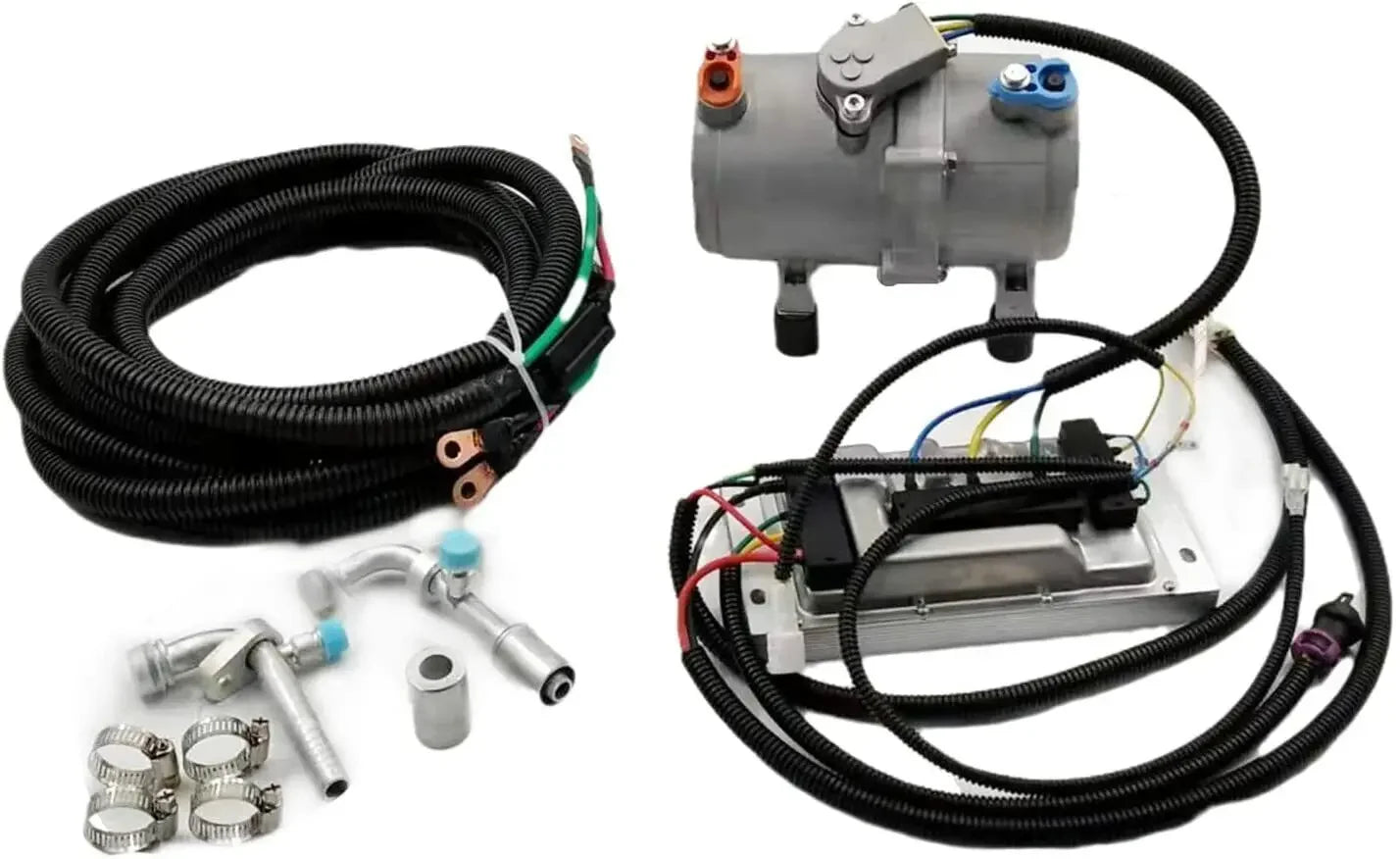

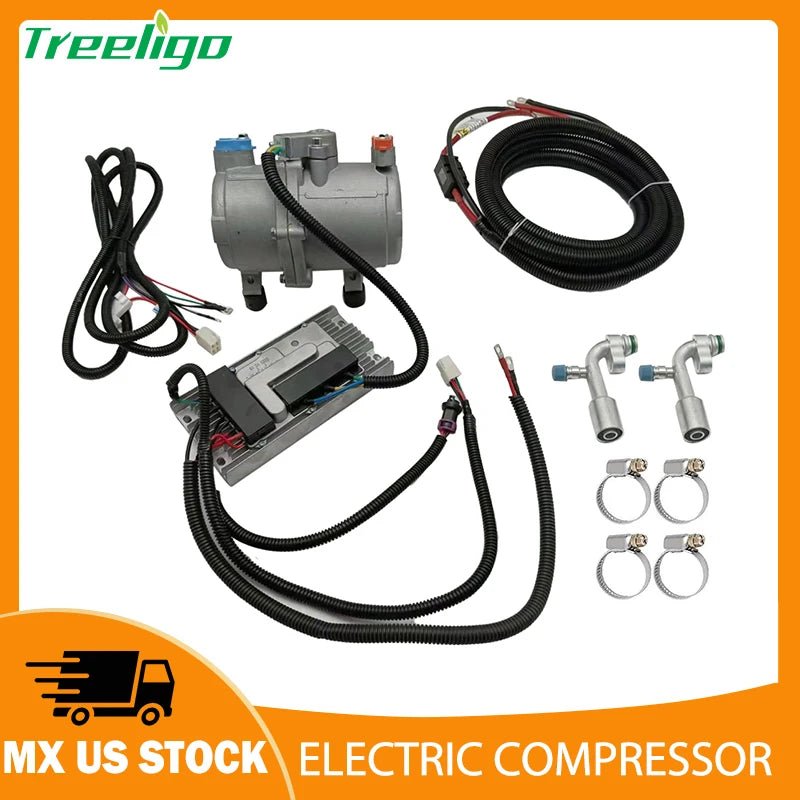

Package product list:
1. 1 x Compressor
2. 1 x Brushless controller unit

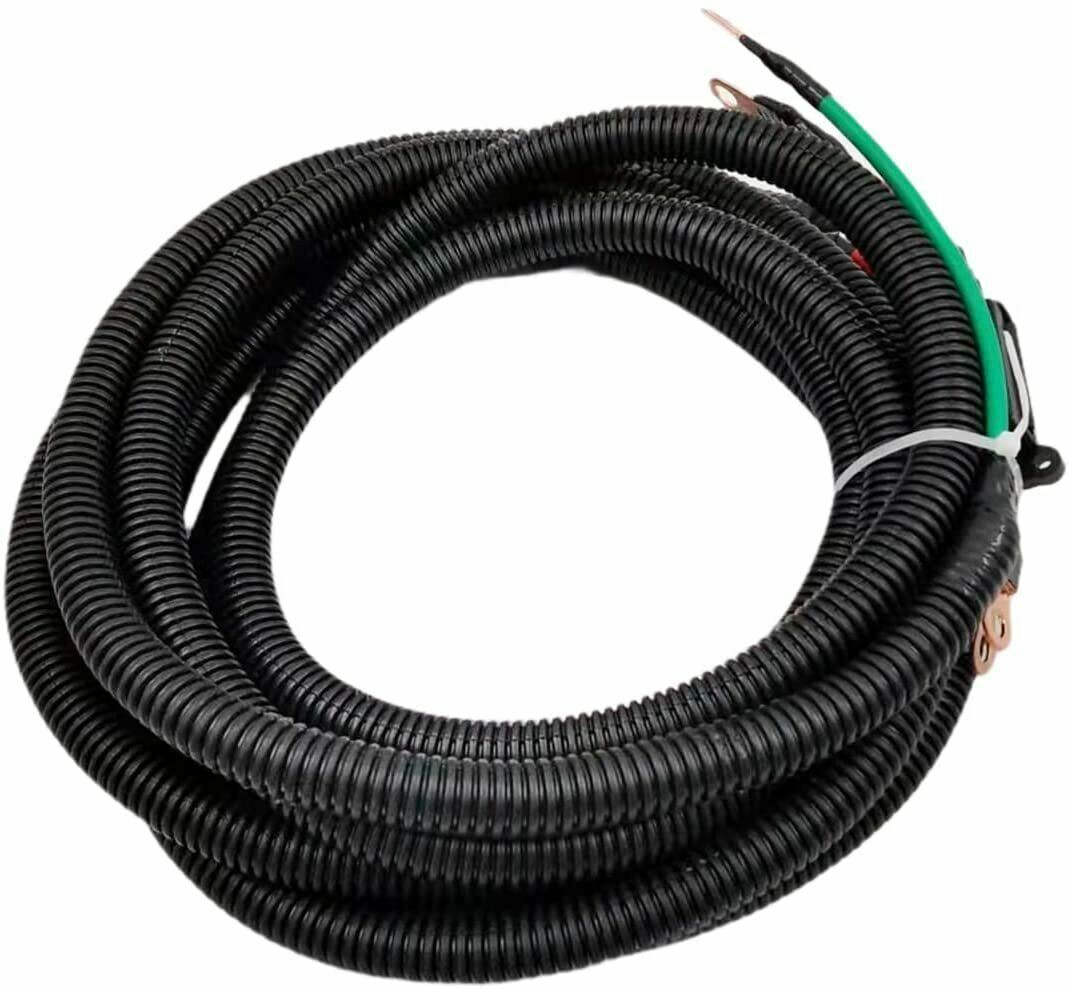

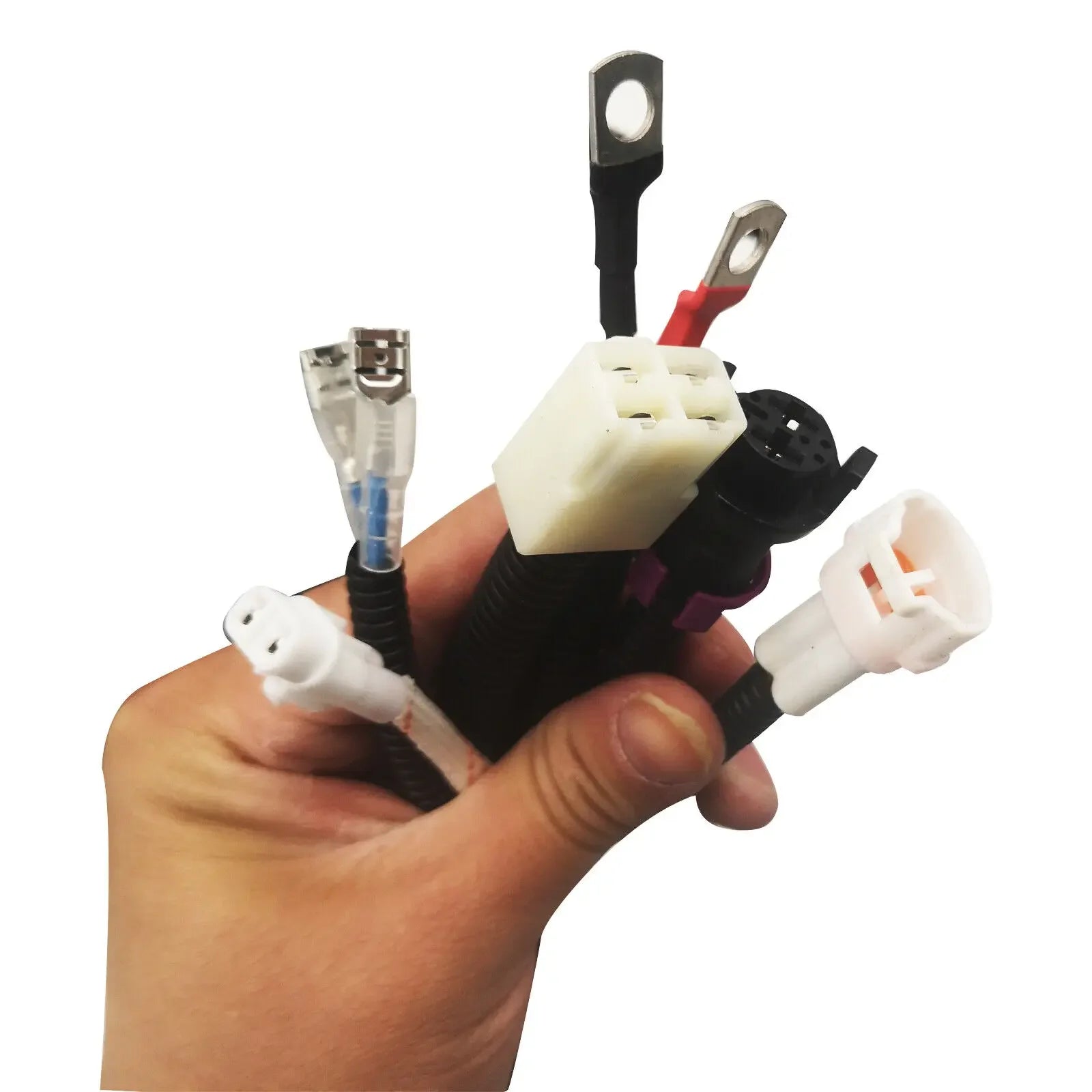

3. 1 x Power wire
4. 1 x Evaporator wire
5. 1 x Cooling fan extension lines
6. 1 x Direr (Pressure switch extension lines)
( Electric fan and drier are not including! )

Electric Compressor Set for Auto AC Air Conditioning Car Truck Bus Boat Tractor Shop Automobile Aircon
Notice: Because,the international air shipping forbid to ship liquid,powder and batteries, If you purchased goods containing such items, we will not be putting them packing. Thank you for your support.


Kindly Reminder:

Regarding the issue of tariffs, Tariffs are not included in product prices and transportation costs.we will do our best to cooperate with you, but it is difficult for us to measure whether you need to pay import taxes. Hope you have a pleasant shopping experience.


Leave a message to tell us your Car model for confirmation.

Please contact us before leaving a neutral or negative feedback,We will try the best to solve the problem for you！
