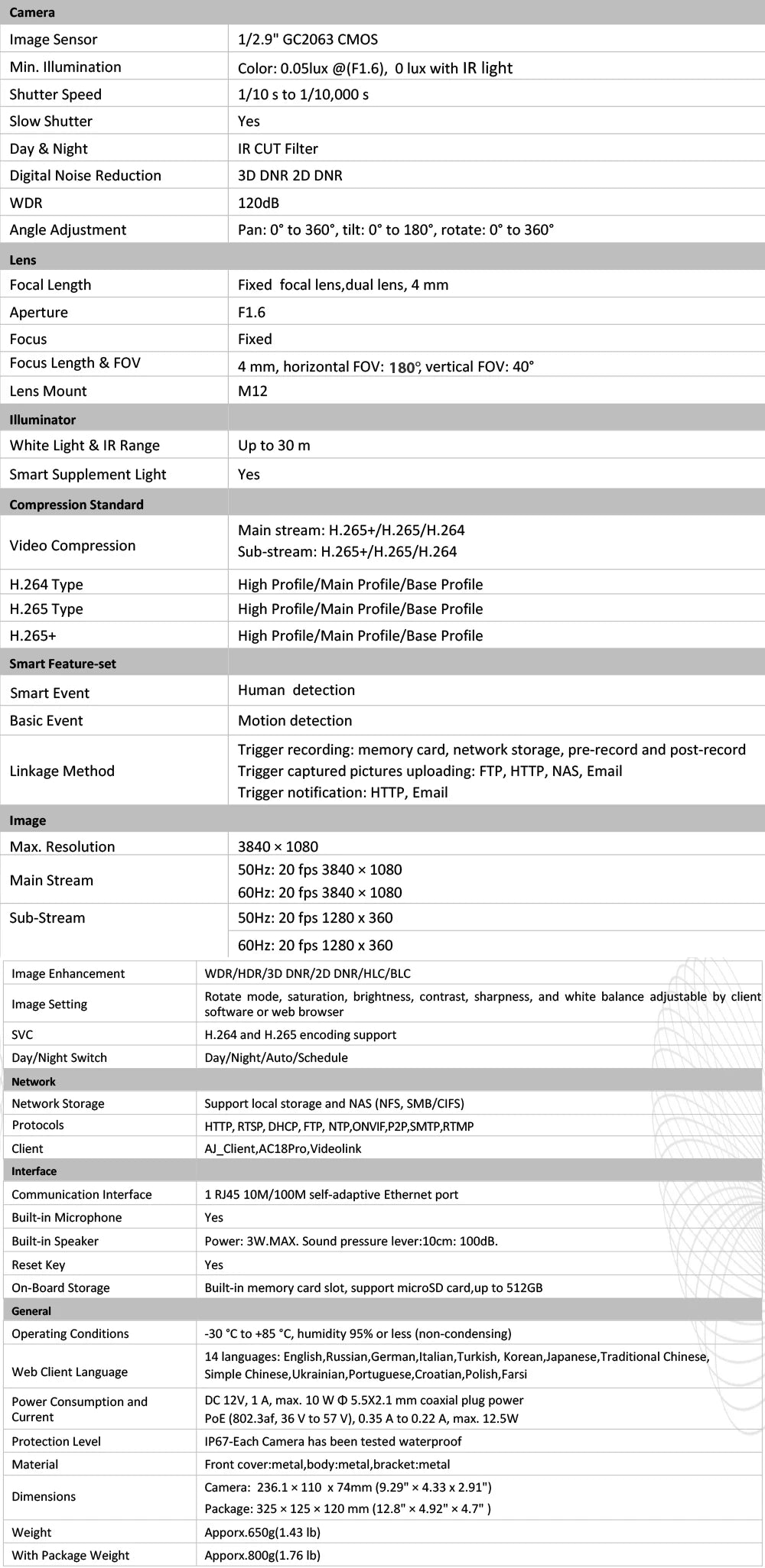

SPECIFICATIONS

AI Functions: Vehicle Detection

Alarm Type: telefon Alarm,Local Alarm

Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Aperture: F1.6

Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Audio Output: Two Way Audio

Basic Event: Motion detection

Brand Name: VIKYLIN

Built-in Microphone: Yes

Built-in Speaker: Power: 3W.MAX. Sound pressure lever:10cm: 100dB.

Bullet camera Material: Front cover:metal,body:metal,bracket:metal

Bullet camera Protection Level: IP67-Each Camera has been tested waterproof

Certification: CE,RoHS

Client: AJ_Client,AC18Pro,Videolink

Color: WHITE

Color Night Vision: Yes

Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Connectivity: IP/Network Wired

Day & Night: IR CUT Filter

Day/Night Switch: Day/Night/Auto/Schedule

Digital Noise Reduction: 3D DNR 2D DNR

Dimensions (L x W x D)(mm): 9.29" x 4.33 x 2.91"

Focal Length: Fixed focal lens,dual lens, 4 mm

Focus: Fixed

Focus Length & FOV: 4 mm, horizontal FOV: 180°, vertical FOV: 40°

H.264 Type: High Profile/Main Profile/Base Profile

H.265 Type: High Profile/Main Profile/Base Profile

H.265+: High Profile/Main Profile/Base Profile

High Definition: 4.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP66

IR Distance(m): Warm Light IR Range Up to 30 m (98.43 ft) (IR)

Image Enhancement: WDR/HDR/3D DNR/2D DNR/HLC/BLC

Image Sensor: 1/2.9" GC2063 CMOS

Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

Installation: Ceiling,Vertical Pole Mount,Pendant Mount

Lens (mm): 4mm

Lens Mount: M12

Lens Quantity: Dual Lens

Linkage Method: Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, Email

Main Stream: 50Hz: 20 fps 3840 x 1080 60Hz: 20 fps 3840 x1080

Max. Resolution: 3840 x 1080

Megapixels: 4MP

Min. Illumination: Color: 0.05lux @(F1.6), 0 lux with IR light

Minimum Illumination(Lux): 0.05lux @(F1.6)

Model Number: PG2046IRCS-P

Movement Range(Pan): Other

Network Storage: Support local storage and NAS (NFS, SMB/CIFS)

On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 512 GB

Operating Conditions: -30 °C to +85 °C, humidity 95% or less (non-condensing)

Optical Zoom: None

Origin: Mainland China

Power Consumption and Current: DC 12V, 1 A, max. 10 W ; 5.5X2.1 mm coaxial plug power PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W

Power Consumption(W): Max. 10.2 W

Power Supply: With Poe

Power Supply(V): 12V DC

Protocols: HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P,SMTP,RTMP

Reset Key: Yes

SVC: H.264 and H.265 encoding support

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Metal

Shutter Speed: 1/10 s to 1/10,000 s

Slow Shutter: Yes

Smart Event: Human detection

Smart Supplement Light: Yes

Special Features: Waterproof / Weatherproof

Style: Bullet Camera

Sub-Stream: 50Hz: 20 fps 1280 x 360 60Hz: 20 fps 1280 x 360

Supported Mobile Systems: Windows Mobile,Android,IOS

Supported Operating Systems: Windows 7,Mac OS,Windows 8,Windows 10

TF Card: None

Turret camera Material: Front cover:metal,body:plastic,bracket:plastic

Turret camera Protection Level: IP66-Each Camera has been tested waterproof

Video Compression: Main stream: H.265+/H.265/H.264 Sub-stream: H.265+/H.265/H.264

Video Compression Format: H.265

Viewing Angle : 170°

WDR: 120dB

Web Client Language: 14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese, Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi

White Light & IR Range: Up to 30 m

Zoom: None

Zoom type: None

application scenario1: camera security poe

application scenario2: security protection

application scenario3: cctv camera outdoor

application scenario4: camera poe

application scenario5: Home CCTV

application scenario6: Outdoor surveillance camera

application scenario7: 180 outdoor camera

is_customized: Yes

Vikylin Panoramic Security Camera Full Color 4MP Dual Lens 4MM IP Camera For Hikvision Compatible POE CCTV Surveillance Outdoor

ⓞ Purchase Notes.

1.This product is usually sent without logo camera by default, but still be able to enjoy our warranty service, if you want to receive the camera with logo, please tell us from the buyer's session!

2.Dual lens 4mp camera is 4mm lens, so the best monitoring distance should be more than 6 meters, within 6 meters of the monitoring screen will appear splicing disharmony.

ⓞ About camera

1.What is"Hikvision Protocl"?
Hikvision products all have Hikvision Protocl and it support Hikvision camera plug and play, make it easy to be install with Hikvision NVR.


2.What is"Hikvision Compatibile"?

It mean this camera support plug & play with Hikvision NVR(Also Hikvision software).

You don't need to manual setting camera IP and password etc...

Just plug in and camera will work!

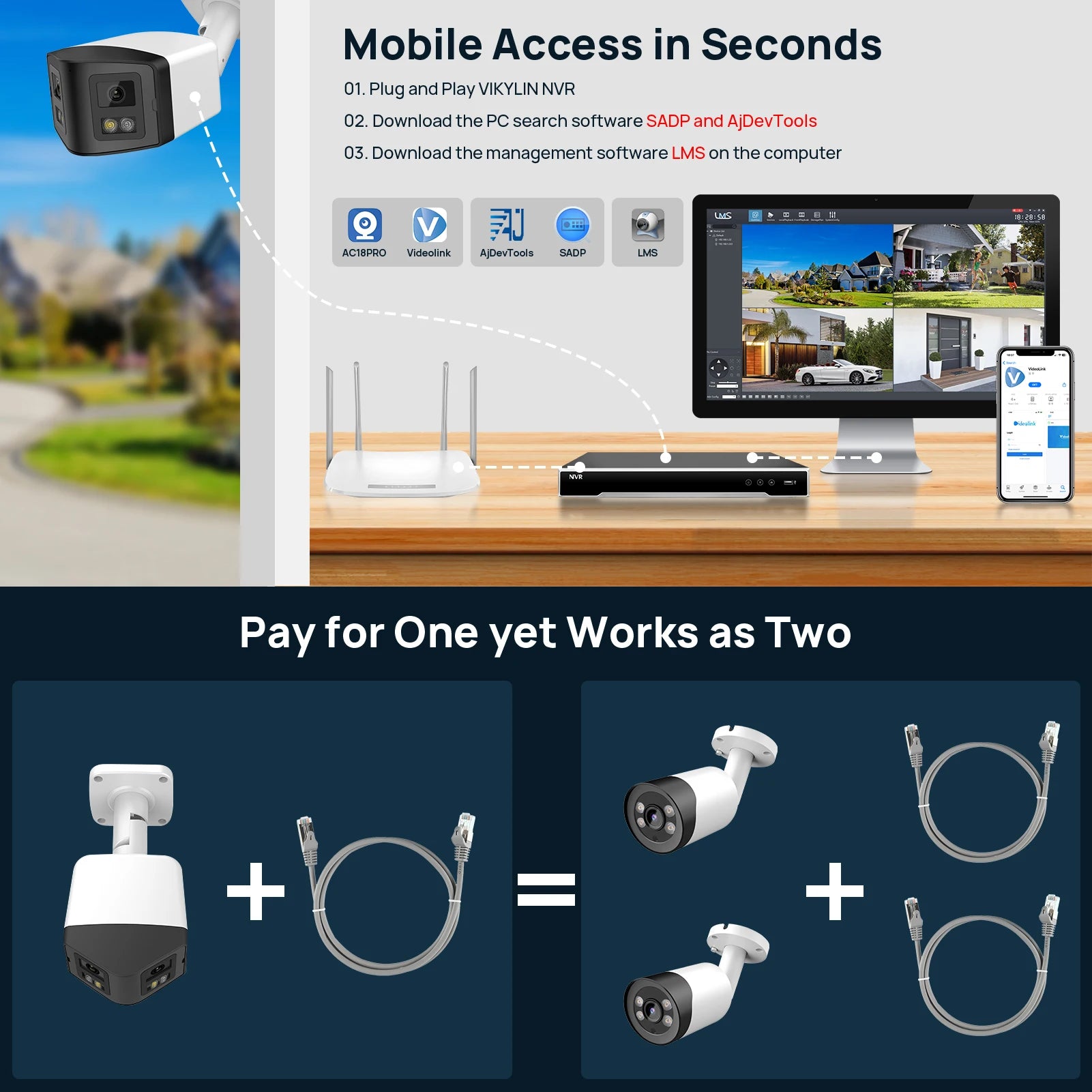

3. When I installed the camera, How Can I find this camera?

download software:AJDevToolsRecommend

http://www.anjvision.com:8021/client/AjDevTools_V5.2.1_20210108.exe

Or SADP https://www.hikvision.com/content/dam/hikvision/en/support/download/tools/sadp/for-windows/v3-0-2-4/firmware/SADP-Tool-for-Window.zip

use this software search the camera.



username: admin

password: 123456

4MP Dual illumination Panoramic Network Camera

>High quality imaging with 4 MP resolution

>One image that presents all the scenes covered by the camera

>24/7 colorful imaging

>Efficient H.265+ compression technology

>Clear imaging against strong back light due to 120 dB WDR technology

>Motion Detection

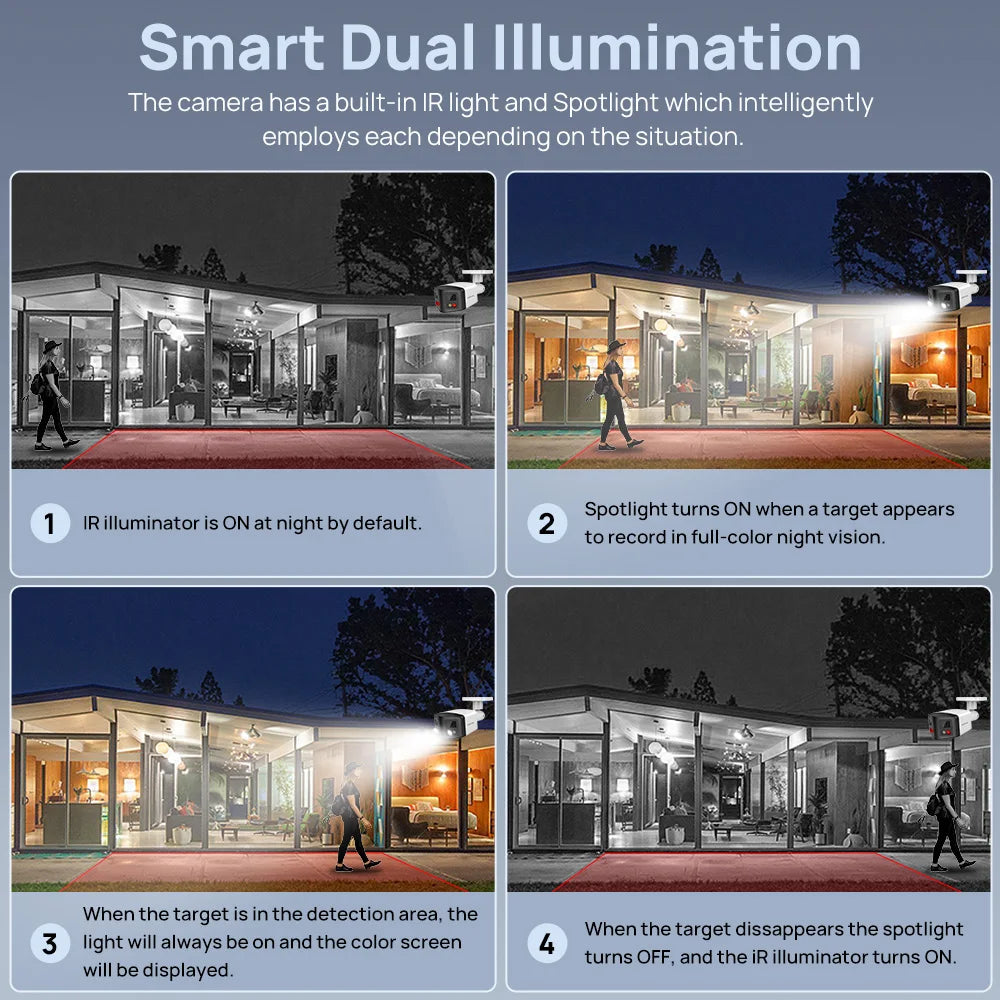

>Smart Dual Light, with 3 light mode

>Water and dust resistant (IP67)

Tips: Click on the picture to enlarge

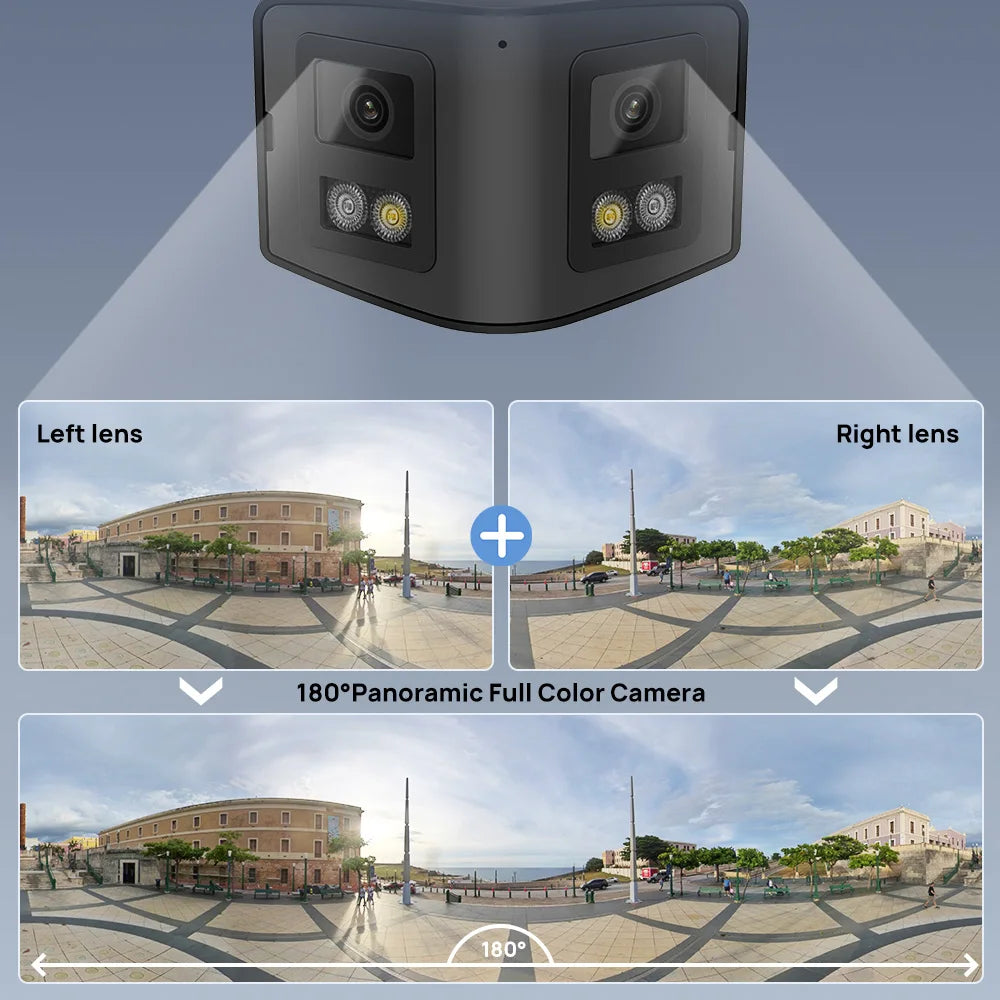

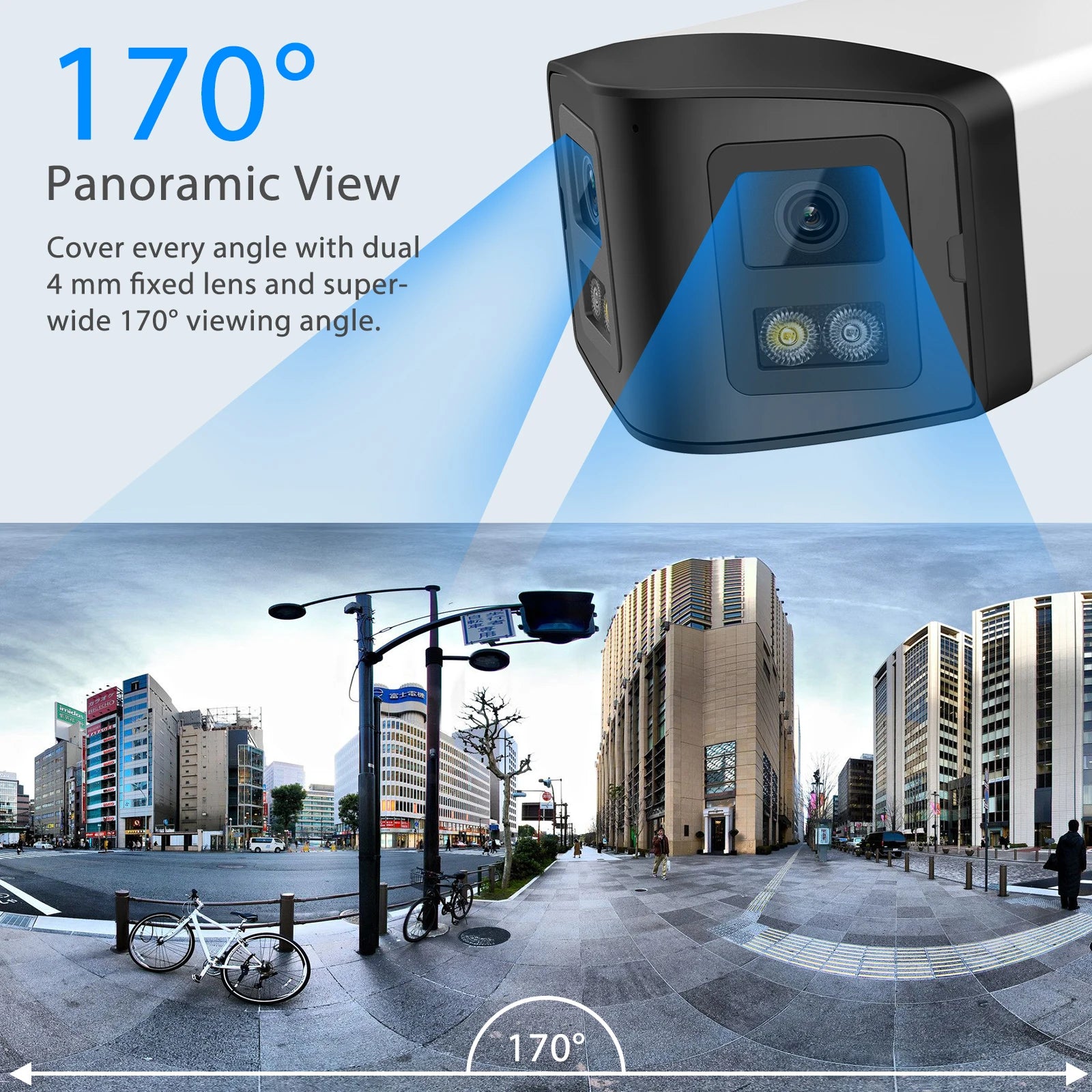

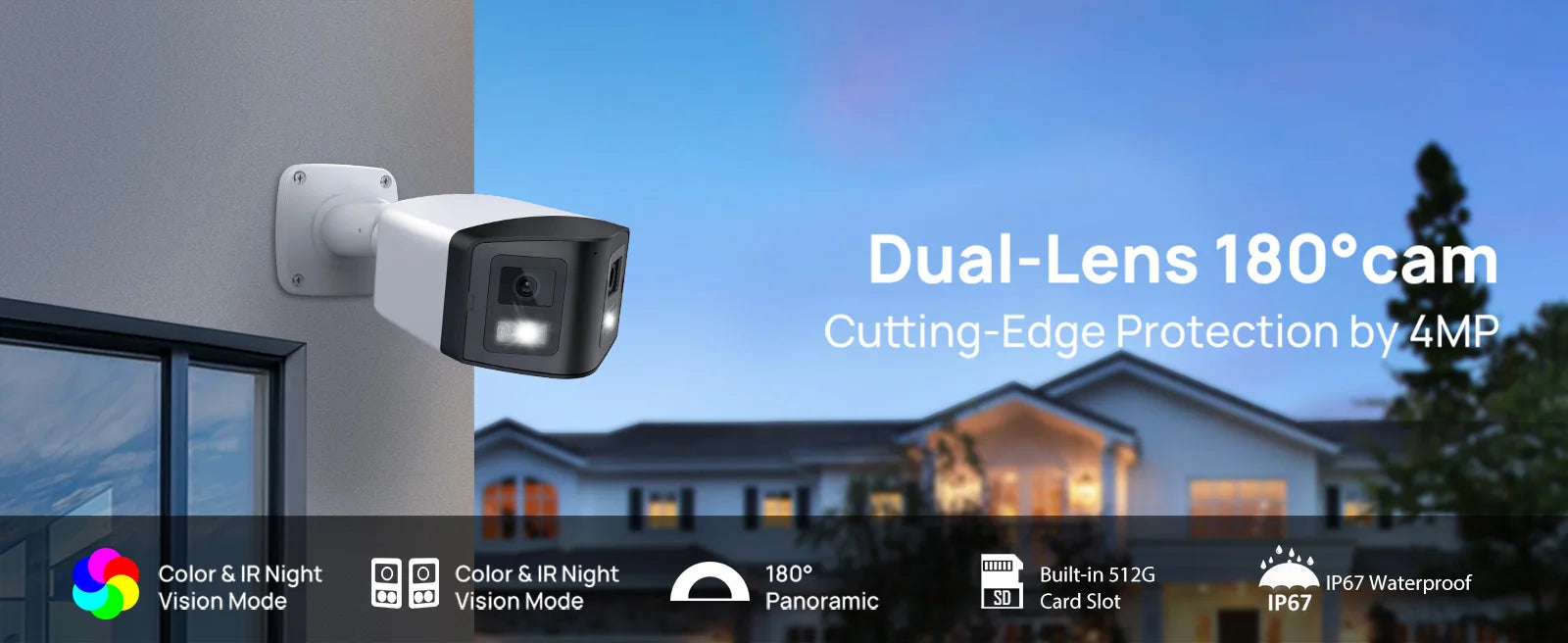

170 wide viewing & 4MP HD Resolution

Thanks to the dual lenses, this POE IP camera can get a 170 wide viewing, you can see more scene around your house. Also the camera is with 3840x1080 ，4MP high HD resolution, you can see more clearer details.

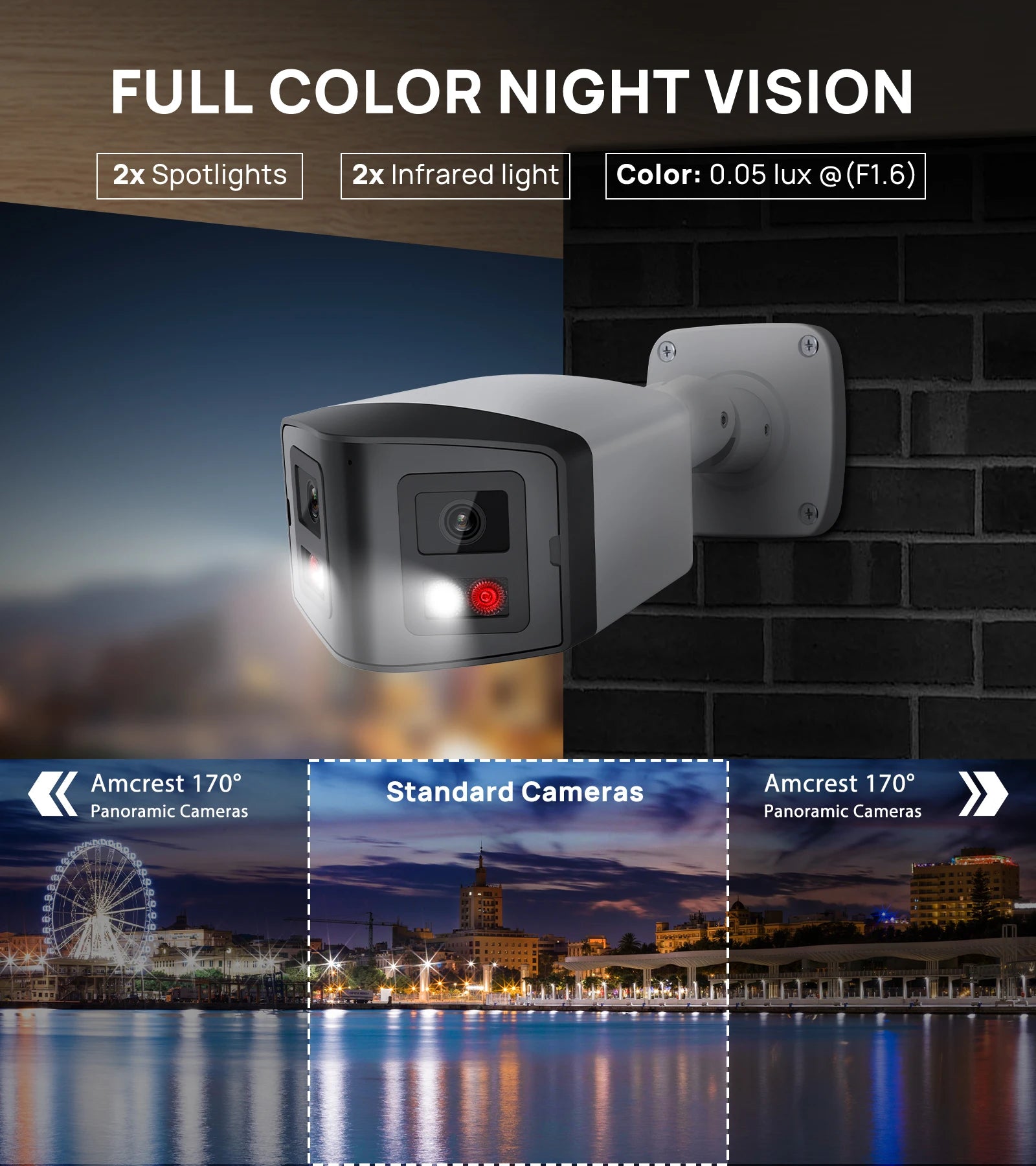

Full Color Night Vision

Motion Detection

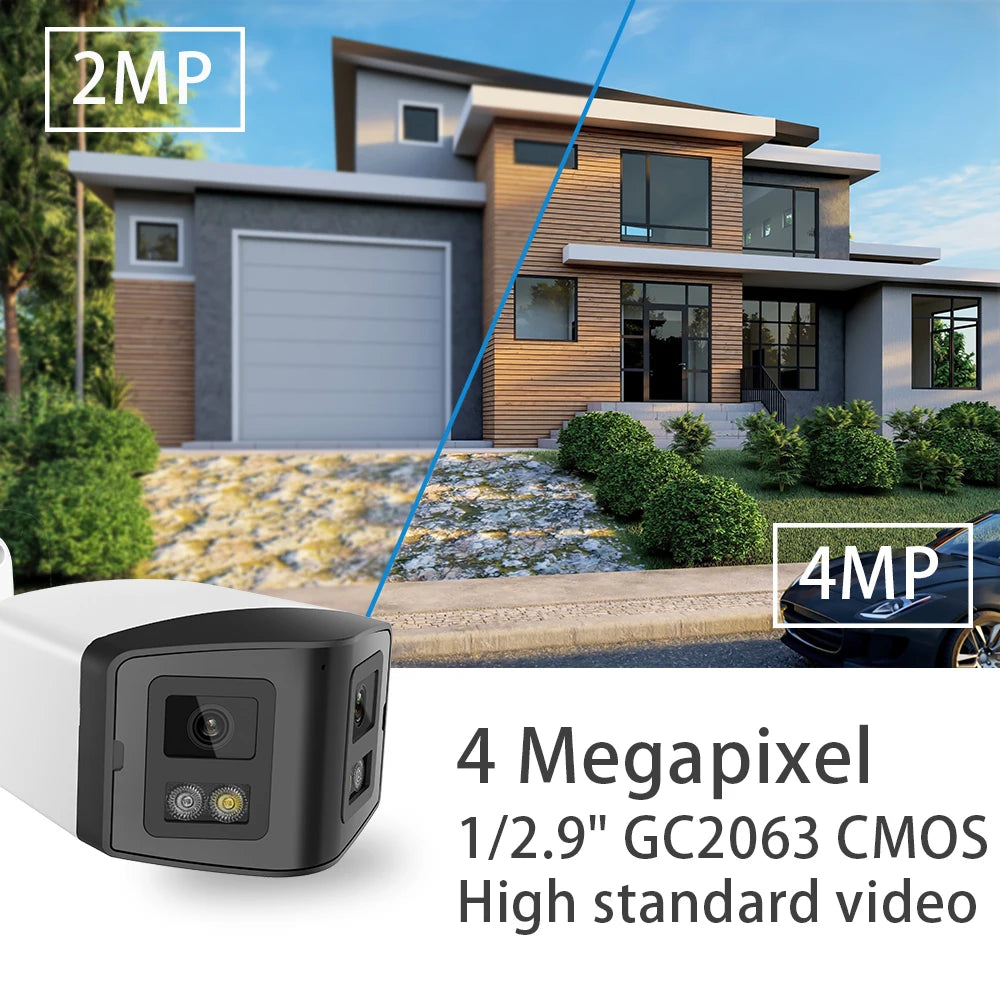

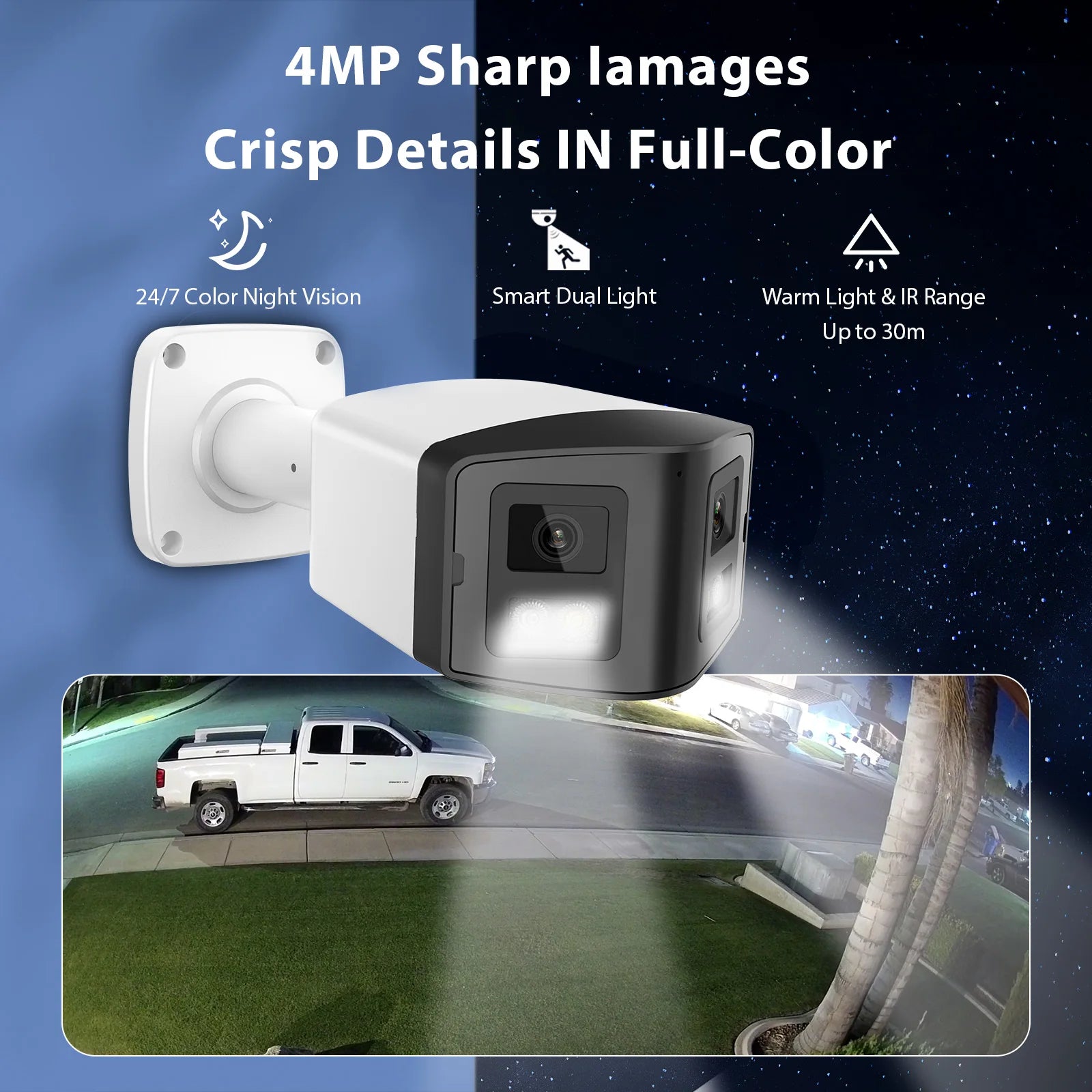

4MP High Resolution

Two-way Audio, Talk Like You're Here

Built-in microphone & speaker allow you to listen and talk to whoever the camera catches in real time, say "hello" to families and friends or warning to suspicious strangers.

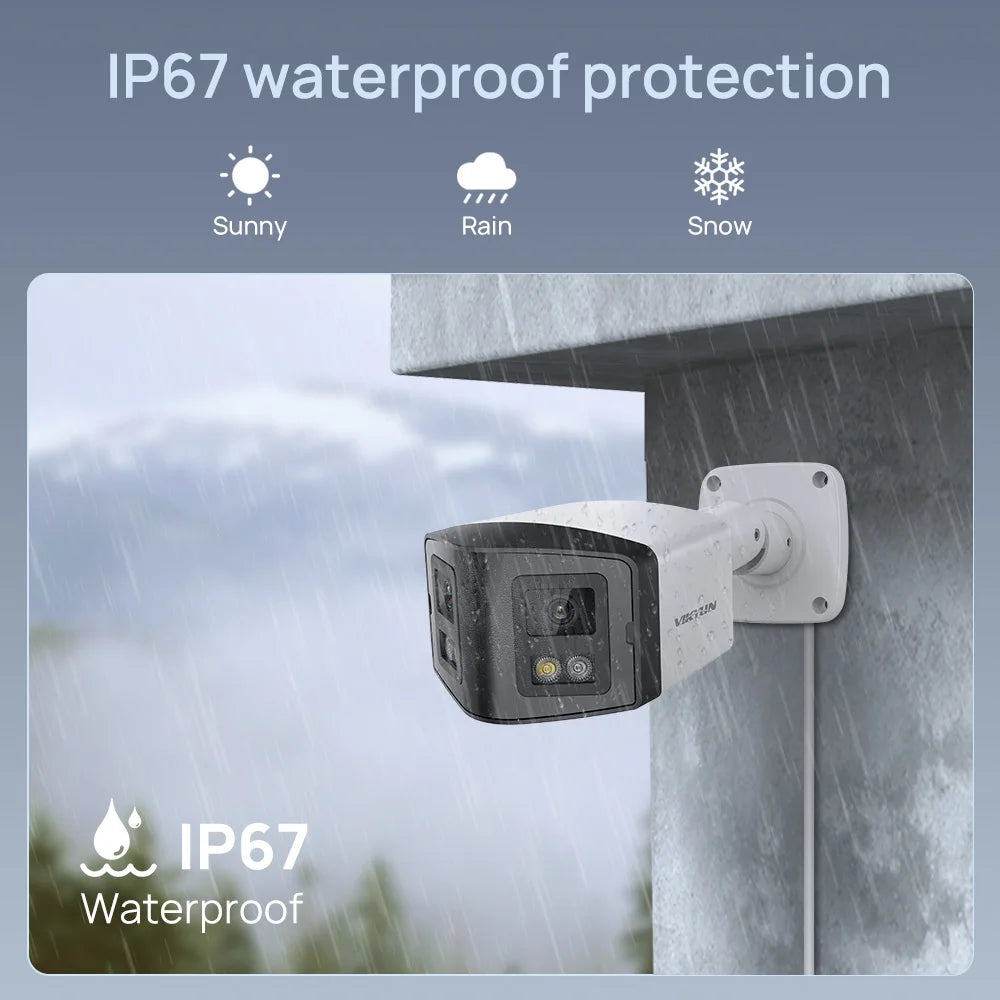

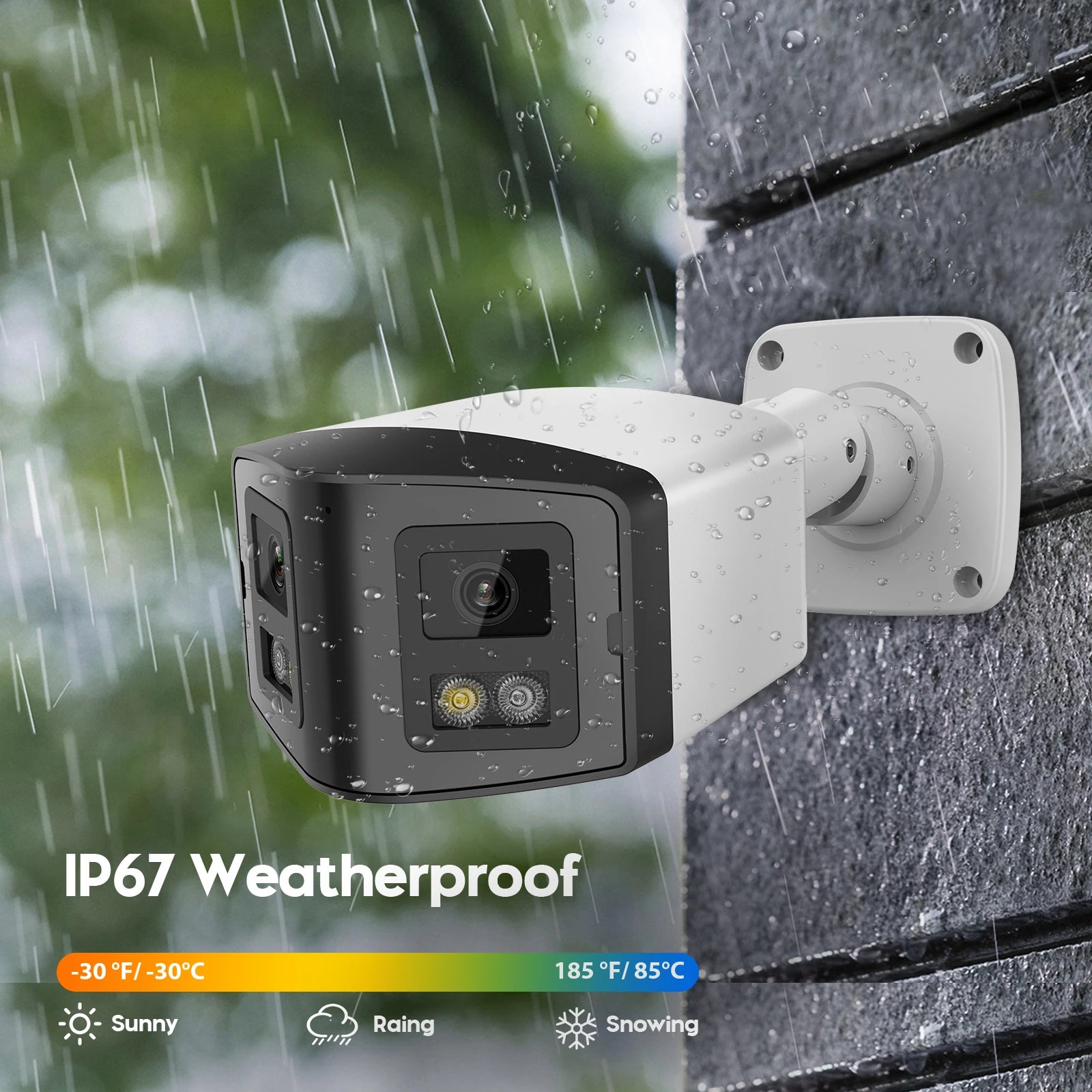

Stay IP67 Weatherproof

Encased in the rugged housing, our PoE cam is IP67 waterproof and can withstand harsh weather conditions. Indoors and outdoors, it always works so well to protect your home.

Bullet camera Protection Level：IP67-Each Camera has been tested waterproof

Turret camera Protection Level：IP66-Each Camera has been tested waterproof

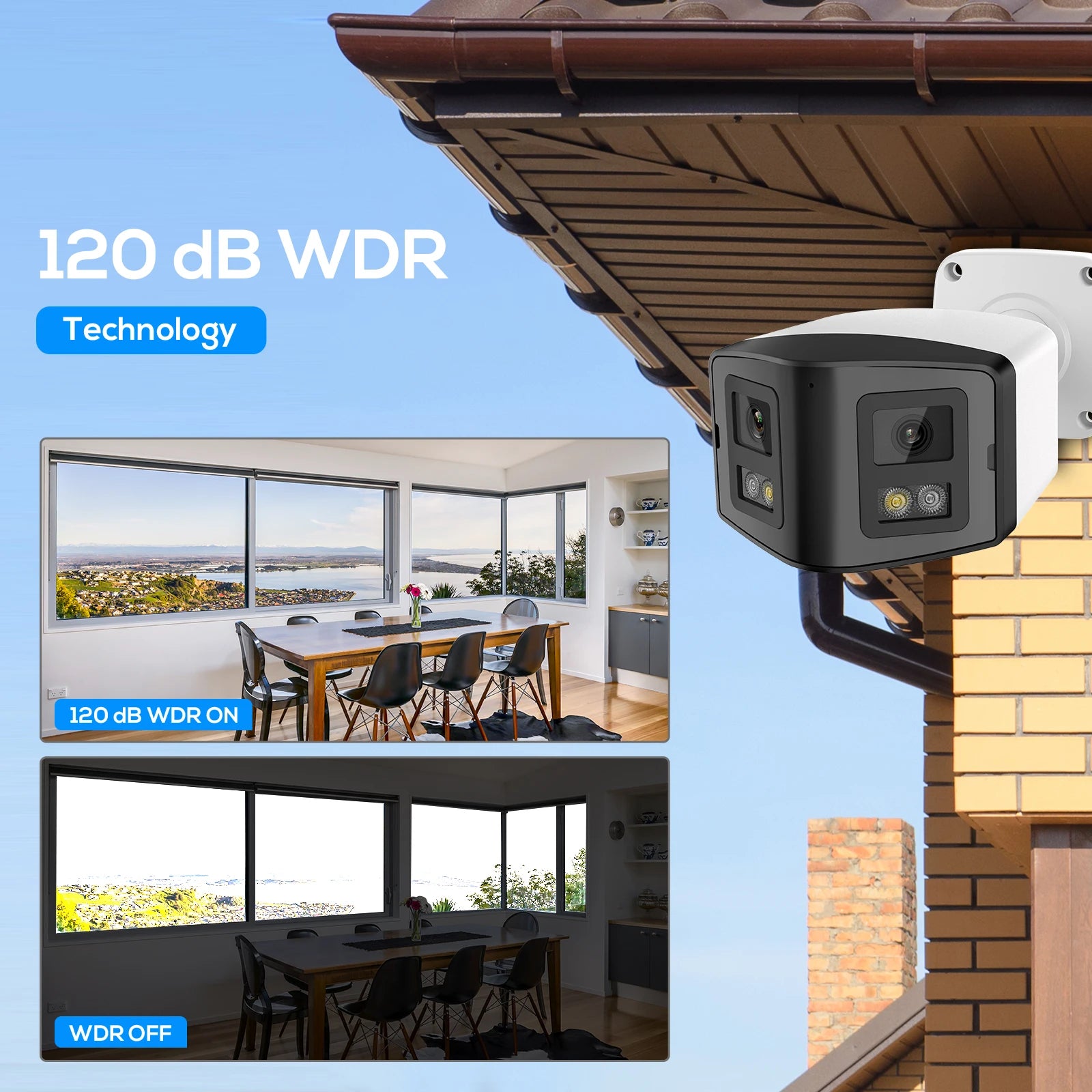

120dB TrueWDR Technology

Capturing clear and realistic images even underthe most demanding lighting conditions. The images will not be dimmed or destroyed by shadows ,reflection and sunlight.

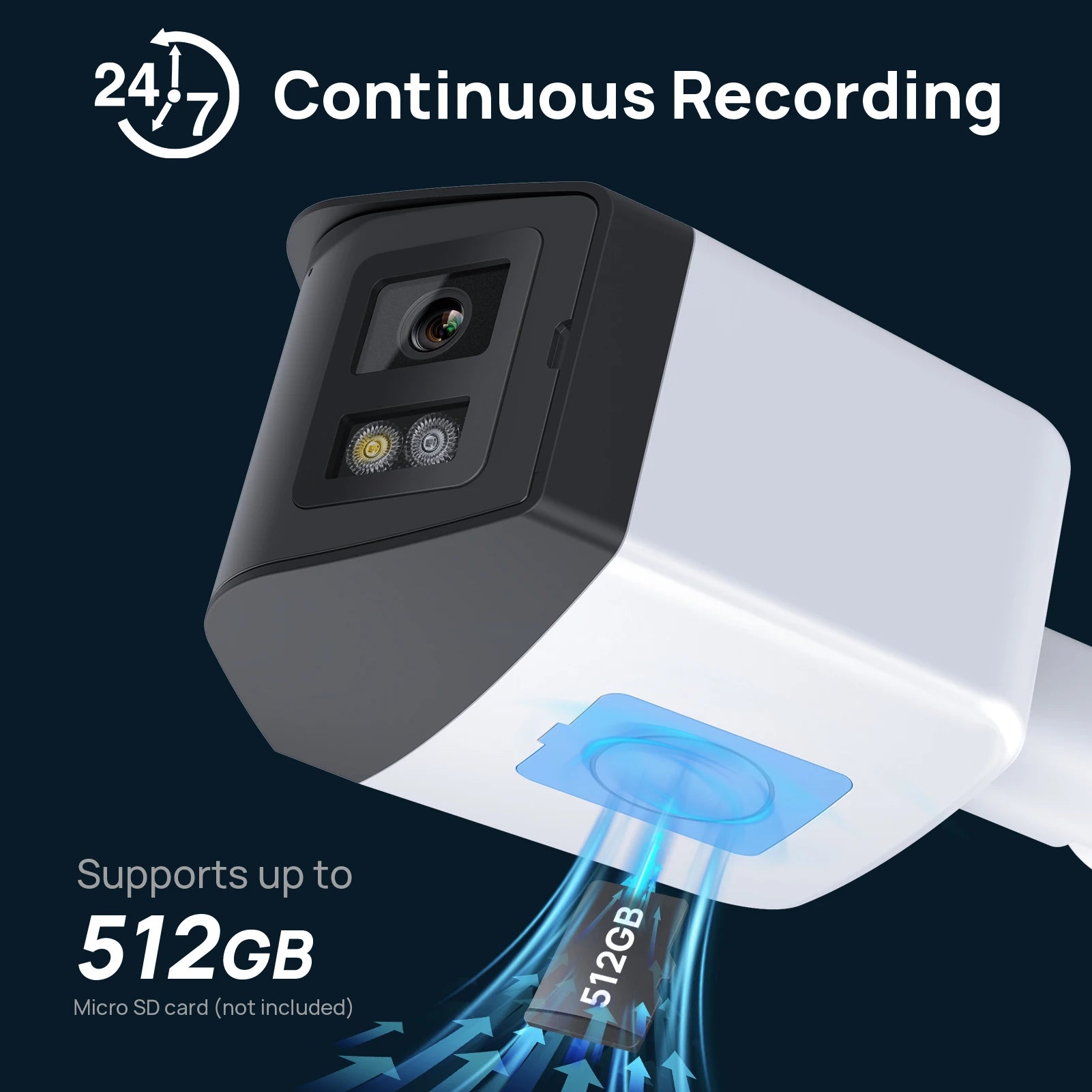

Support H.265+ Coding Format+512GB SD Card support

This smart IP camera supports 24/7 continuous, motion-triggered, or scheduled recordings.
All the videos can be saved to the micro SD card, NVR or FTP server.
Choose a way you like and enjoy customized security.

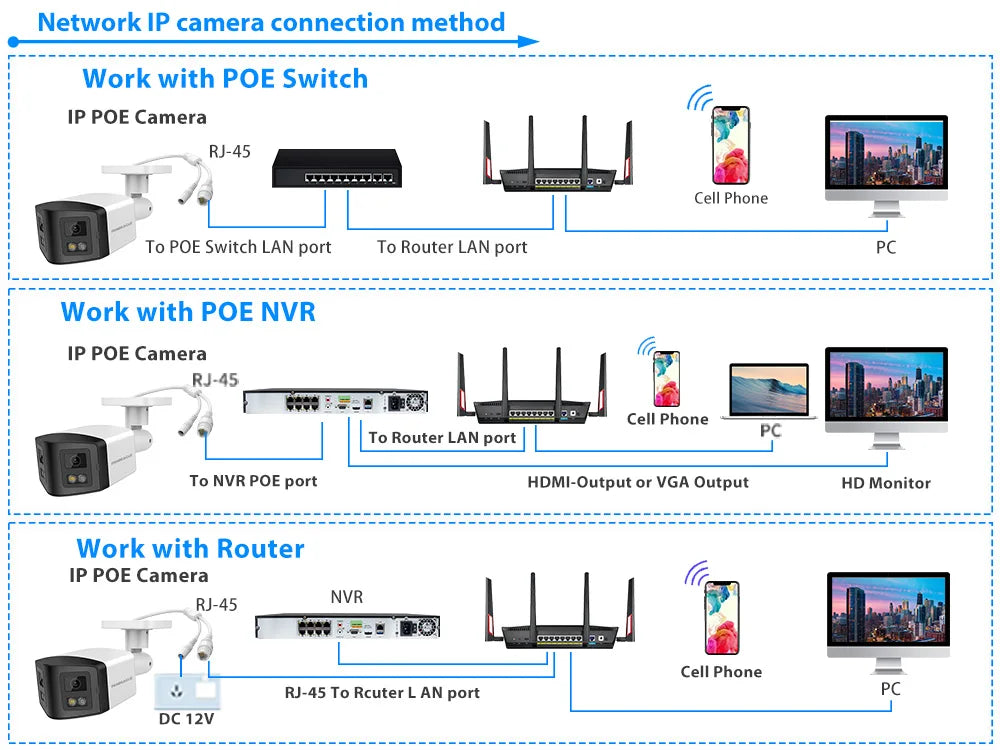

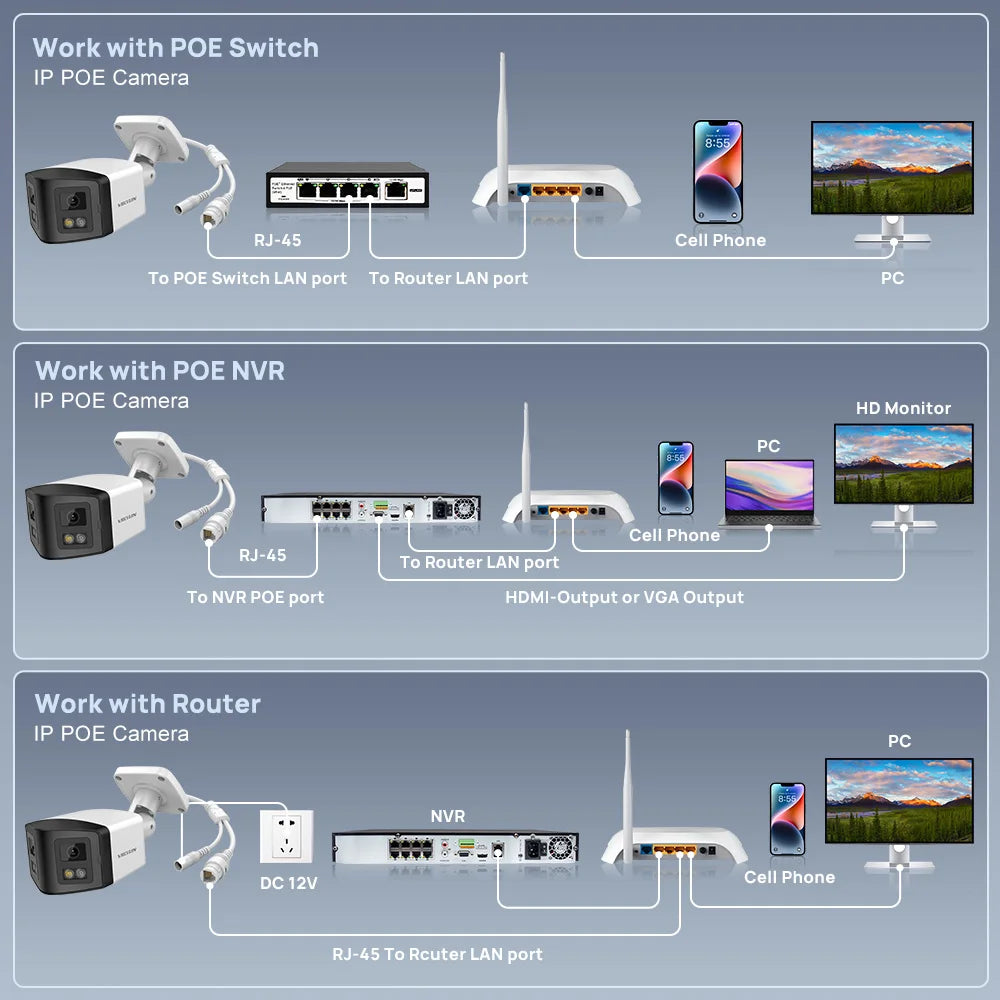

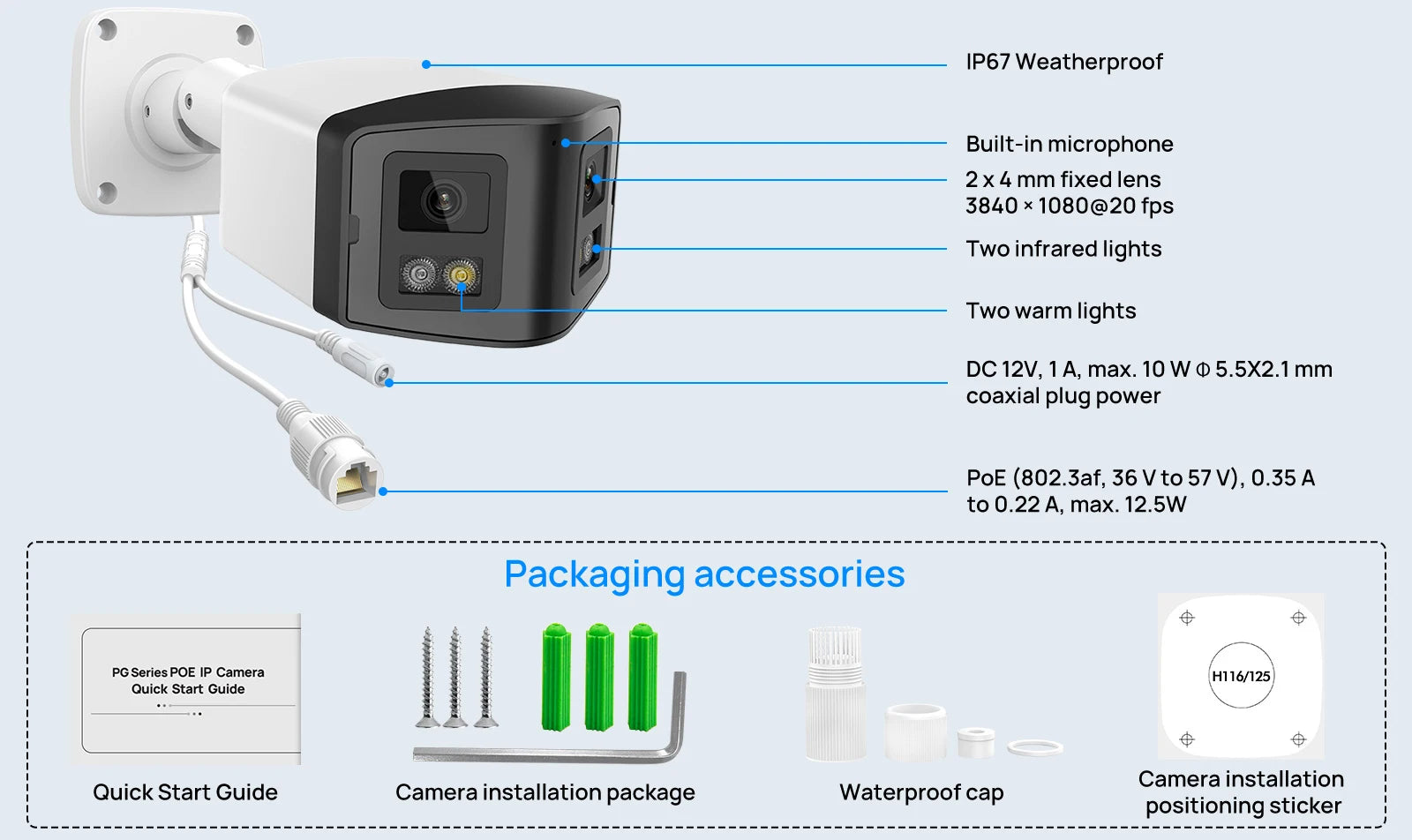

Get 2 in 1, PoE Easy to connect

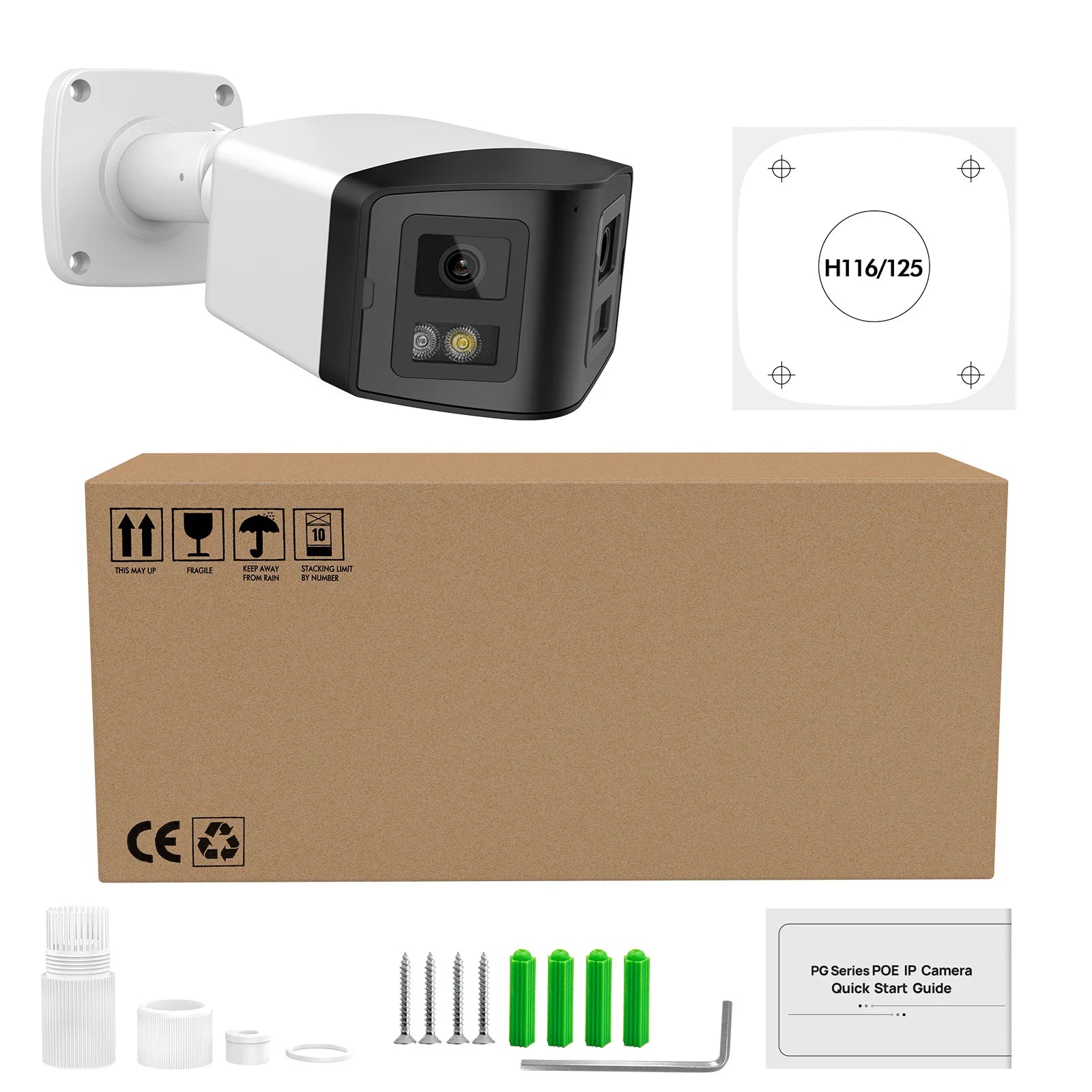

1. Camera*1

2.Manual *1

3.Installation and positioning drawing *1

4.Screws & Expansion Sleeves *4

5.Inner angle wrench*1

6.Waterproof hoop *1

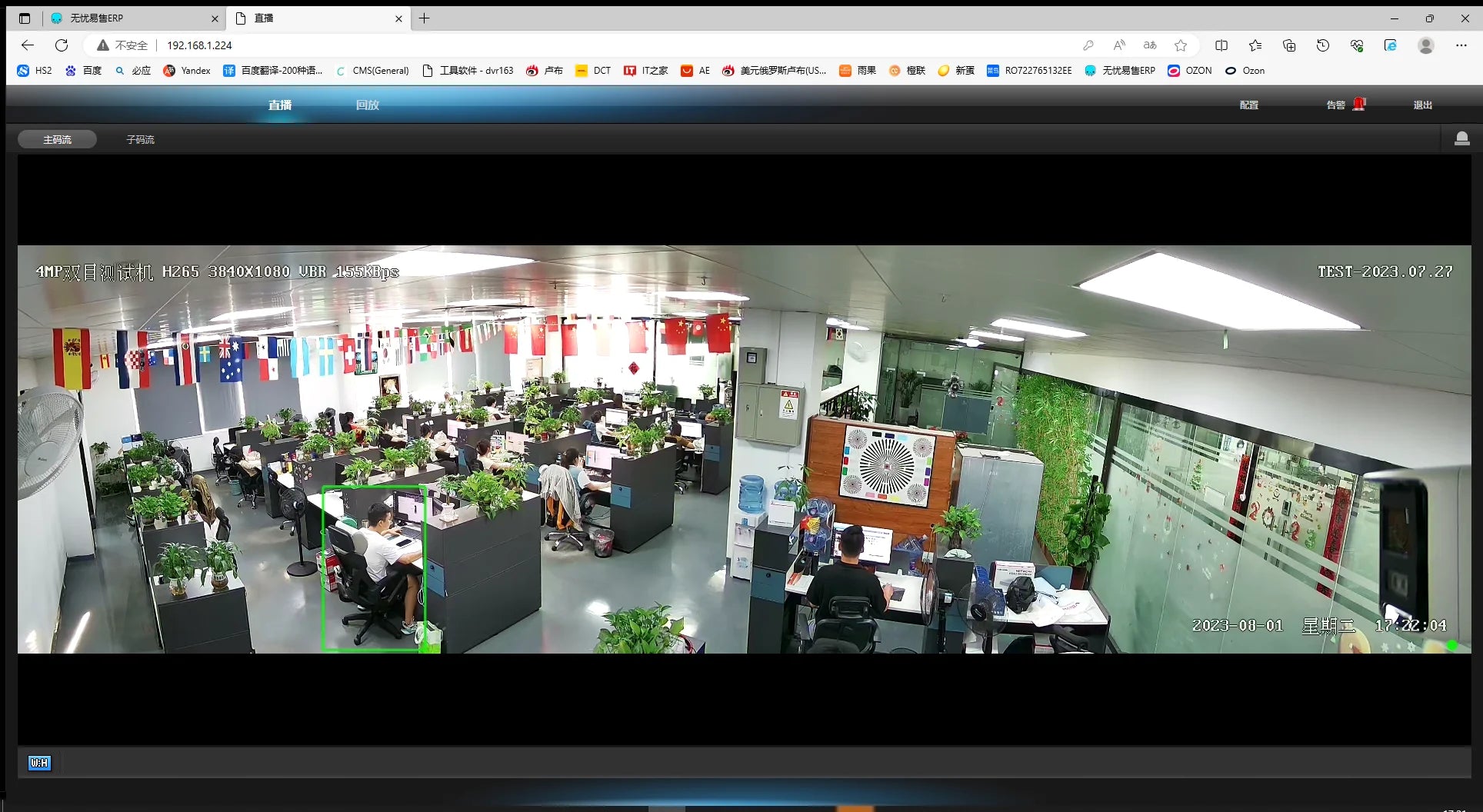

Client Show

FAQ:

1. What model is the camera? Will it work with my hikvision NVR?

This Vikylin camera is a hikvision compatible model, compatible with hikvision NVR version 4.0 and below, plug and play, no setup required.

2. What is the default IP address of the camera? How do I change it to my home network IP address?

The default IP address of the camera is 192.168.1.110, the camera is installed with DHCP enabled by default, it will automatically get the same IP address as your home network.

3. What is the camera's password? If I forget the password, how do I reset it?

Camera default username admin, password 123456, if you forget the password, you can click on the corresponding camera through the search tool to restore the factory settings to reset the password.

4.Which app should I use to view my camera? How do I add a camera?

The mobile client of the camera is videolink, and you can add the camera by scanning the QR code after turning on P2P on the web side of the camera.

5.Why can't I open the default IP address 192.168.1.110 through browser?

The camera works in DHCP mode by default, it will get the IP settings from the router automatically. Please install the IP search tool (AJdevtools) to find the ip address of the camera. If there is no router in the LAN, the IP address of the camera is 192.168.0.123 (it is recommended to use a browser with IE kernel to access the web side of the camera)

6. Why the NVR does not display images after adding IP cameras?

1. Please select the correct protocol and enter the correct user name and password when adding the camera.

2. Make sure the NVR and IP camera are on the same IP subnet (e.g. NVR:192.168.1 .x, IP camera:192.168.1.y).

3. If the NVR does not support H.265, please try to change the camera encoding mode to H.264.
