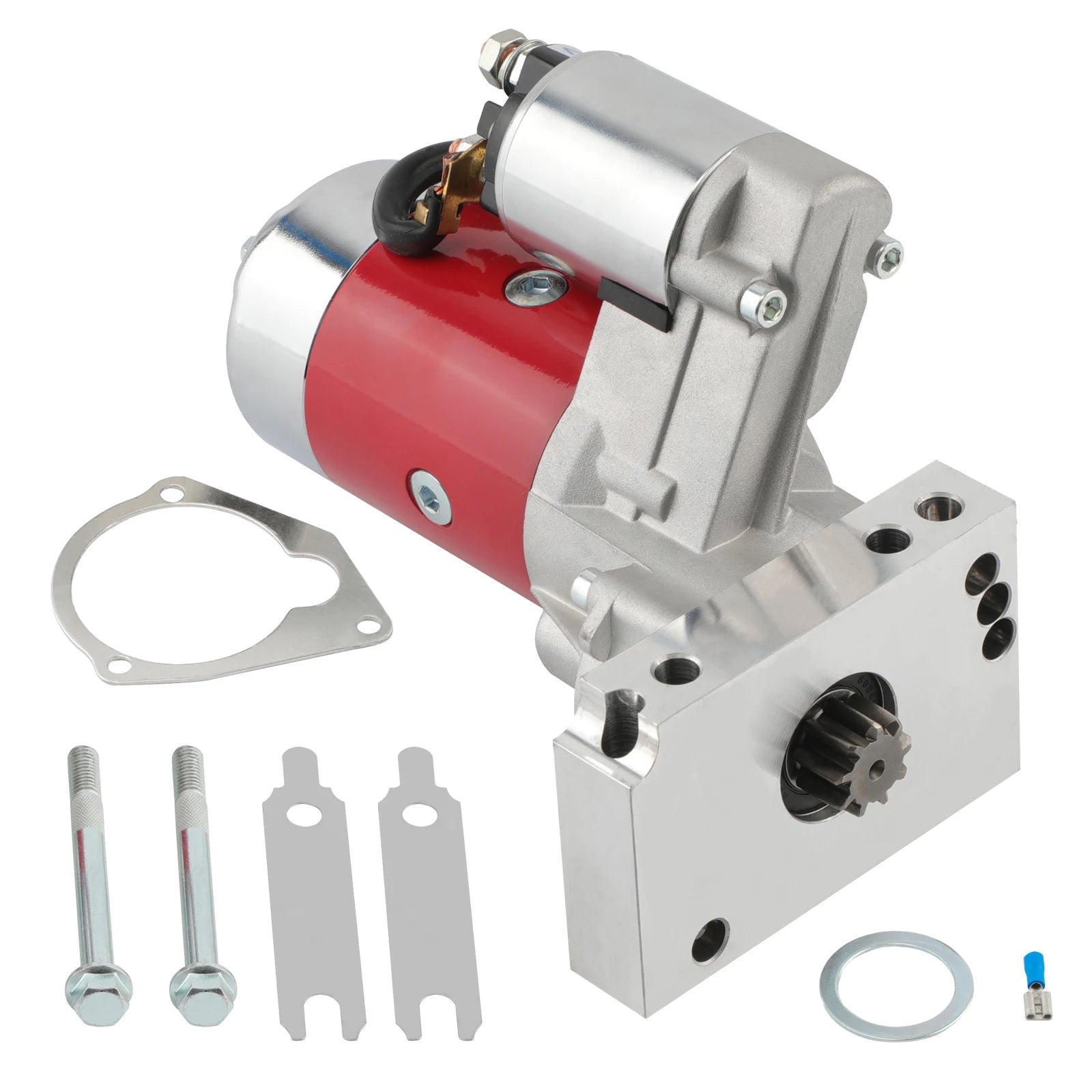

700HP Small & Big Block for CHEVY V8 Mini Starter Motor Red 3HP 305 350 454 18493

$216.26 USD
$216.26 USD $245.75 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
In stock (36 units), ready to be shipped

SPECIFICATIONS

Brand Name: MXR

Country/Region of Manufacture: us

Hign-concerned Chemical: None

Interchange Part Number: 18493

Item Height: 8cm

Item Length: 20cm

Item Weight: 6kg

Item Width: 15cm

Manufacturer Part Number: 18493

Material: For CHEVY starter motor

Origin: Mainland China

Other Part Number: 18493

Placement on Vehicle: Starter Motor

Special Features: Starter motor

Starter for Chevy   High Torque 153 or 168 Tooth Flywheel


Application:

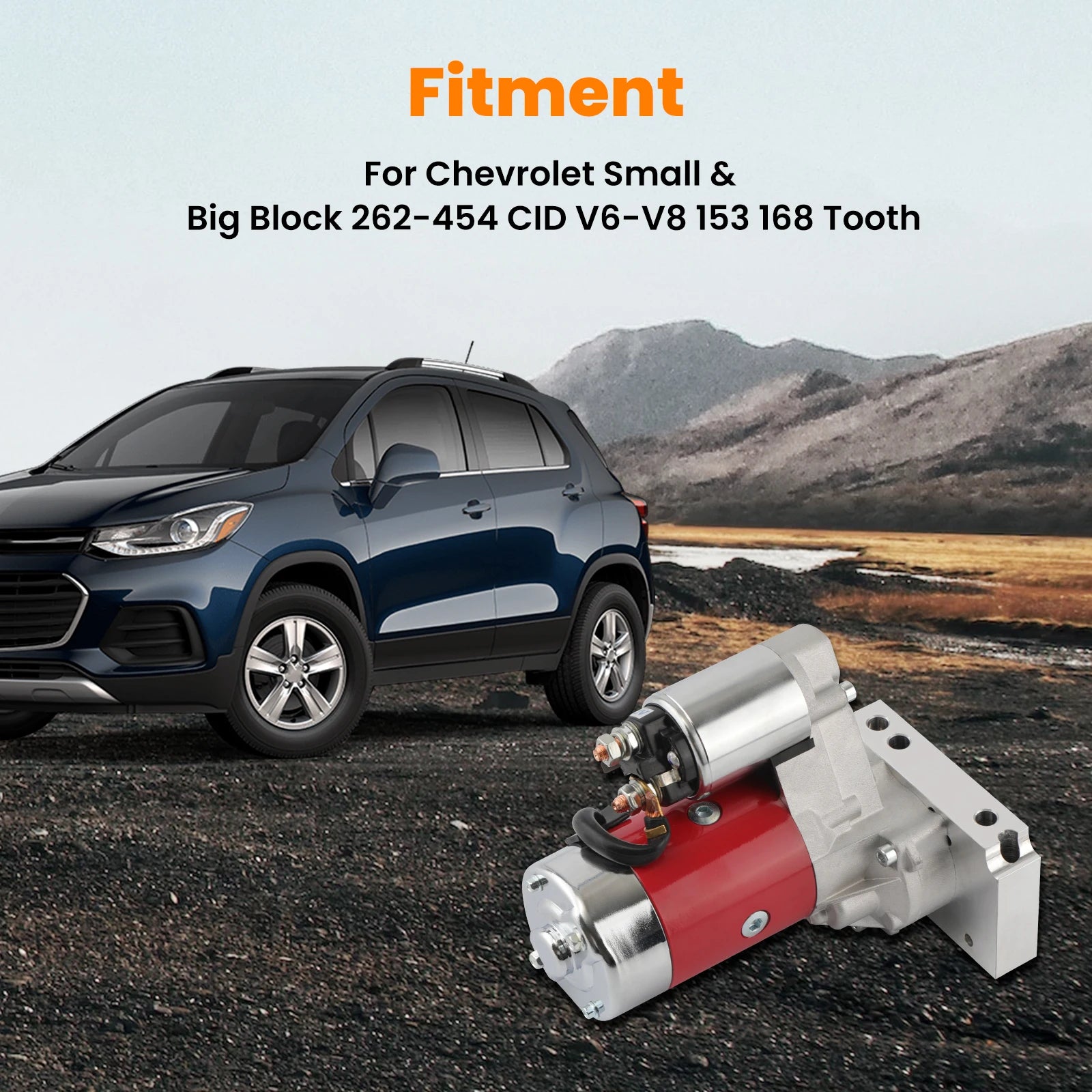

for Chevrolet Small & Big Block 262-454 CID V6-V8, w/ AT or MT, w/ 153-Tooth or 168-Tooth Flywheel (up to 18:1 Compression Ratio)

for GM High Performance Starters, High Performance Starter Motor

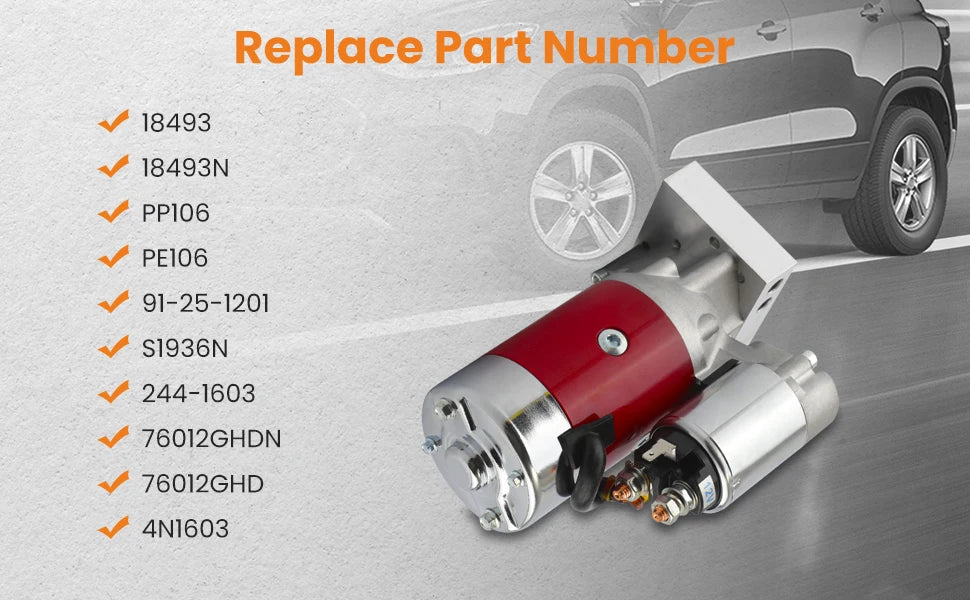

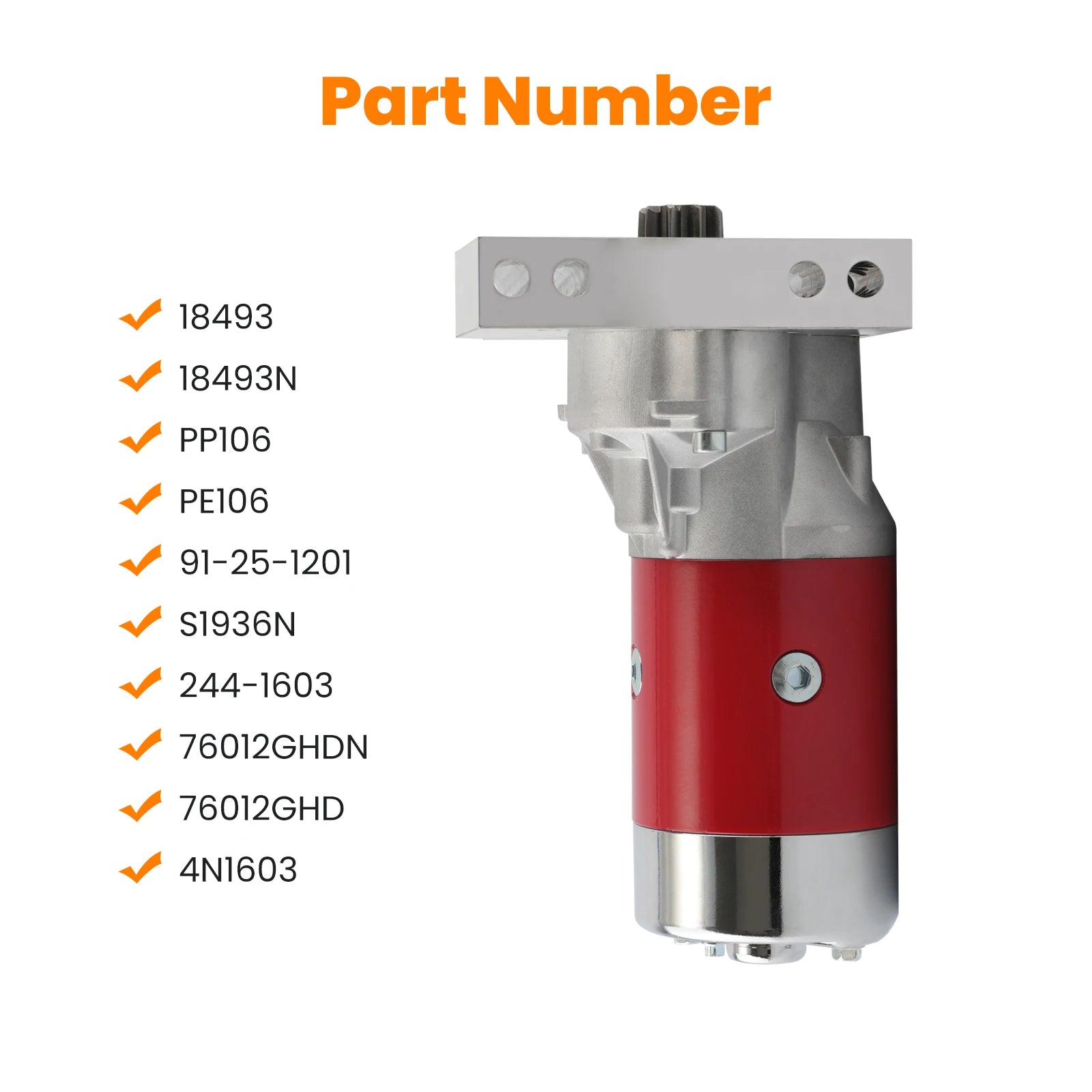

Part Number:
18493N, PP106, PE106, 91-25-1201, 18493,



Specifications:
Color: Red
Material: Aluminum
Voltage: 12
Type: 3HP
Tooth Flywheel: 153 168
Number of Teeth: 9
Power: 2kW / 2.68HP
Rotation: Clockwise

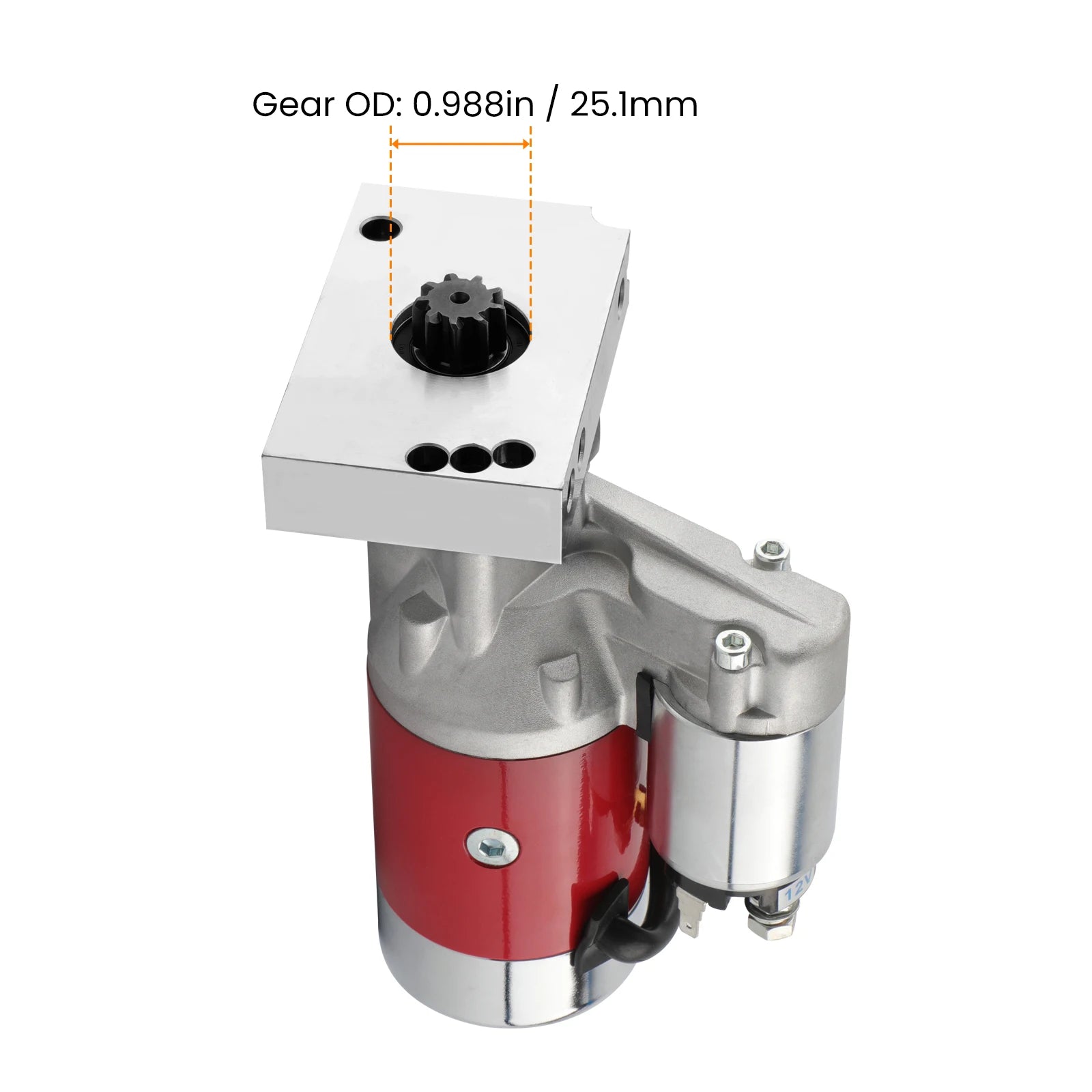

Gear OD: 0.988in / 25.1mm
Version: High Torque Version/3-Clocking Positions
Mtg Ear 1 Hole: 10mm Unthreaded
Mtg Ear 2 Hole: 10mm Unthreaded
Mtg Ear 3 Hole: 10mm Unthreaded
Mtg Ear 4 Hole: 10mm Unthreaded

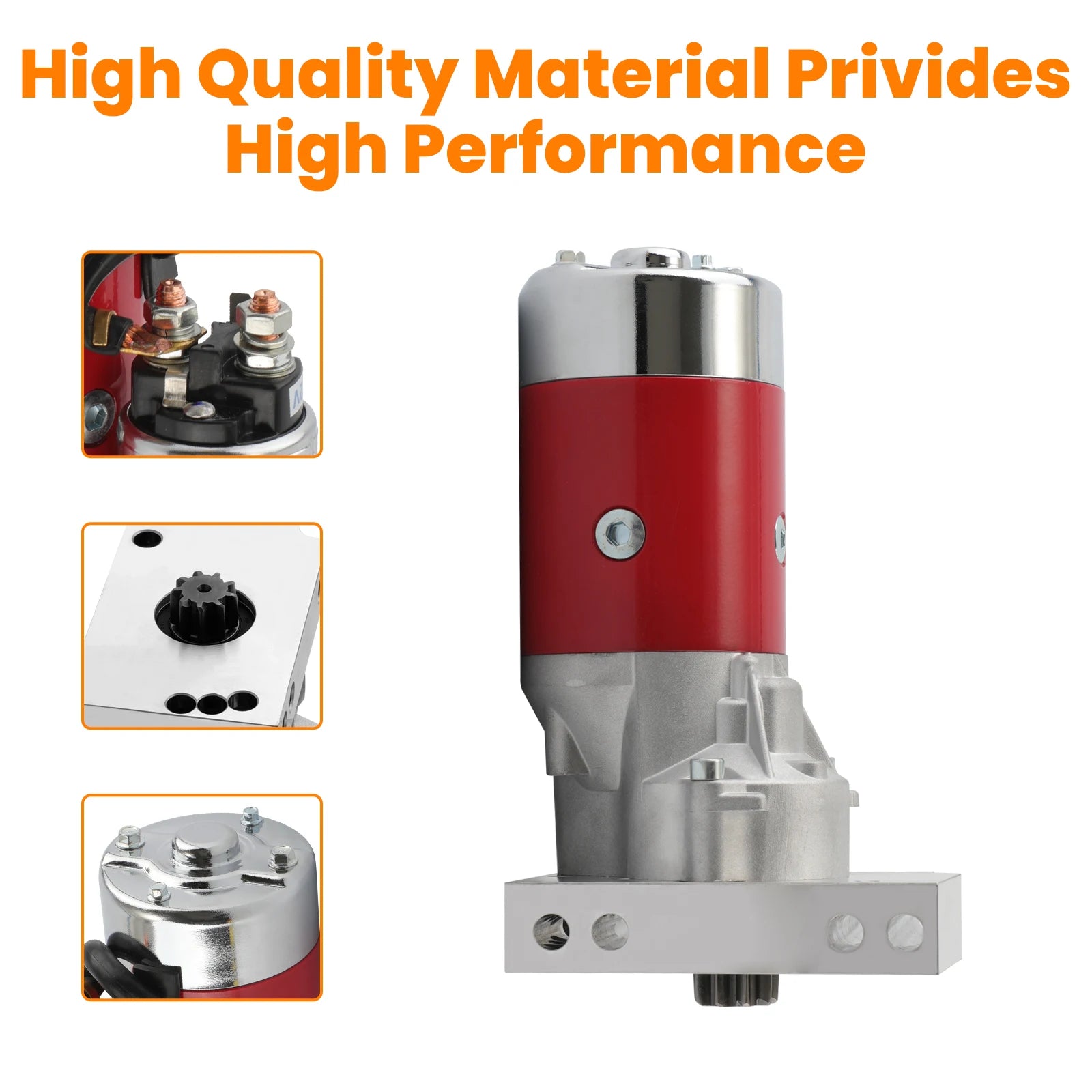

Feature:

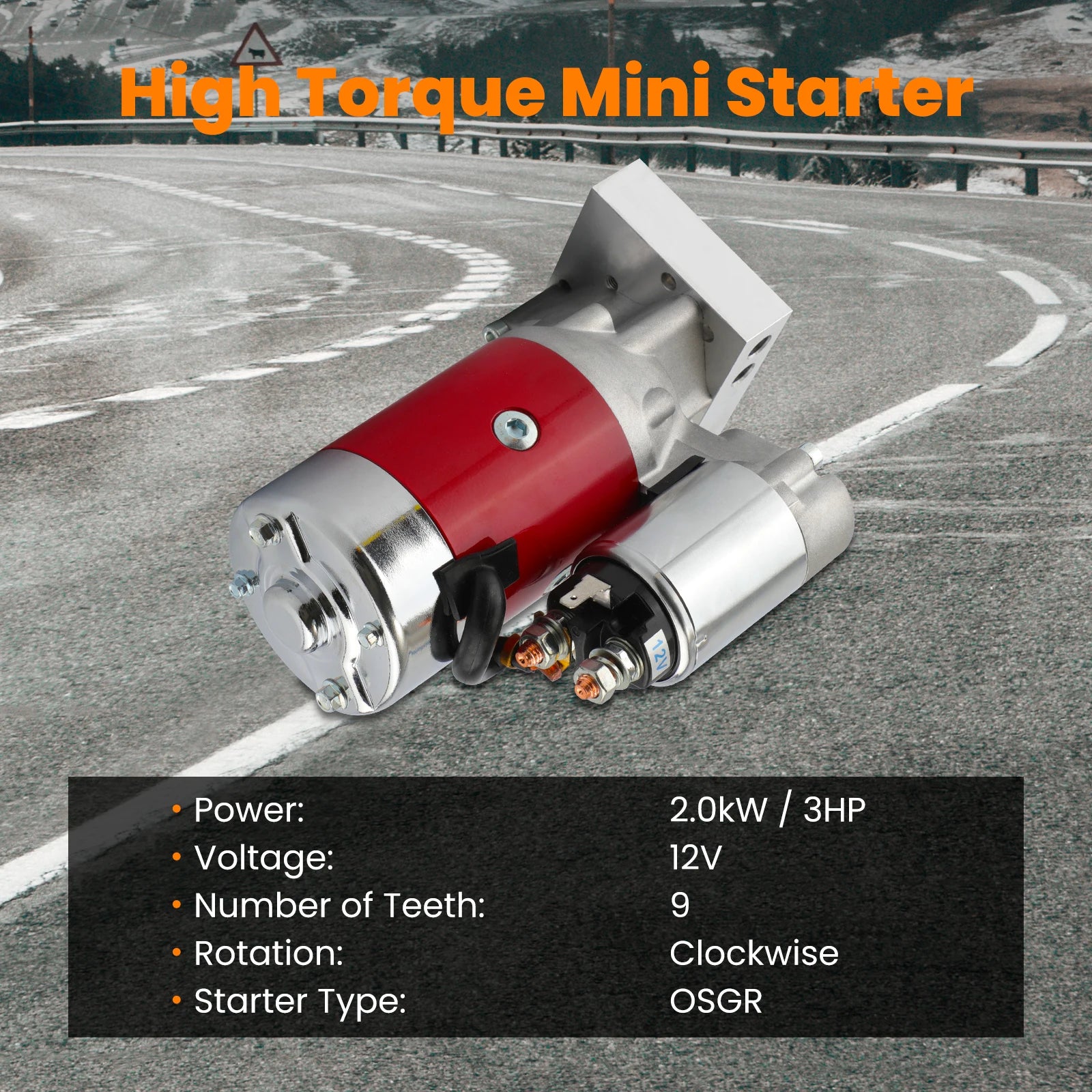

Heavy Duty 2.0kW, 3HP, OSGR, 12 Volt, CW, 9-TOOTH Pinion

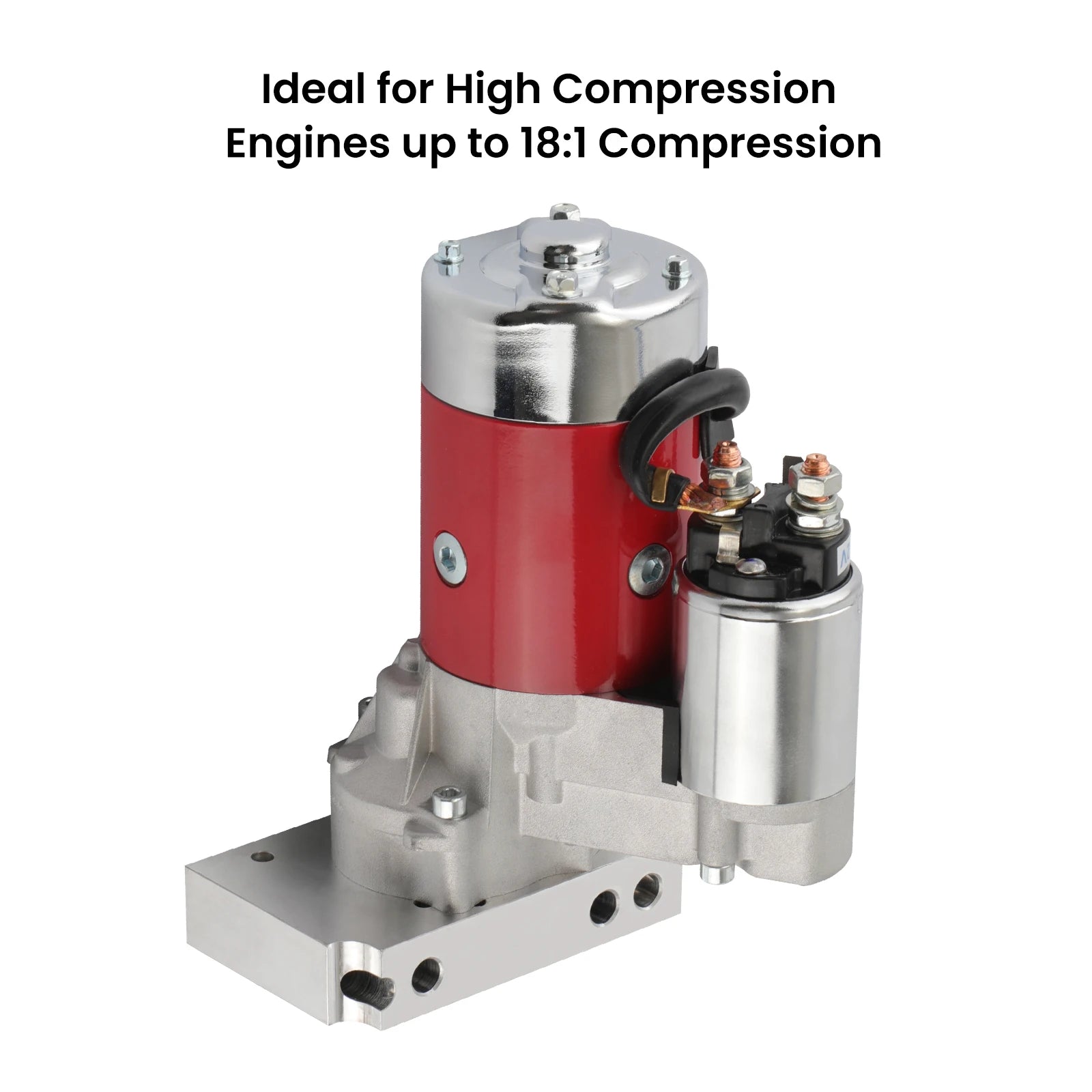

Ideal for High Compression Engines up to 18:1 Compression
Soolid Billet Aluminum Mounting Block
Torate Motor Position for Additional Clearance
Full Ball Bearing Design
Compact Design for More Clearance between Oil Pan & Headers
Larger Field Windings,Stronger Armature, Bigger Brushes and 1 inch Longerh than the S1935N



Installation Note:
To use this type of starter you must verify that it has three bolt holes on the starter pad. You will use two of the three holes to mount this starter but they must be straight across from each other to accept this starter. This starter cannot be installed if the two holes are staggered.

PS: Check your block for starter bolt pattern used, 454 blocks many times had a staggered bolt starter.



Notice:
* Professional installation is highly recommended (No Instruction Included).
* For any needs please contact us.
