SPECIFICATIONS

Air Supply Mode: Straight Blow Mode

Air volume: 150-500m³/h

Brand Name: NoEnName_Null

Certification: CE

Circulation mode: Internal circulation Mode

Driving Mode: Host Driven Mode

Fan power: 80W

Hign-concerned Chemical: None

Model number: KF-32GW/URC

Origin: Mainland China

Power on status: Default Last Shutdown Status

Rated voltage: 12V/24V

Refrigerant: R1234yf / R134a(NOT include)

Refrigeration capacity: 1KW-3KW

Temperature Regulation Mode: Temperature Regulation Mode

Temperature regulation method: Temperature controller adjustable type

Matters needing attention

1. There is no refrigerant inside the air conditioner, and （500-550g)/R1234yf or R134a needs to be added
2.Refrigeration oil type: POE68(included)

3. Vacuum for 15-20 minutes before adding refrigerant

4. Add refrigerant pressure gauge value: low pressure 35psi, high pressure 140-180psi

5.24V electric air conditioner: minimum 80AH single battery and 60A generator are required.
Meet the above conditions can be installed in a suitable space

12V electric air conditioner: minimum 100AH single battery and 70A generator are required.
Meet the above conditions can be installed in a suitable space

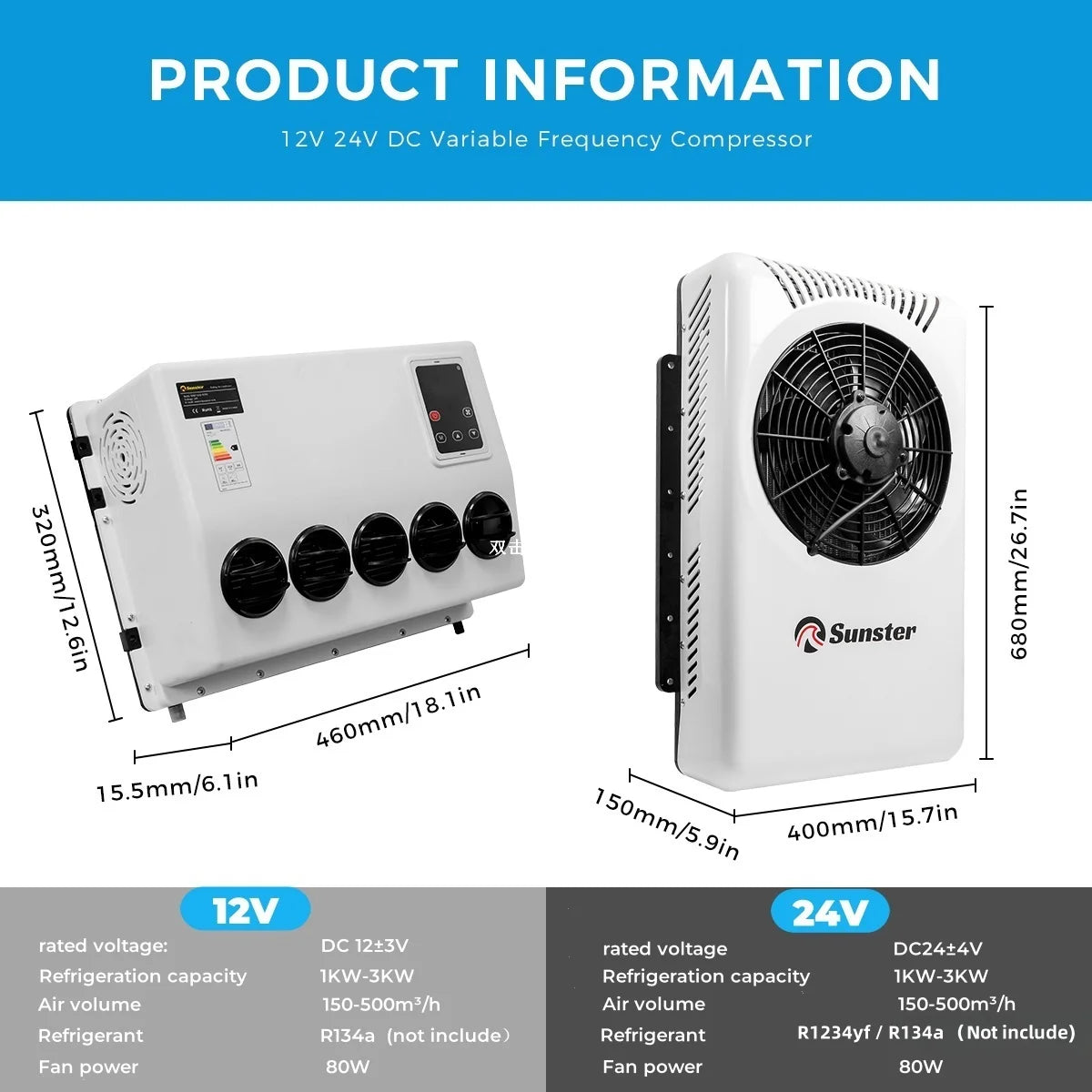

Product parameters:

12V Product parameters:

Model number：KF-32GW/URC

Screen display：LED display screen

Power on status：Default Last Shutdown Status

Drive control：SP  4V-9V

Refrigerant：R1234yf / R134a（Not  Include）

Rated voltage：DC 12±3V

Fan power: 80W

Refrigeration capacity:1KW-3KW

Air volume:150-500m³/h

Operating noise: ＜55db

24V Product parameters:

Model number：KF-32GW/URC

Screen display：LED display screen

Power on status：Default Last Shutdown Status

Drive control：SP  9V-19V

Refrigerant：R1234yf / R134a（Not  Include）

Rated voltage：DC24±4V

Fan power: 80W

Refrigeration capacity:1KW-3KW

Air volume:150-500m³/h

Operating noise: ＜55db

PRODUCT ADVANTAGE:

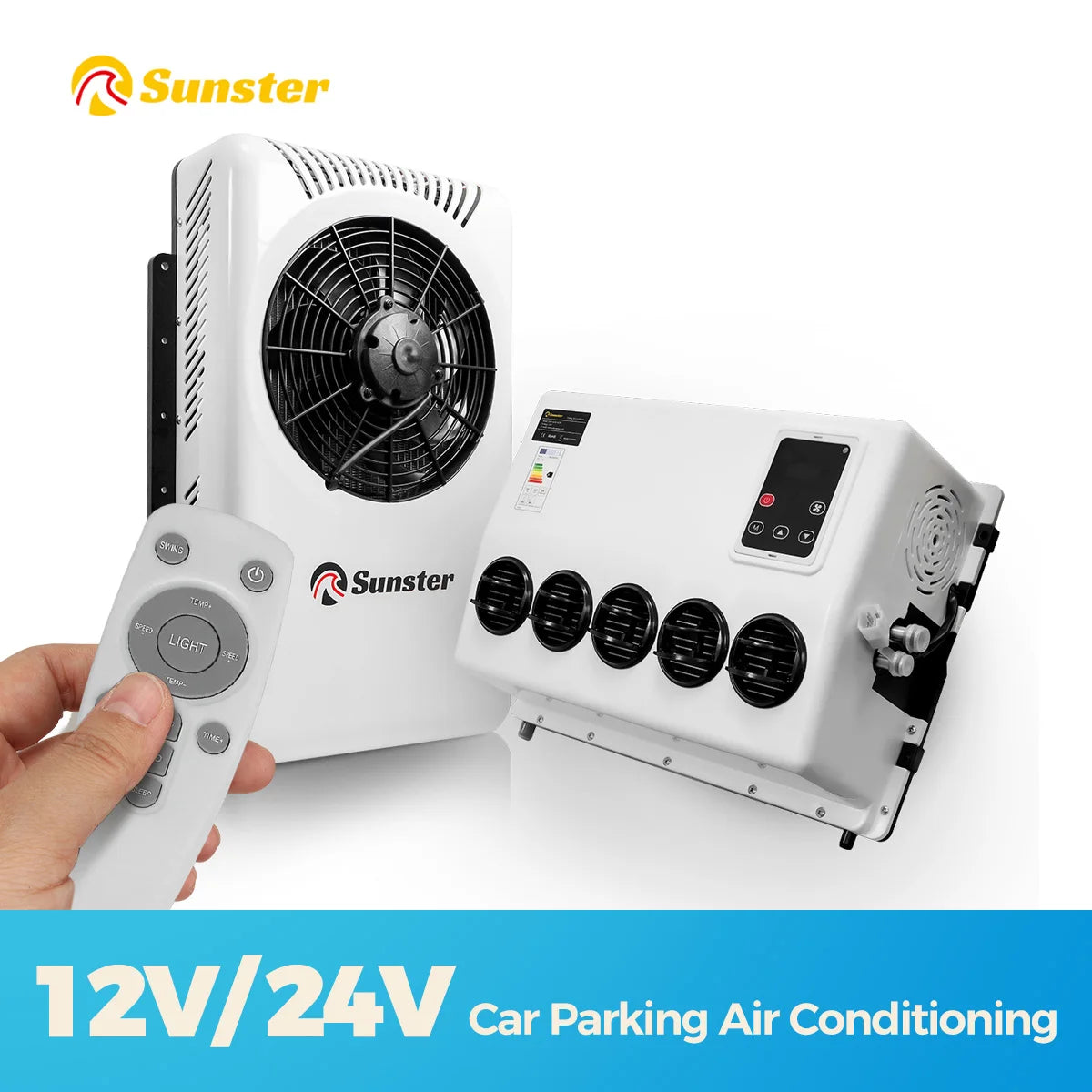

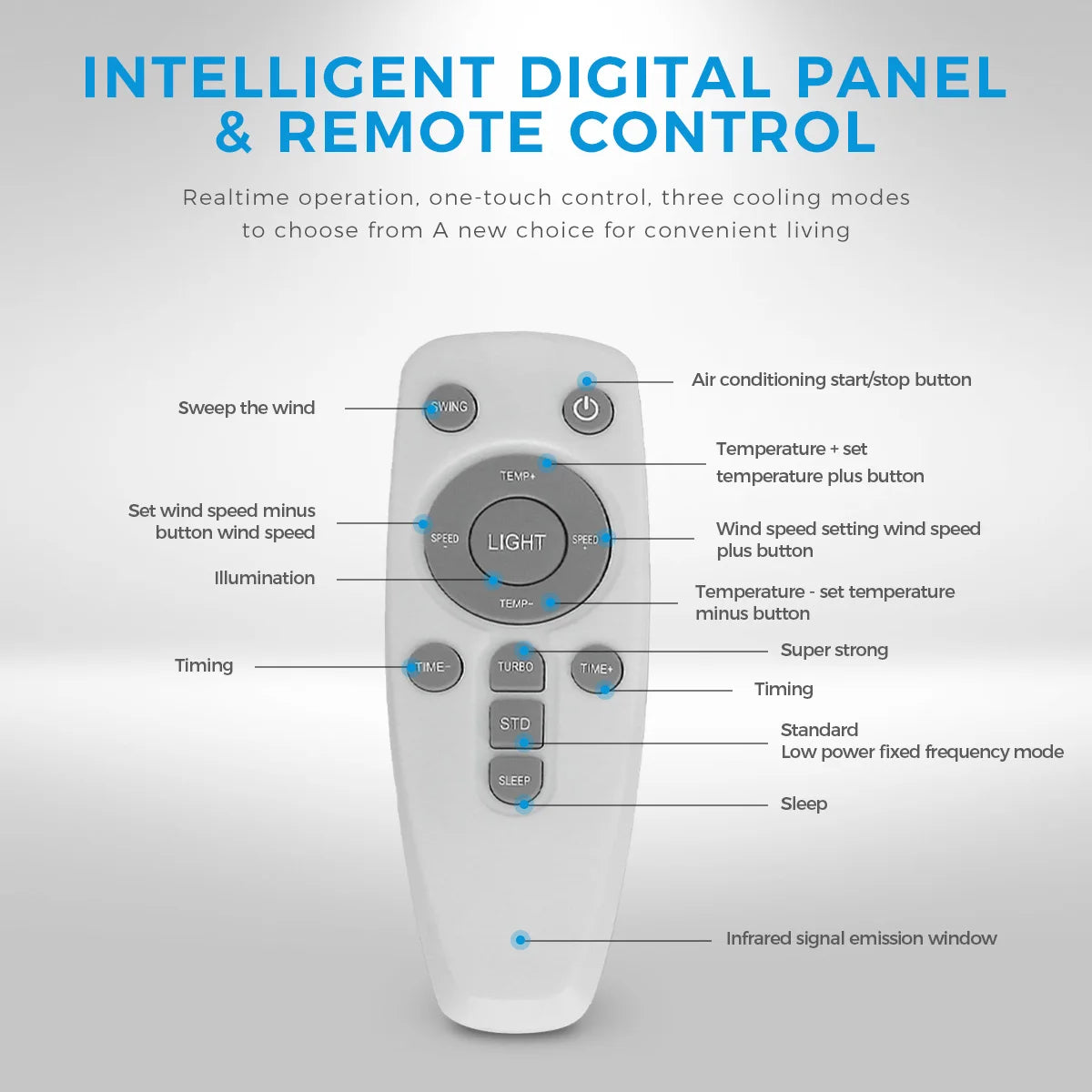

【One-Touth Remote Control】Real-time operation, one-touch control, three cooling modes to choose fromA new choice for convenient living

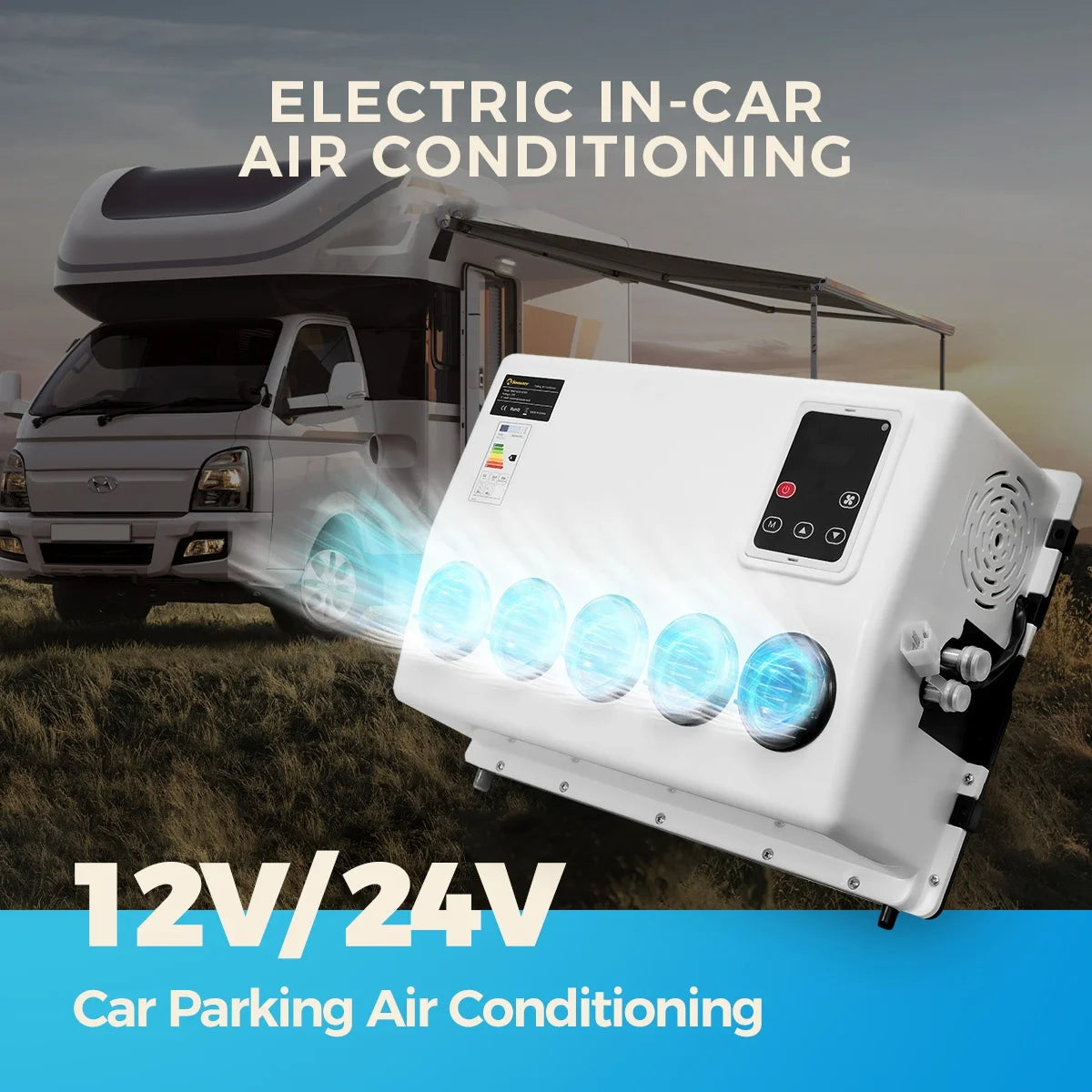

【Battery Driven】This A/C is driven by 12/24V battery, even you are parking or your car engine is off, you can still use it. Fuel saving and longer use time.

【Silent Use】The air conditioner adopts a silent brushless evaporator with low noise. Both driving and parking with the engine turned off can enjoy cool air, instead of traditional noisy driving, providing a better experience and focused driving.

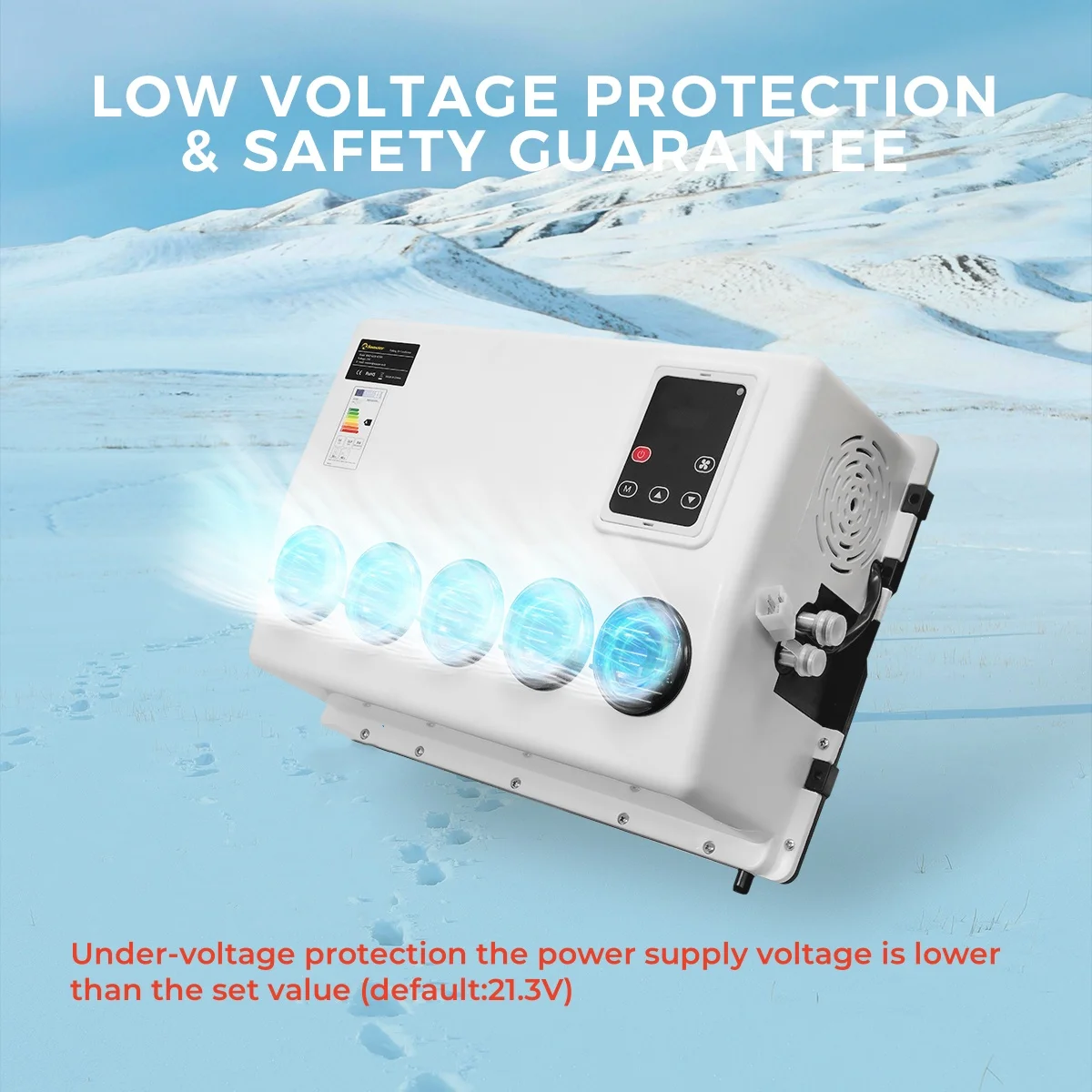

【Low voltage protection】Prevent excessive power consumption and start without pressure.In addition to protecting your battery, the low voltage protection mechanism allows the device to start smoothly without placing undue stress on the power source. This "start without pressure" functionality ensures a seamless and efficient startup process, even in low-power conditions. Whether you're using the device in a car, truck, boat, or during outdoor adventures, this feature guarantees reliable performance while extending the lifespan of both the device and your power supply.

【Fit most vehicles】this type universally fit to trucks, RVs, agricultural vehicles, excavators, bulldozers, cranes, passenger cars, vans, light trucks, construction vehicles, etc.Make you have enough space to install

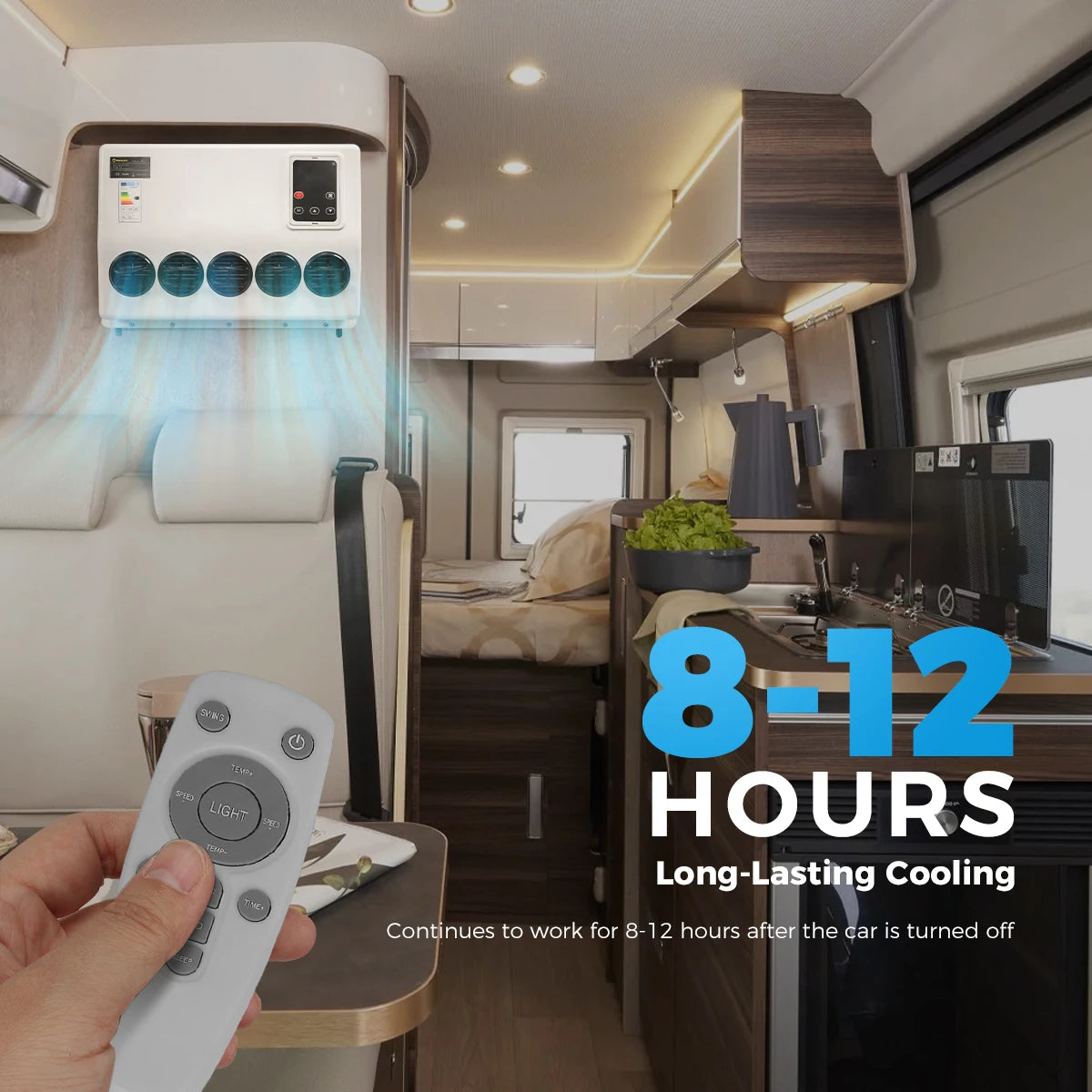

【Strong refrigeration】After stopping and extinguishing, it can continue to run for 8-12 hours to save energy and electricity, protect the environment, promote health, and sustain reshaping

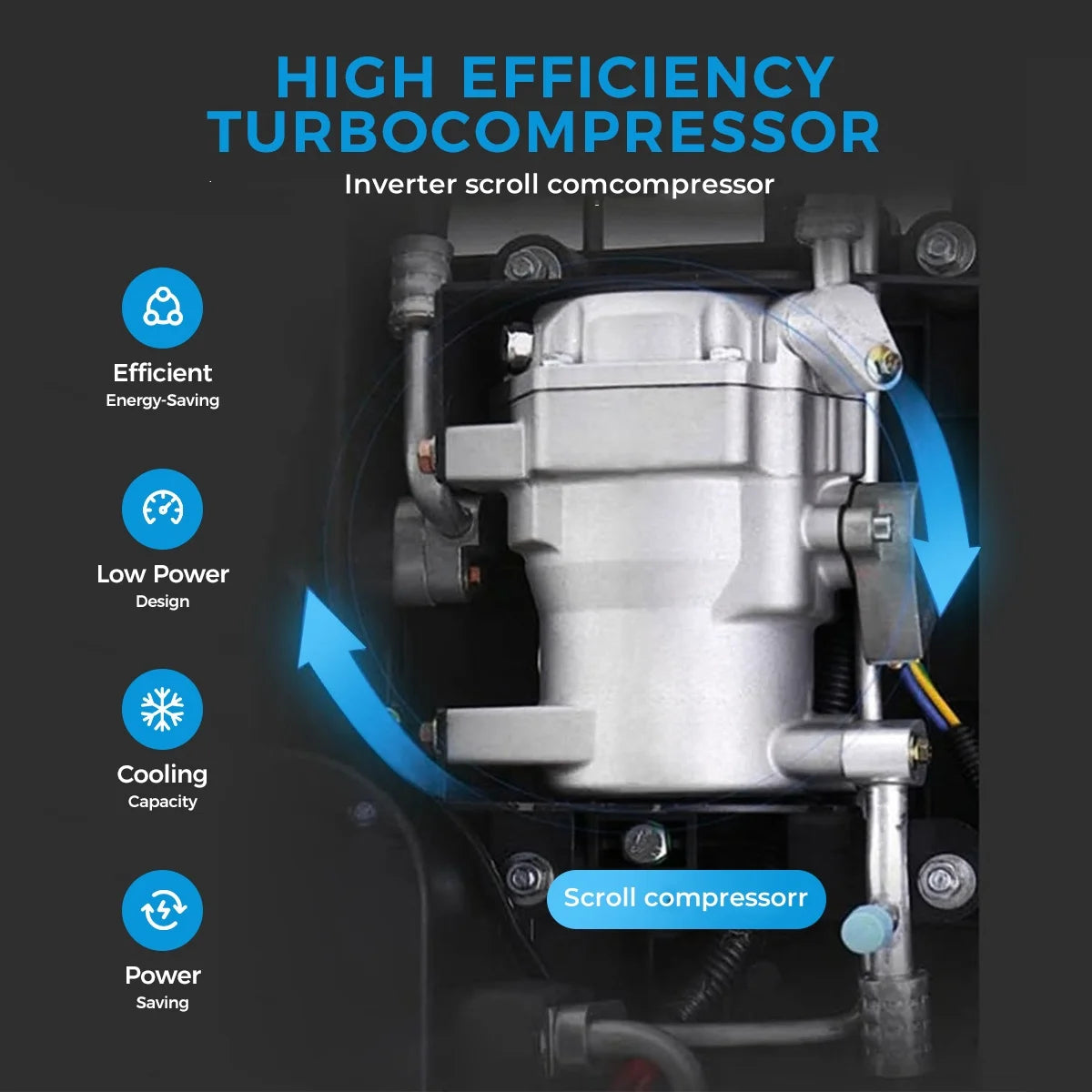

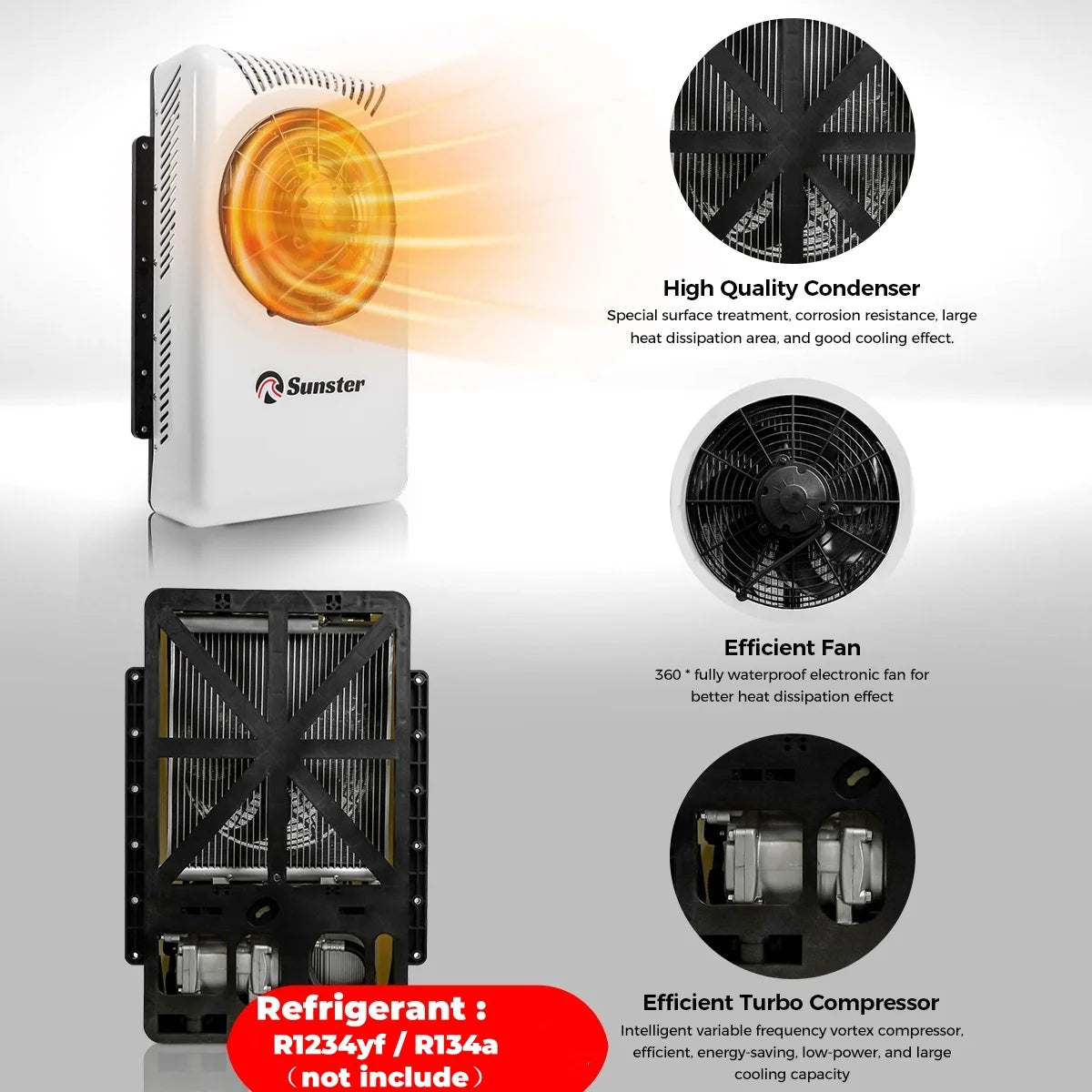

【Scroll Compressor Rapid Cooling 】- Motor rpm up to 2500-speed which cool down the interior temperature in just few minutes. Mini Split AC fast Cooling in hot Summer, Say goodbye to sweating.

【Variable Frequency Inverter Cooling 】- Mini Split Air Conditioner adjusts its operating frequency according to the surrounding temperature, hence reducing energy consumption. The inner unit is equipped with an ultra-quiet mini evaporator, it controls temperature intelligently and operations below 70dB to create a comfortable environment

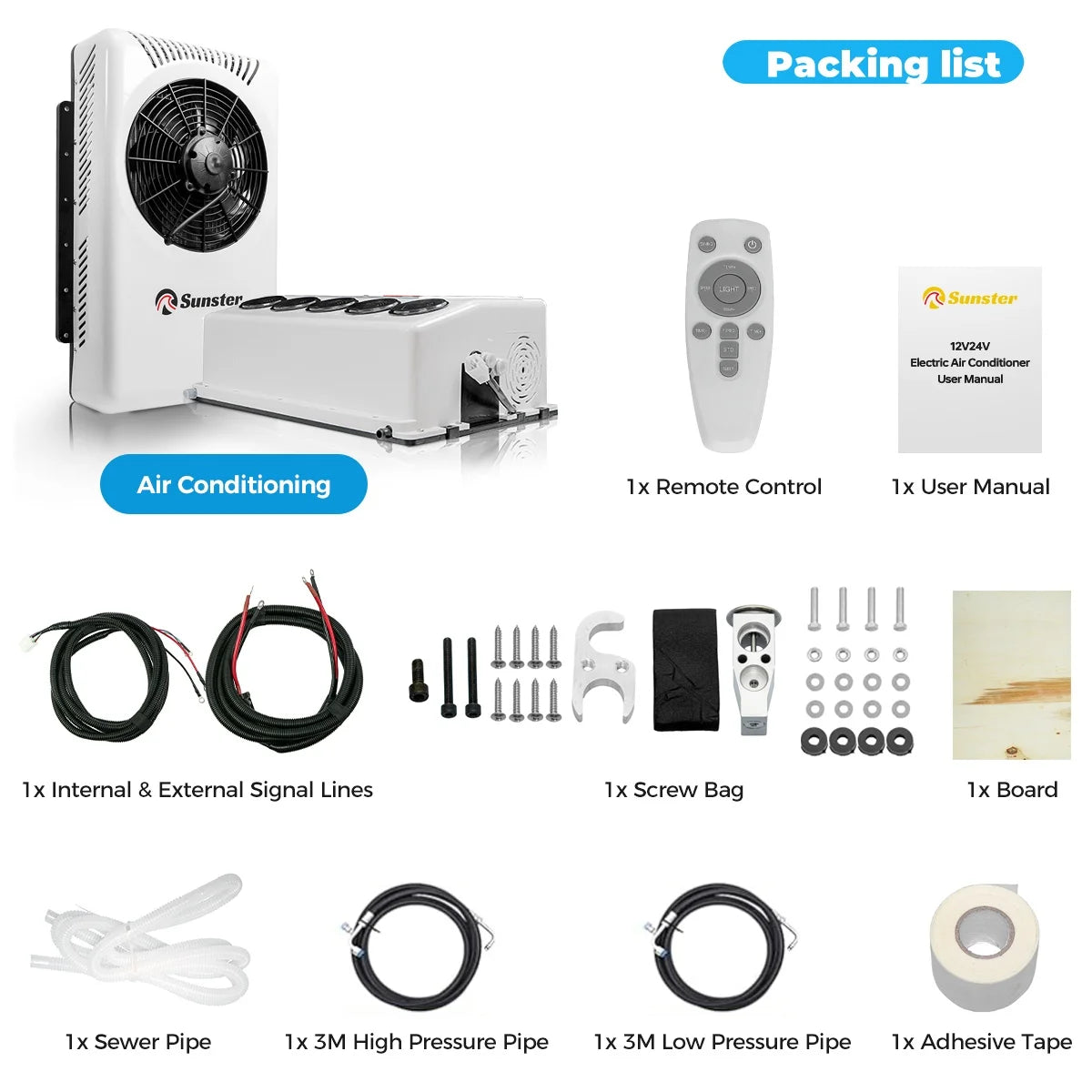

Package Includes (Depending on your choice):

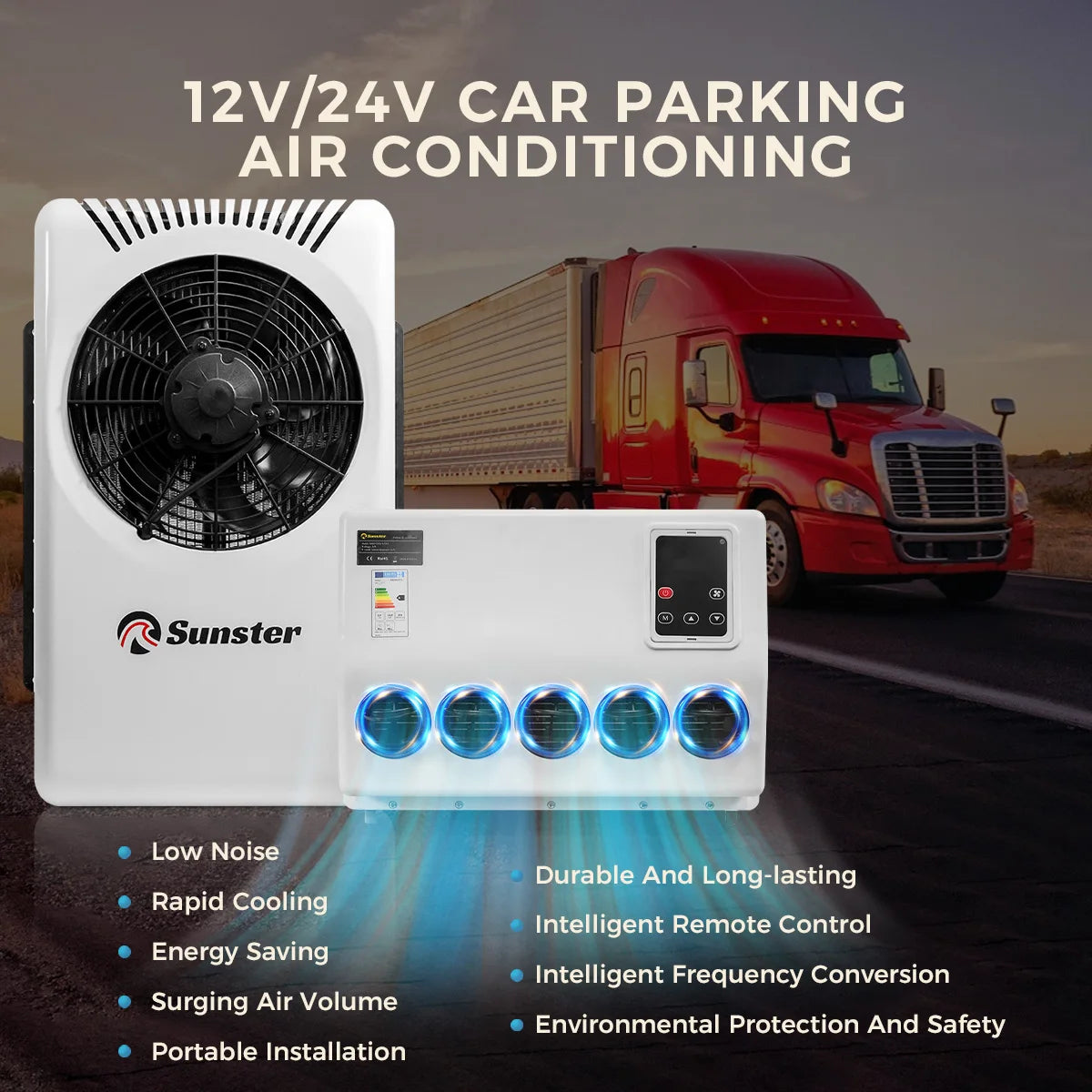

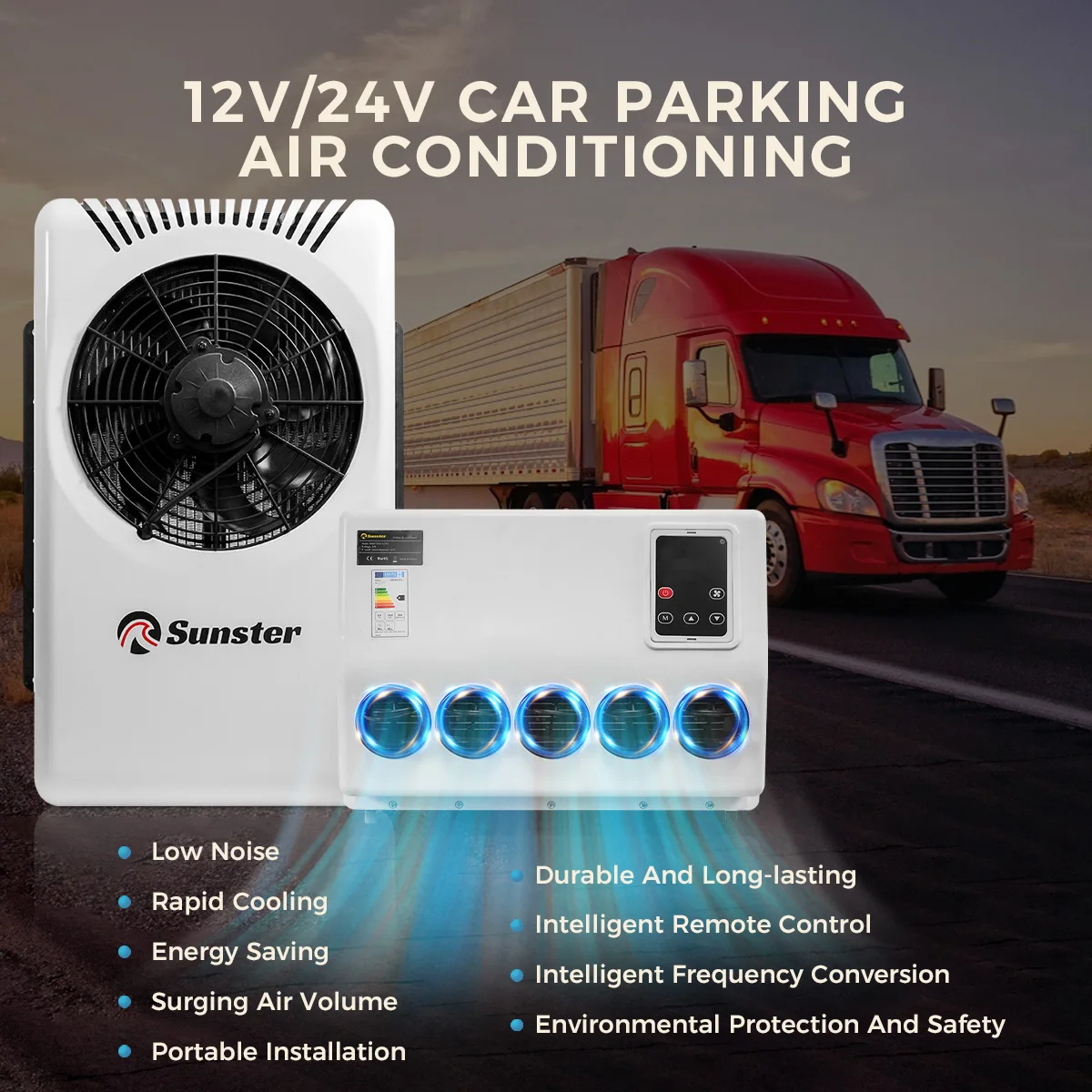

1x12V/24V Car Air Conditioner depends on your choice

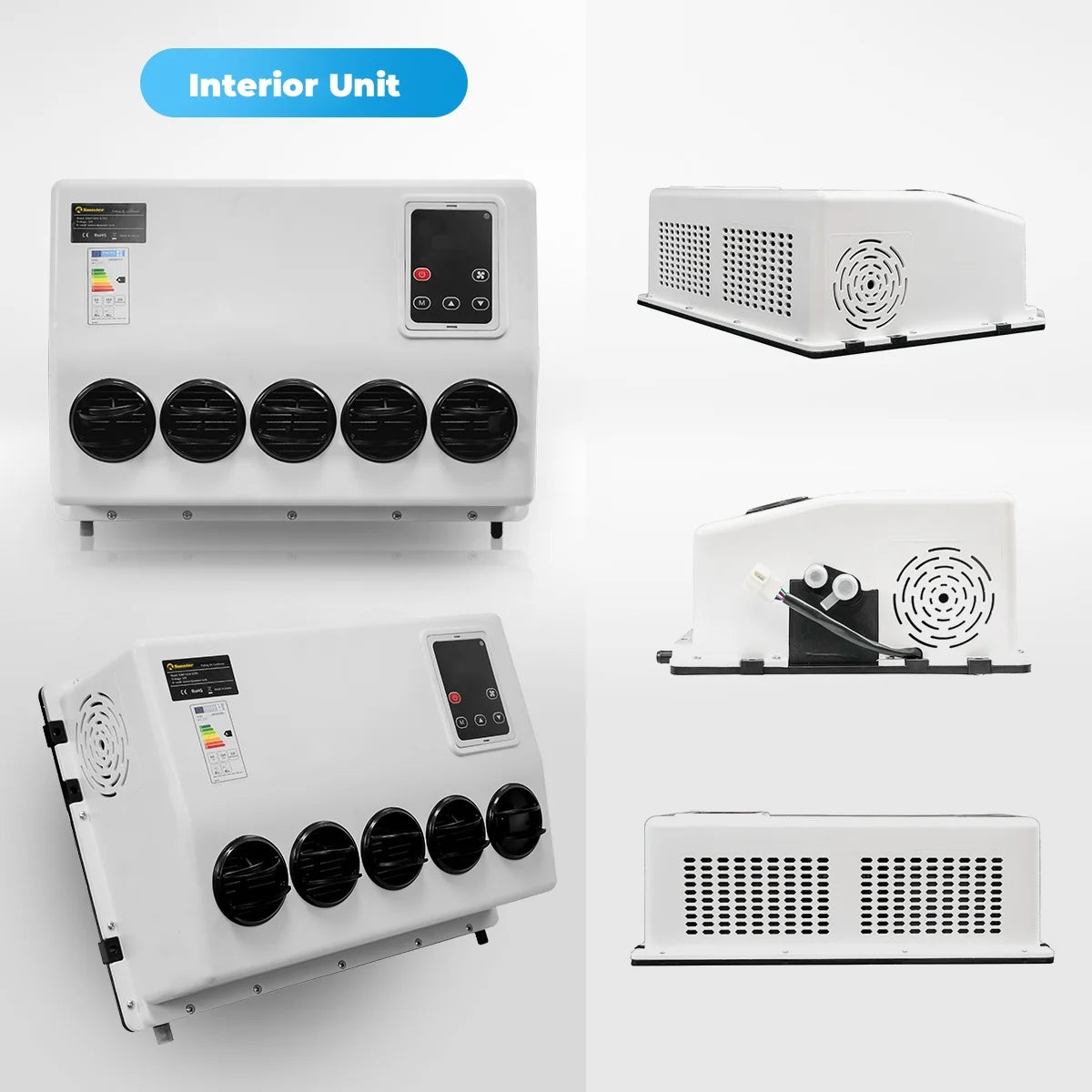

1x Internal Machine

1x Sewer Pipe

1x 3M High Pressure Pipe

1x 3M Low Pressure Pipe

1x Internal Machine Mounting Plate

1x Screw Bag

1x Adhesive Tape

1x Internal and External Signal Lines

1x 3M Battery Line

1x User Manual

1x Remote Control
