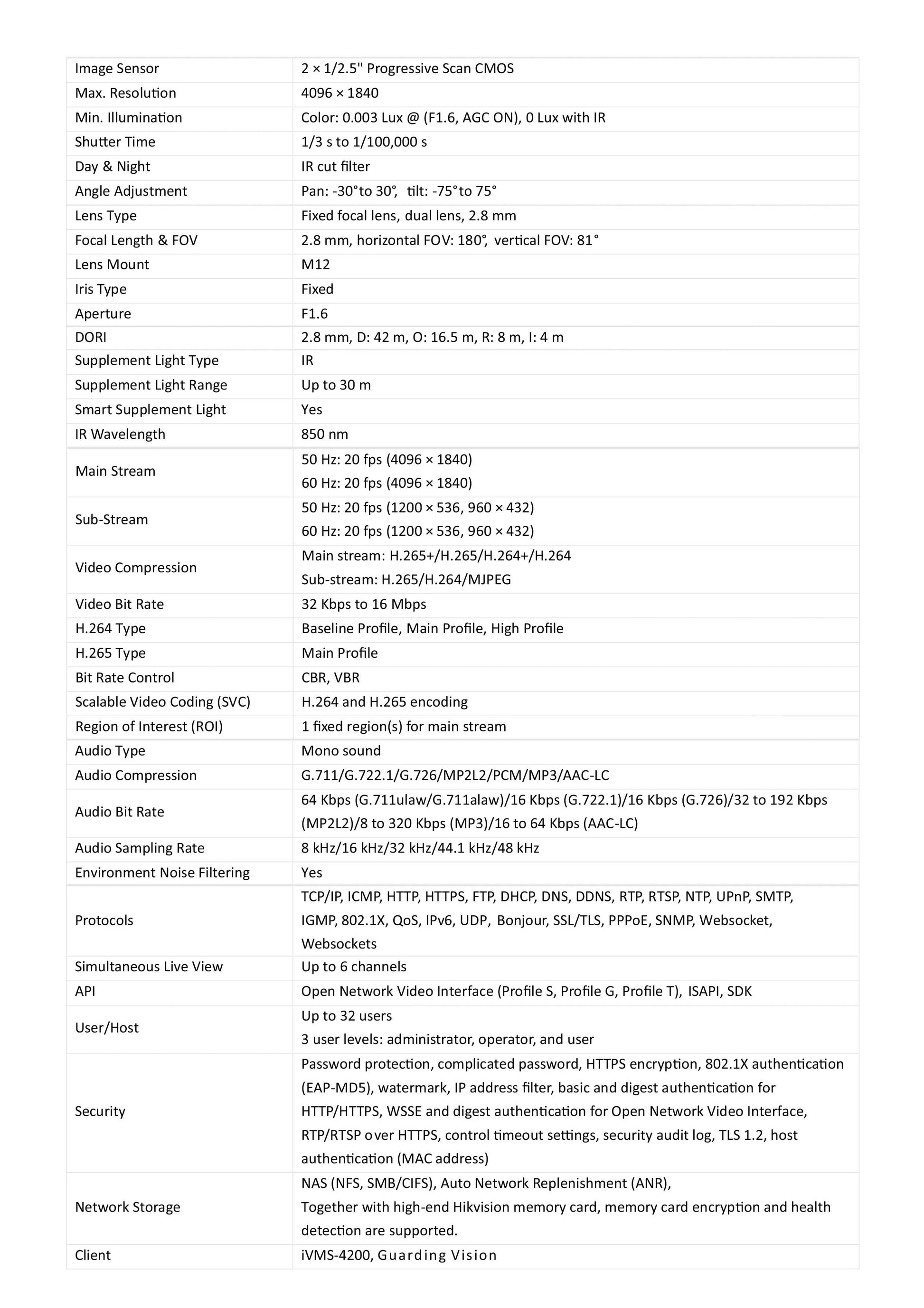

SPECIFICATIONS

AI Functions: Human Detection

APP: Guarding Vision

Alarm Action: FTP Photo,telefon Alarm,Email Photo

Audio Output: Two Way Audio

Brand Name: anpviz

Certification: CE,FCC

Color: WHITE

Color Night Vision: No

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 23*23*23cm

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP67

IR Distance(m): Up to 30m

Installation: Ceiling

Internal Storage: 256GB

Key Word 1: Panoramic Camera

Key Word 2: Motion Detection 2.0

Lens (mm): 2.8mm

Lens Quantity: Dual Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.003Lux

Model Number: IPC-D2366P-ISU / IPC-D3886PD-SA

Movement Range(Tilt): -10°-180°

Operating Temperature: -10°-60°

Origin: Mainland China

Power Consumption(W): Max 10.5W

Power Supply: With Poe

Power Supply(V): DC 12V

Rechargeable Battery: None

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Metal

Special Features: Waterproof / Weatherproof

Style: Turret Camera

Supported Mobile Systems: Android,IOS

Supported Operating Systems: Windows XP,Windows 7,Mac OS,Windows 8,Windows 10

TF Card: 256g tf card

Video Compression Format: MJPEG,H.264,H.265

Viewing Angle : 180°

Zoom: None

Zoom type: None

is_customized: Yes

Smart Motion Detection App Pushes & Email Alerts

When the camera detects any difference, it will push instant app notifications and email alerts to you, so that you can access the camera to check the motion events and take actions to prevent possible intrusion.

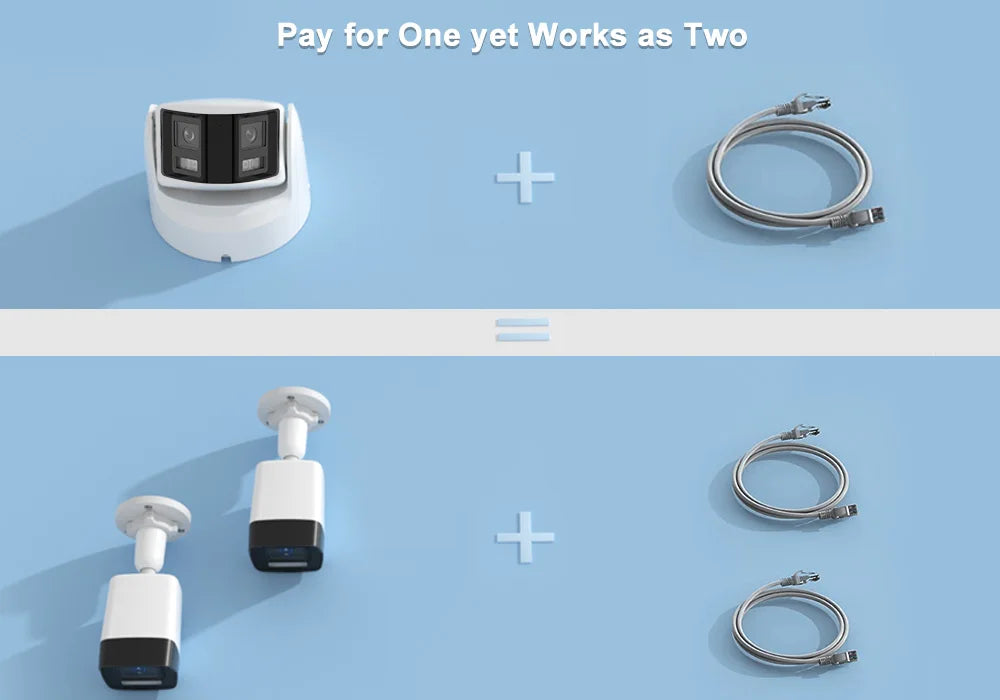

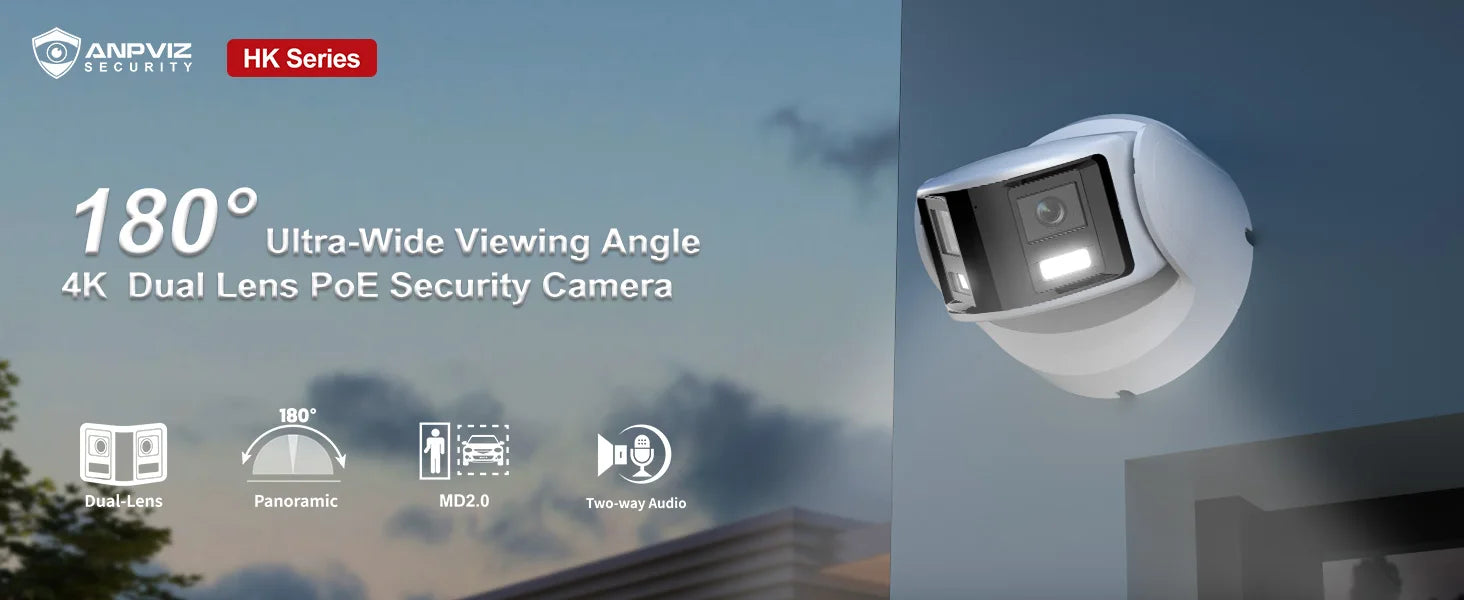

Dual Lens With 180°Super Wide Angle View Vision

The Dual Lens support capture a wider vision angel than normal single lens camera,only one camera can cover 180°view vision,easily capture a person walking from the left side of your house to the right,super wide vision offer you more details.(Angle Adjustment--Pan: -30°to 30°,tilt: -75°to 75°)

High Quality Imaging With 8 MP Resolution

The camera`s resolution max support 5120 *1440 pixels,the image quality and details captured would be clearer that the 6MP or 5MP resolution camera.

Focus On Human And Vehicle Targets Classification Based Motion Detection 2.0

With smart Motion Detection 2.0,support human and vehicle detection,real time alarm,easy to know and learn what's going on around your house.Based on deep learning,catching the targets accurately during the monitoring process.

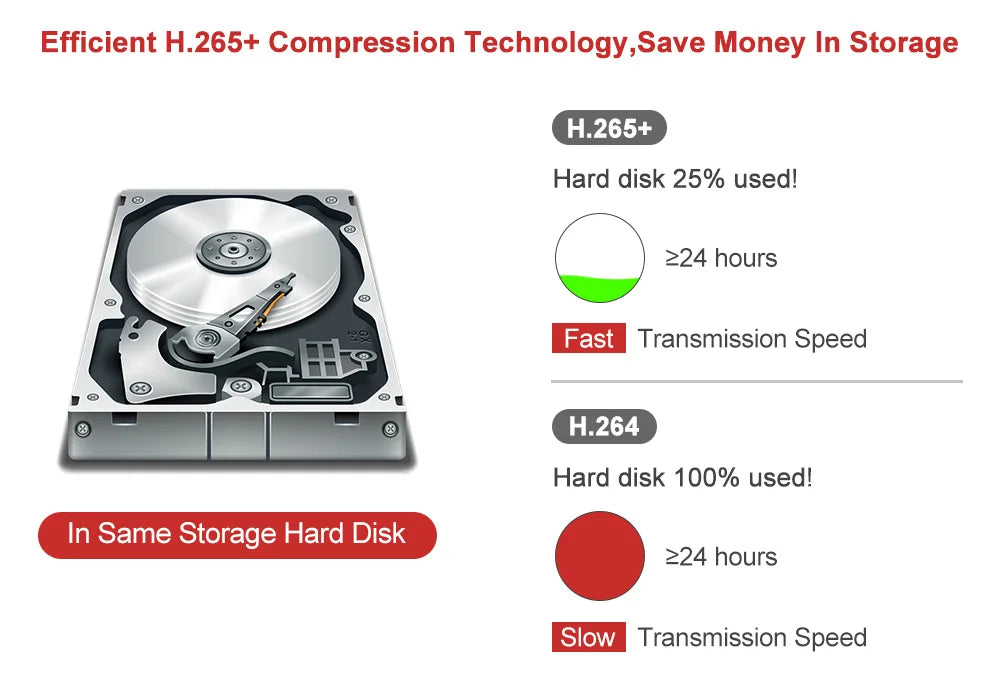

Efficient H.265+ Compression Technology,Save Money In Storage

This Camera with upgrade H.265+ Compression video coding.Based in H.265 technology,5~6 times longer time video recording in same hard drive than in H.264,help you saving much money in hard drive cost.

Provide Real-time Security Via Built-in Two-Way Audio

Camera built in Microphone and speaker,support real time view,easily communicate with the visitor.when the danger coming you can also warn the intruder remotely.Use with sound and light alarm,Make your safety more secure.

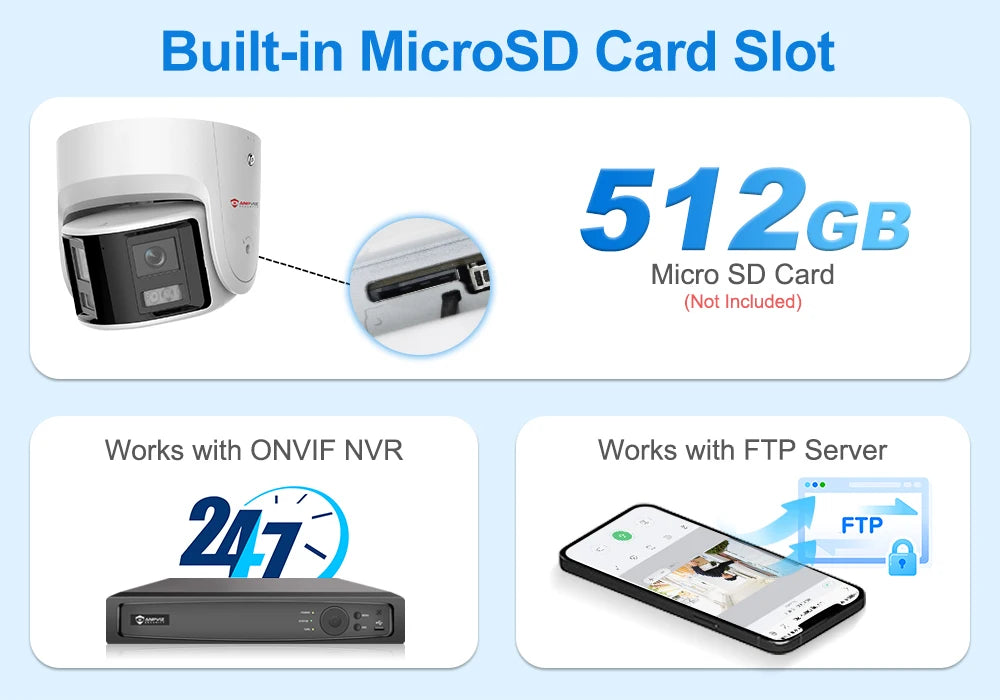

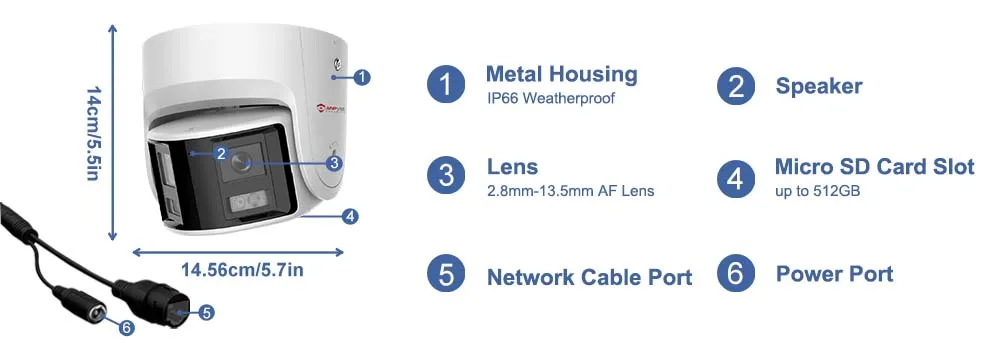

Built-in SD Card Slot,Max Support 256GB Storage

Camera built in SD Card slot,Support single camera use and record video information,512GB SD Card in daily recording max support 15-20 days.(It is better to use it with NVR if you want to achieve intelligent functions.)

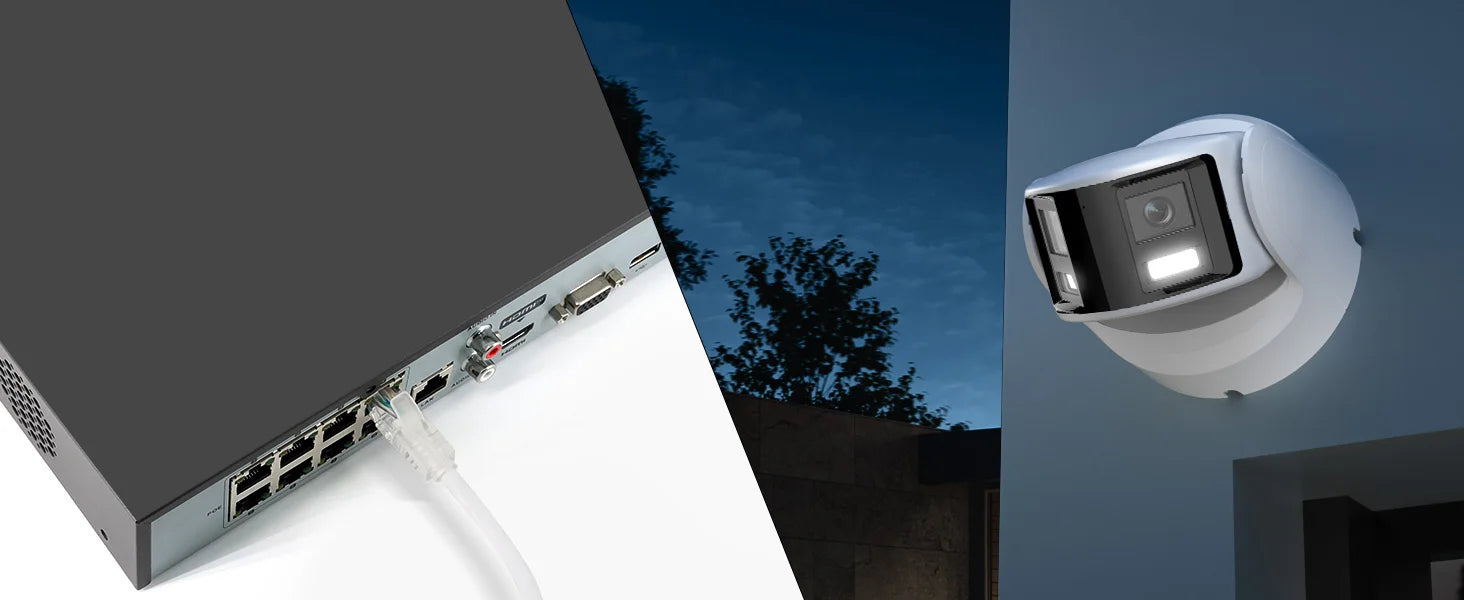

POE Connect -Power By ethernet, Easy Set-up And Connect

This camera features POEfunction-- Power over Ethernet, with a single cable connecting each IP camera to the NVR for both power supply and video signal transmission. Easy wiring -- the wiring process can’t be simpler for beginners,built your security system easily.

Active Strobe Light And Audio Alarm To Warn Intruders Off

The Dual lens camera built in 2 pieces LED light and 2 IR light,support smart strobe light and audio alarm to warn the intruder,No mater in day or night.

Excellent Low-light Performance With Powered-by-DarkFighter Technology

Camera powered by Drakfighter function,0 Lux with IR, low light performance in night vision,Day & Night Vision auto switch,night vision distance up to 30 meters.

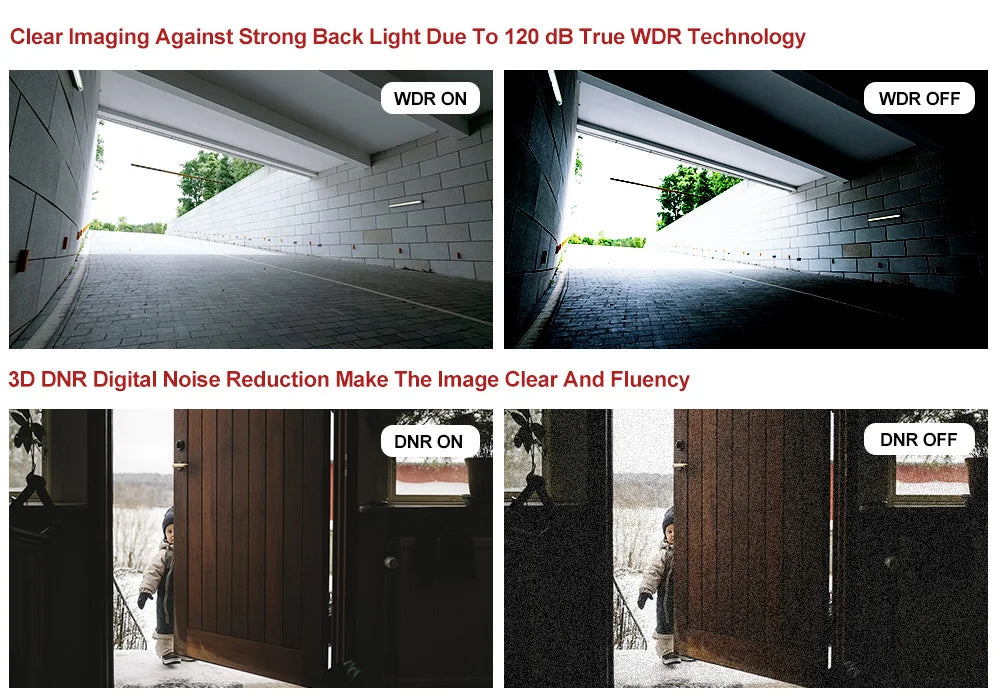

Clear Imaging Against Strong Back Light Due To 120 dB True WDRTechnology

By combining images with short exposure and long exposure into one image, WDR technology captures both bright areas and dark areas clearly.120 dB True WDR keeping offer a bright and clear image in different situation.

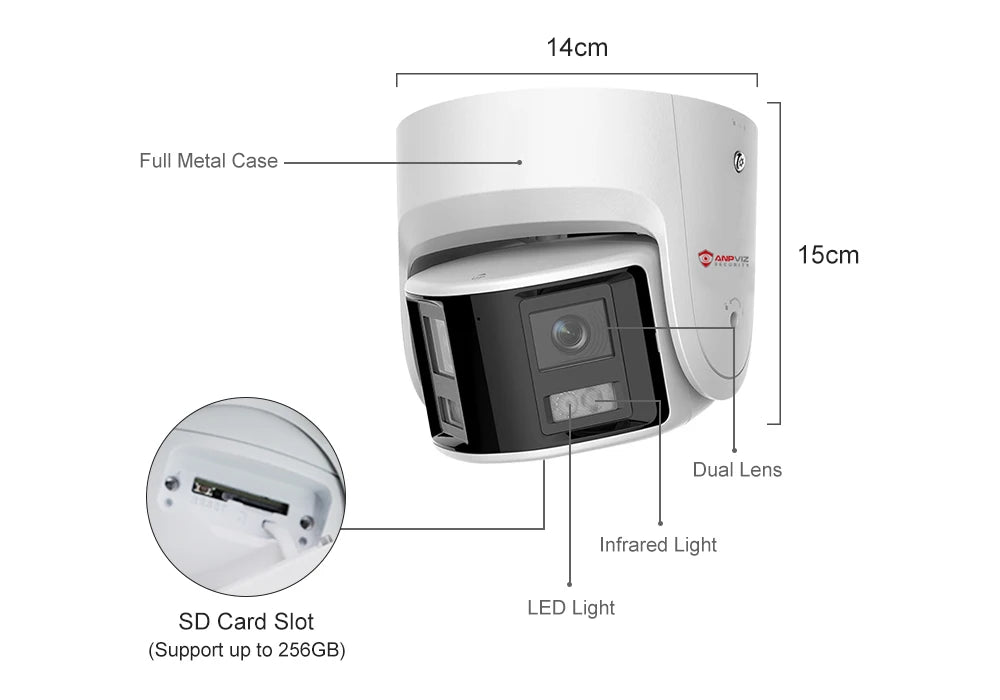

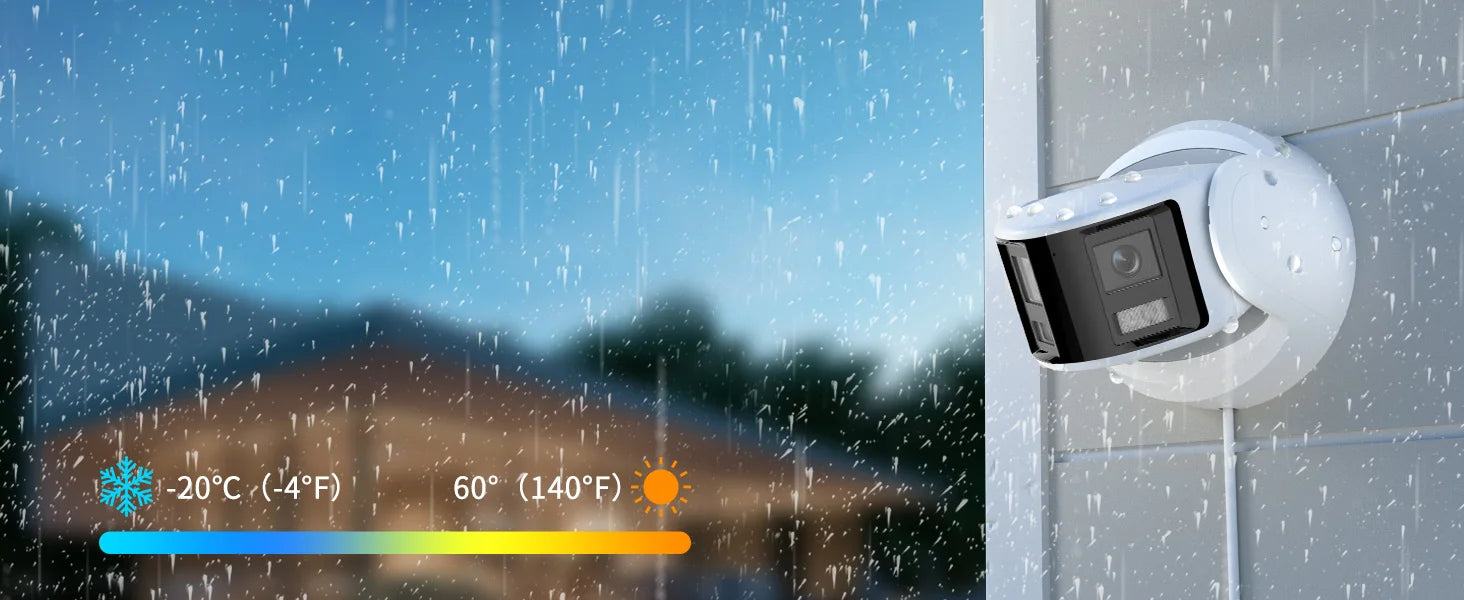

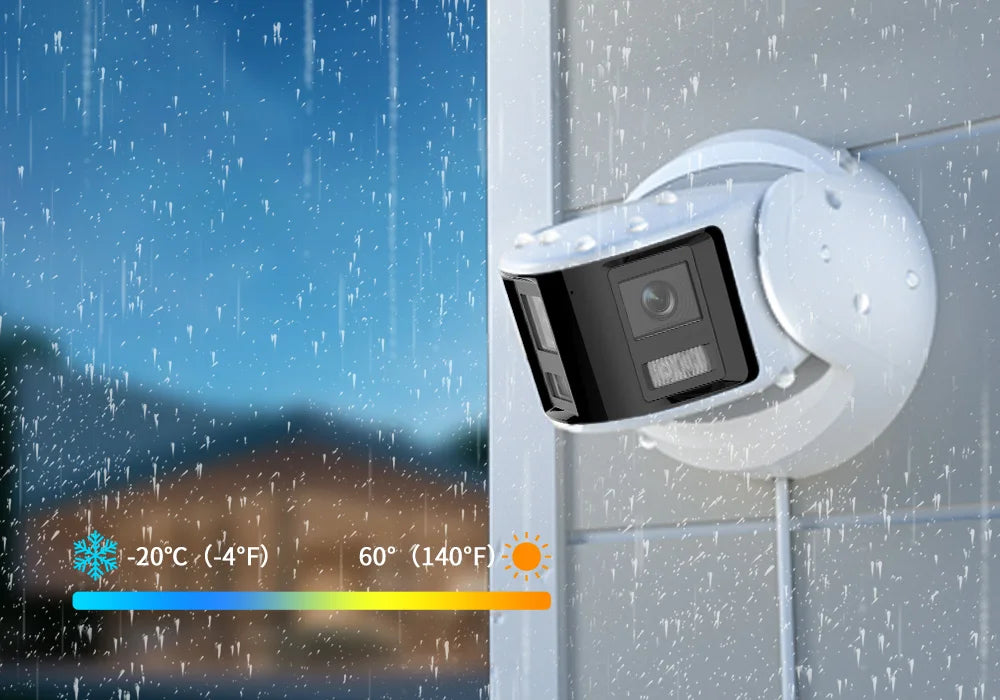

With Full Metal Case,Water And Dust Resistant (IP67 Level)

Widely range of operating temperature environment,-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing),Even in cold climates or the tropics, it can be used normally.

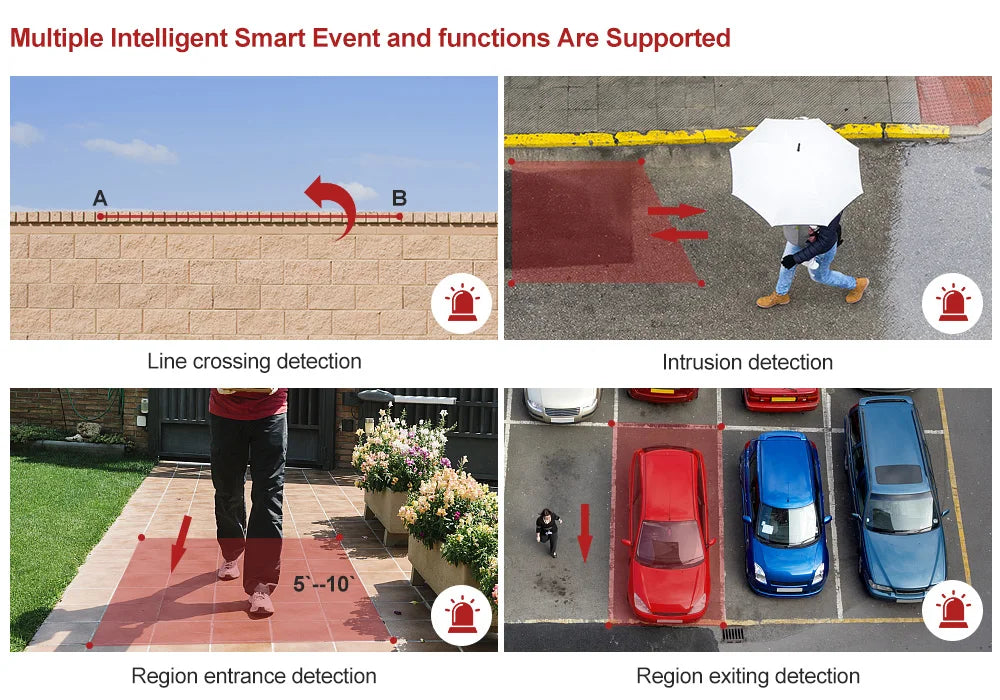

Multiple Intelligent Smart Event And Functions Are Supported

Such as the Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection.(Be Attention:Smart AI Functions must be used with a NVR that supports the function to take effect.)

Support Multi-language Settings And View,Up To 33 Languages

33 languages Support: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian.

Easy access via free Mobile Device APP & PC Software

When you go outside,you needn't to worry about your property security. By using thiscctv system,you can remote view live video simultaneously at anytime, anywhere with wifi/4G on smartphone/iPad/PC. With the free app "GuardingVision " users can access footage via their smart device (IOS/Android) or computer (Windows) software:IVMS4200. Watch live streams and view playbacks instantly, helping you stay informed whenever, wherever.

Q:Is it a Full-color Night Vision Camera?

A:No.The Anpviz 8MP Dual lens POE Camera with LED Light but only for Active Strobe Light Alarm,Not support the Color Night Vision View for 24 hours,It is the normal infrared night vision.when inductor coming it will alarm with shinning light.

~~

We will fill in more questions later...Keep waiting.Thank you
