DRAPE TREND LLC

AP03 12V Electric A/C Scroll Compressor Universal Car Air Conditioner Semi Close Kit

$443.52 USD
$443.52 USD $504.00 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
In stock (12 units), ready to be shipped

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

Color: Silver

Hign-concerned Chemical: None

Interchange Part Number: Air Conditioning Compressor Kit ES21A012F2

Manufacturer Part Number: ES21A012F-2

Material: 12 V Automotive Electric A/C Compressor

OEM NO.: ES21A012F-2

Origin: AE(Origin)

Other Part Number: ES21A012F2 A/C Compressor Kit

Shell Type: Semi-Closed

Special Features: for air conditioning in automobiles, trucks, and buses

Voltage: 12 V



Specifications

Type: 12 V Automotive Electric AC Compressor

Compressor Style: 12V Semi-closed Horizontal Scroll

Max. Applied Power: 1000W

Refrigerant: R134a

Max. Speed (460V Rating): 2100rpm

Rated Voltage: 12VDC

Speed Range: 1000 - 2100rpm

Refrigeration Oil: POE Oil RL68H/130ml

Max. Incoming Current: 63A

Material: Aluminum Alloy



Features

Control External Design: The air conditioner compressor separates the control panel from the main unit.

LED Flashing Prompt: The control panel adopts a brushless controller unit with LED flashing prompt and protected mode. LED flashing prompts are specially designed for faults.

Multiple Protection: Efficient work, the electric ac compressor will automatically stop working when encountering high pressure/under-voltage and then automatically restart after stable

Widely Used: A/C 12 volt electric compressor unit, suitable for AC air conditioning in automobiles, trucks, and buses.



Led Blinking

LED Blinking hint is special designs for the fault. during the using, some irreguar operate lead to some wrong like,Excessive current,Undervoltage,Locked rotor, Standby mode,over heated,over preasure. This Air conditioner compressor will turn to protection mode and hint by LED blinking.

Blinking 1 times, pause 1 second: Standby mode.

Fast blinking 2 times, pause 1 second: Excessive current, Over 50A.

Fast blinking 3 times, pause 1 second: Locked rotor protection.

Fast blinking 4 times, pause 1 second: Undervoltage protection.

Fast blinking 6 times, pause 1 second: Electric fan fault.

Fast blinking 7 times, pause 1 second: Motor lack of phase. Please check if the motor got burnt and connection is correct or not.

Fast blinking 8 times, pause 1 second: Compressor over heated protection.

Fast blinking 9 times, pause 1 second: Pressure switch protection.



Package Incluedes

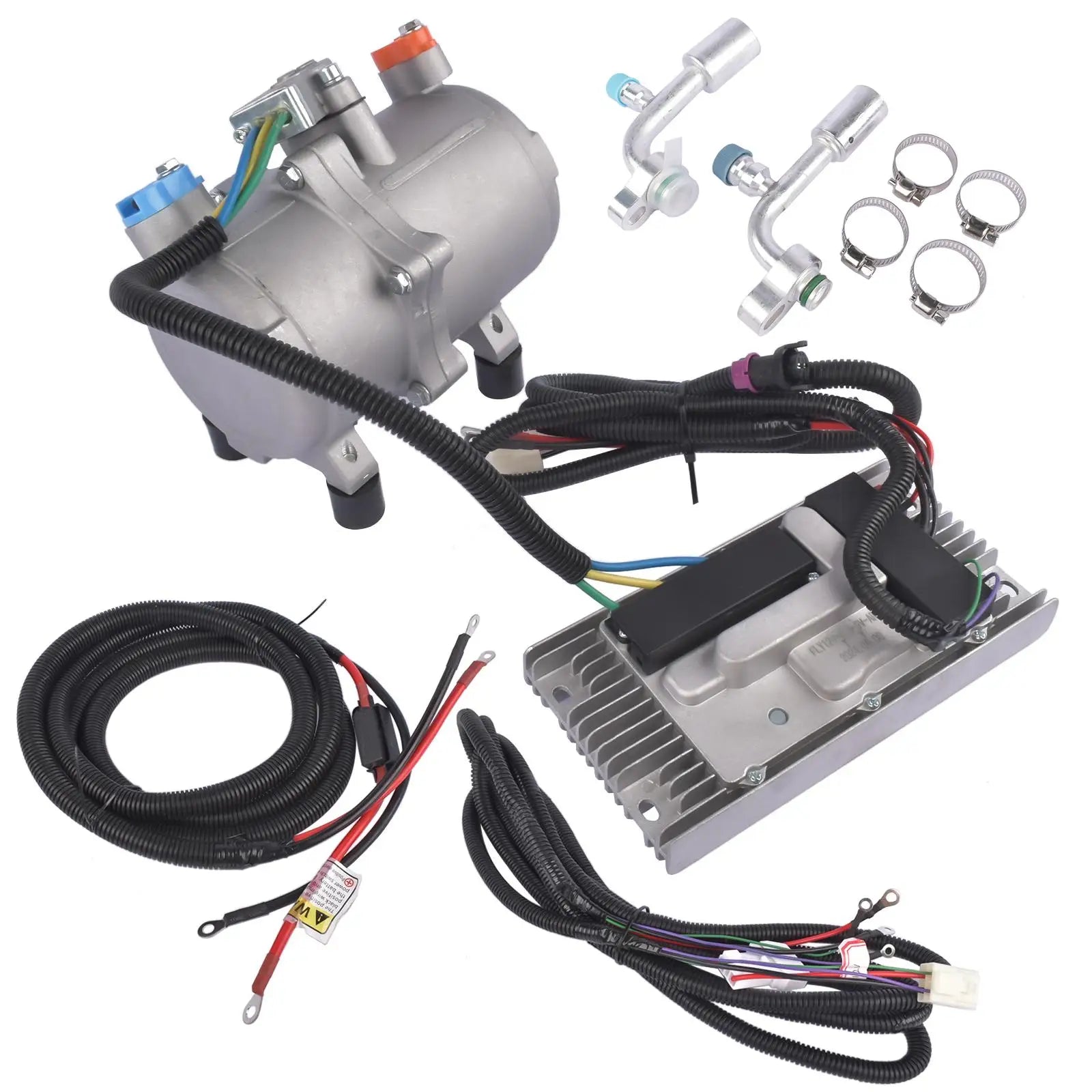

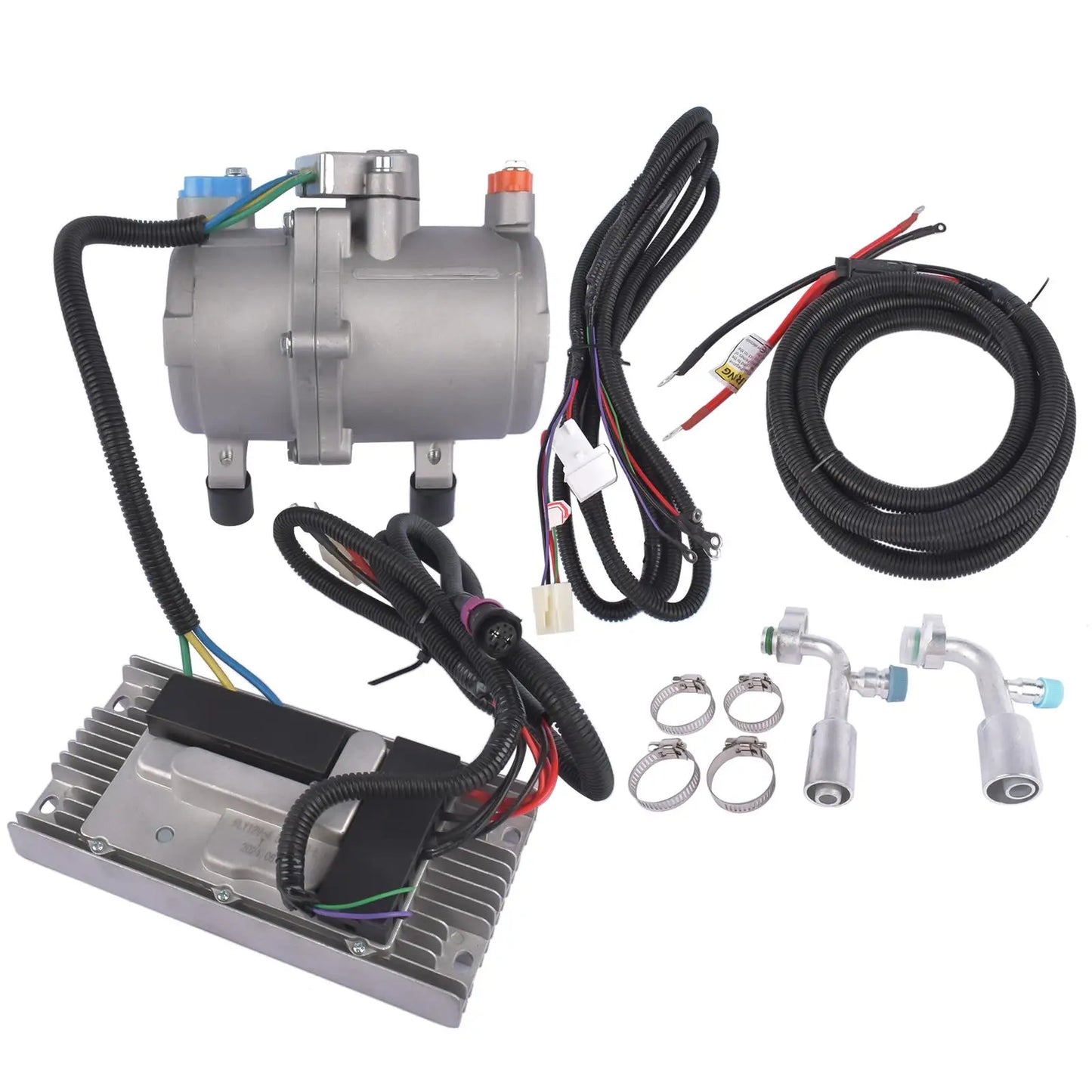

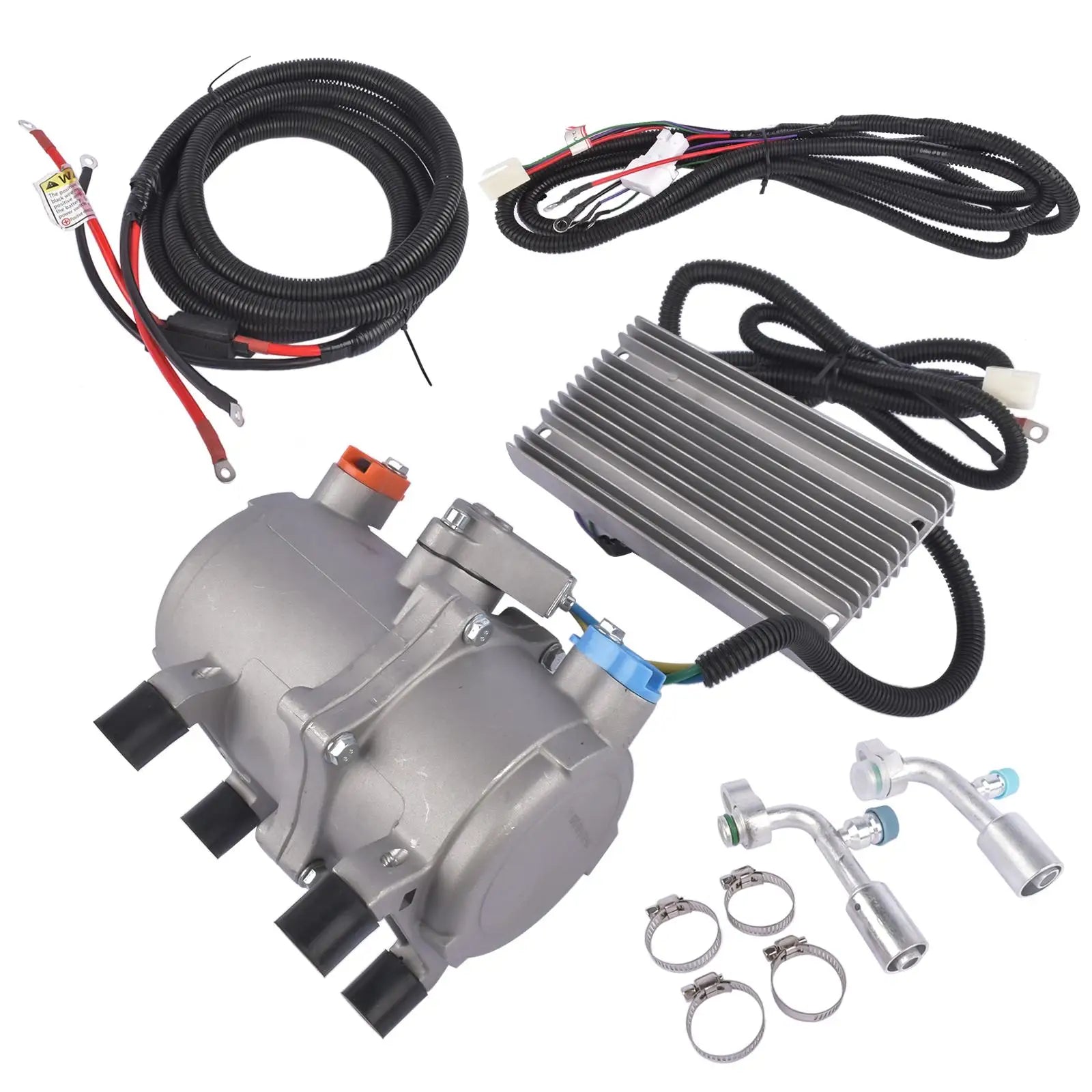

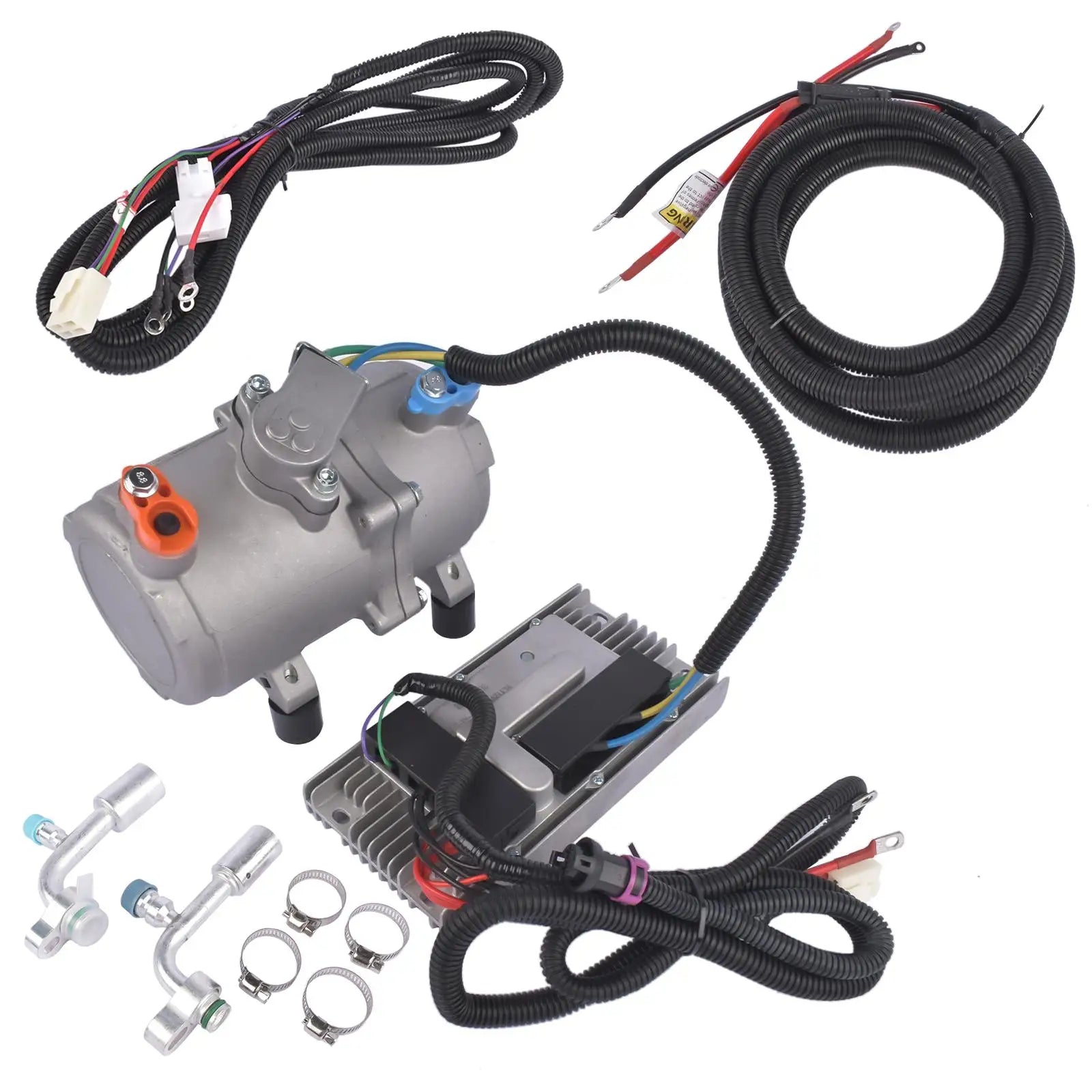

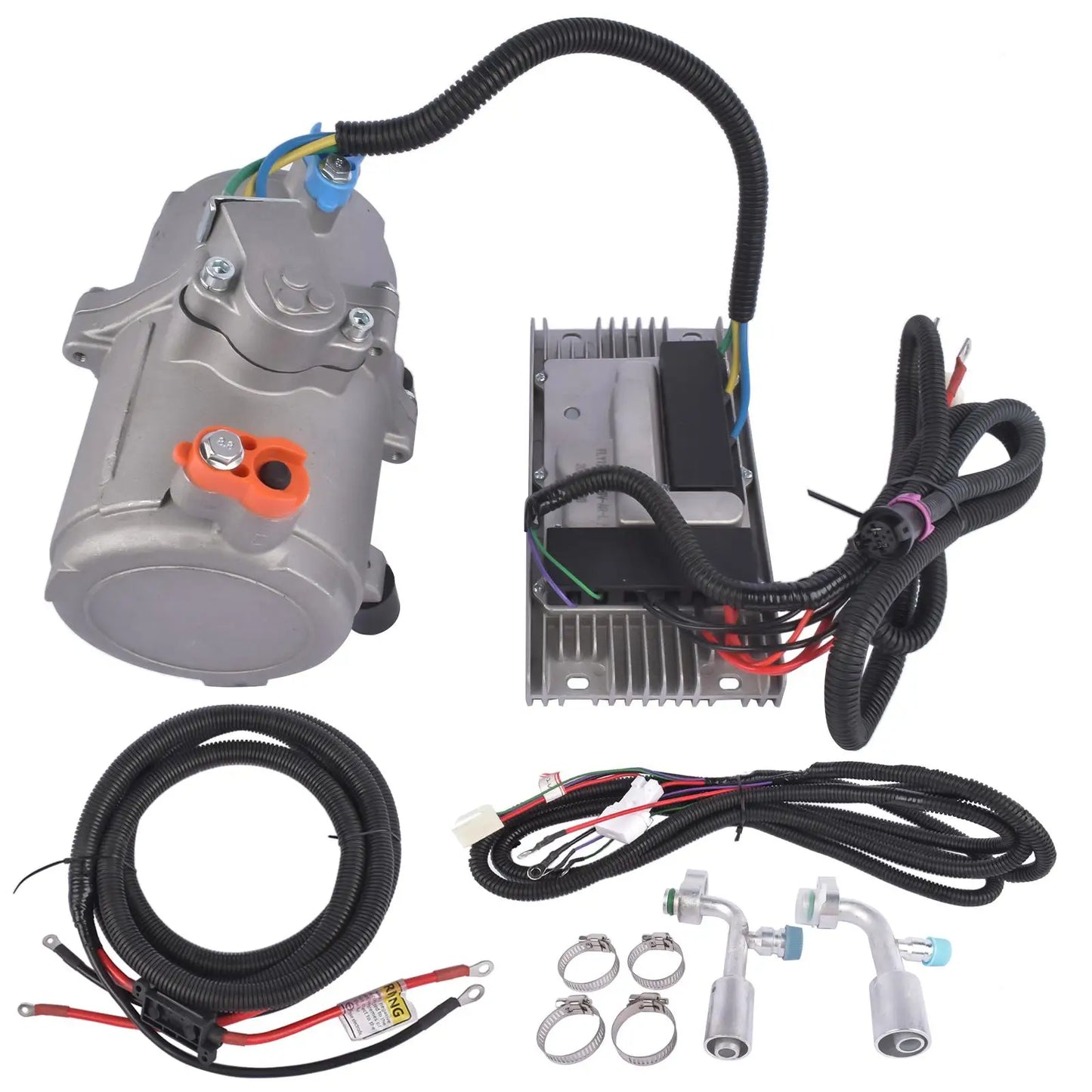

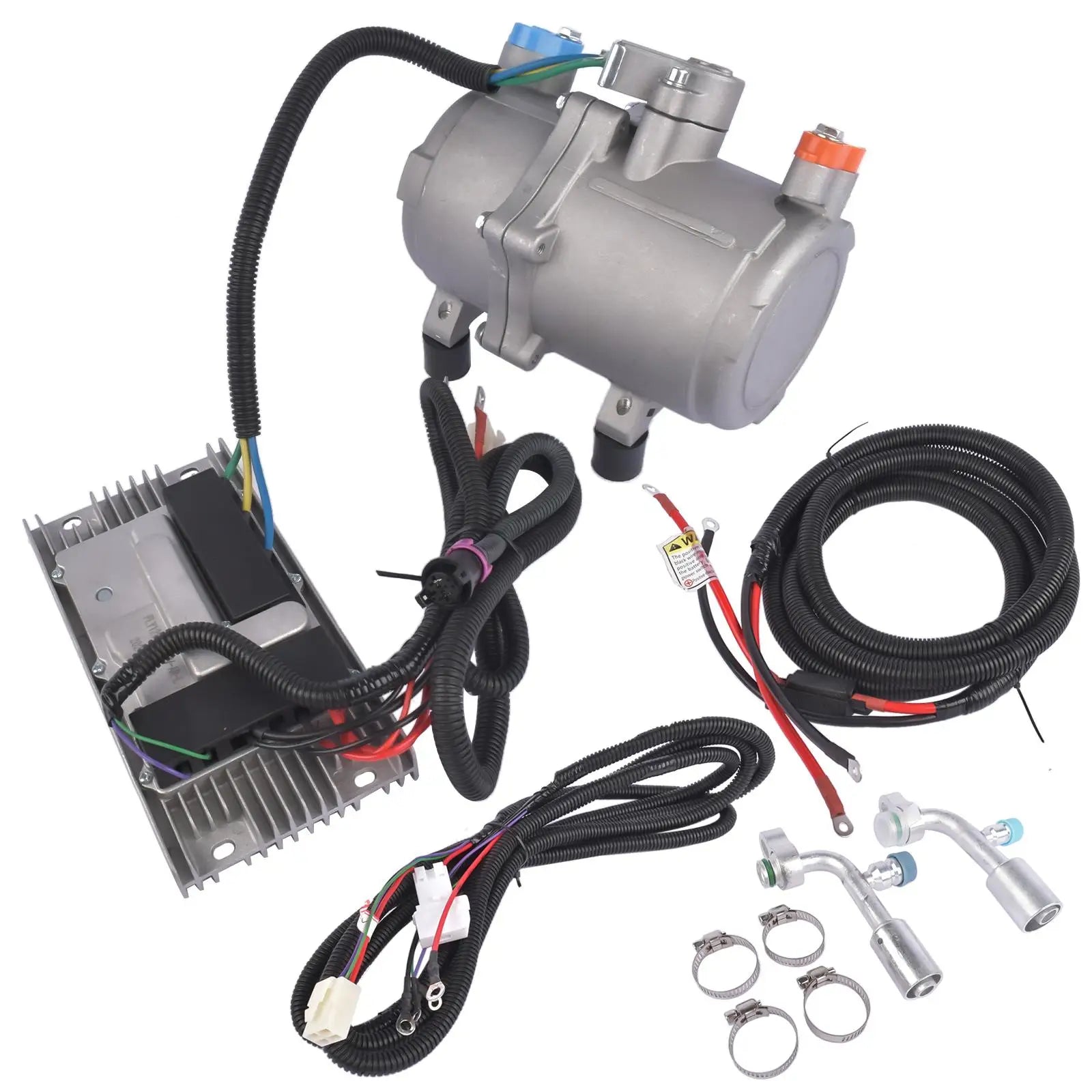

1x Air Conditioning Compressor Kit (As Pics Shown)



Professional installation is highly recommended.
