BSIDE HX1 Thermal Imaging Camera 240X240 Thermal Imager Infrared Temperature Meter For Repair PCB, Pipeline Detection

$216.77 USD
$216.77 USD $246.33 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

SPECIFICATIONS

Brand Name: BSIDE

Certification: CE,FCC,RoHS

Hign-concerned Chemical: None

Model Number: BSIDE HX1

Origin: Mainland China

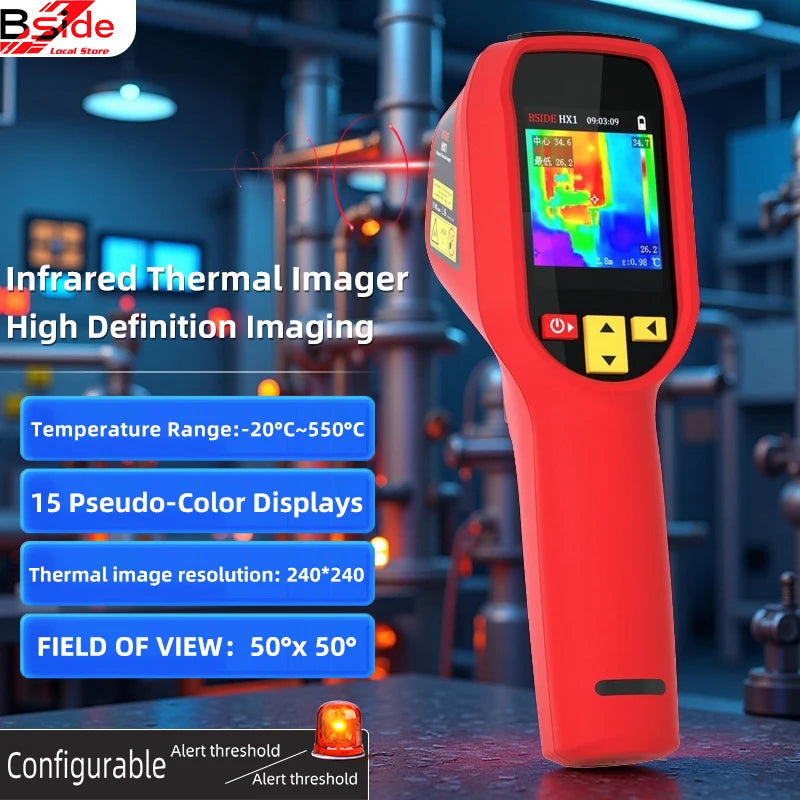

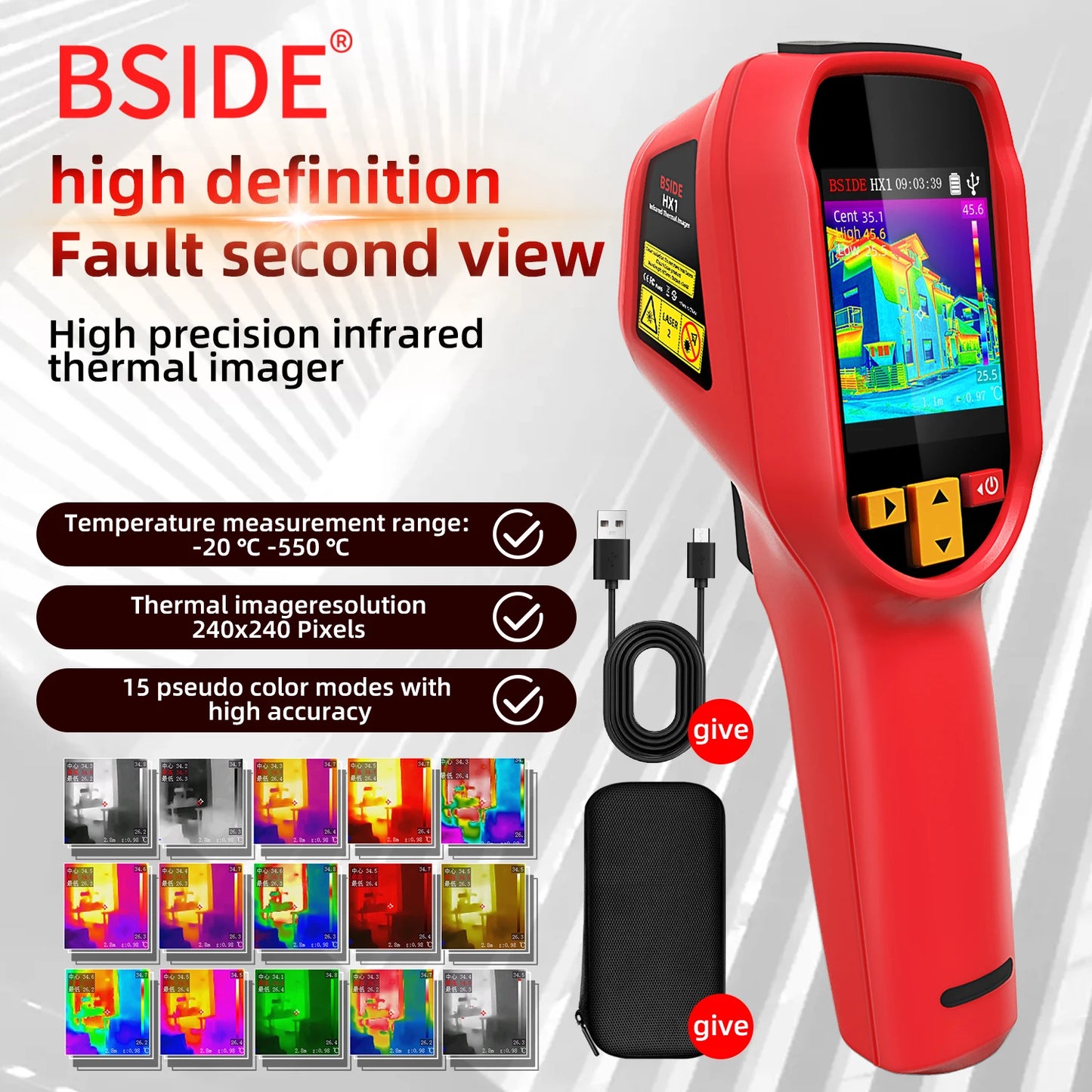

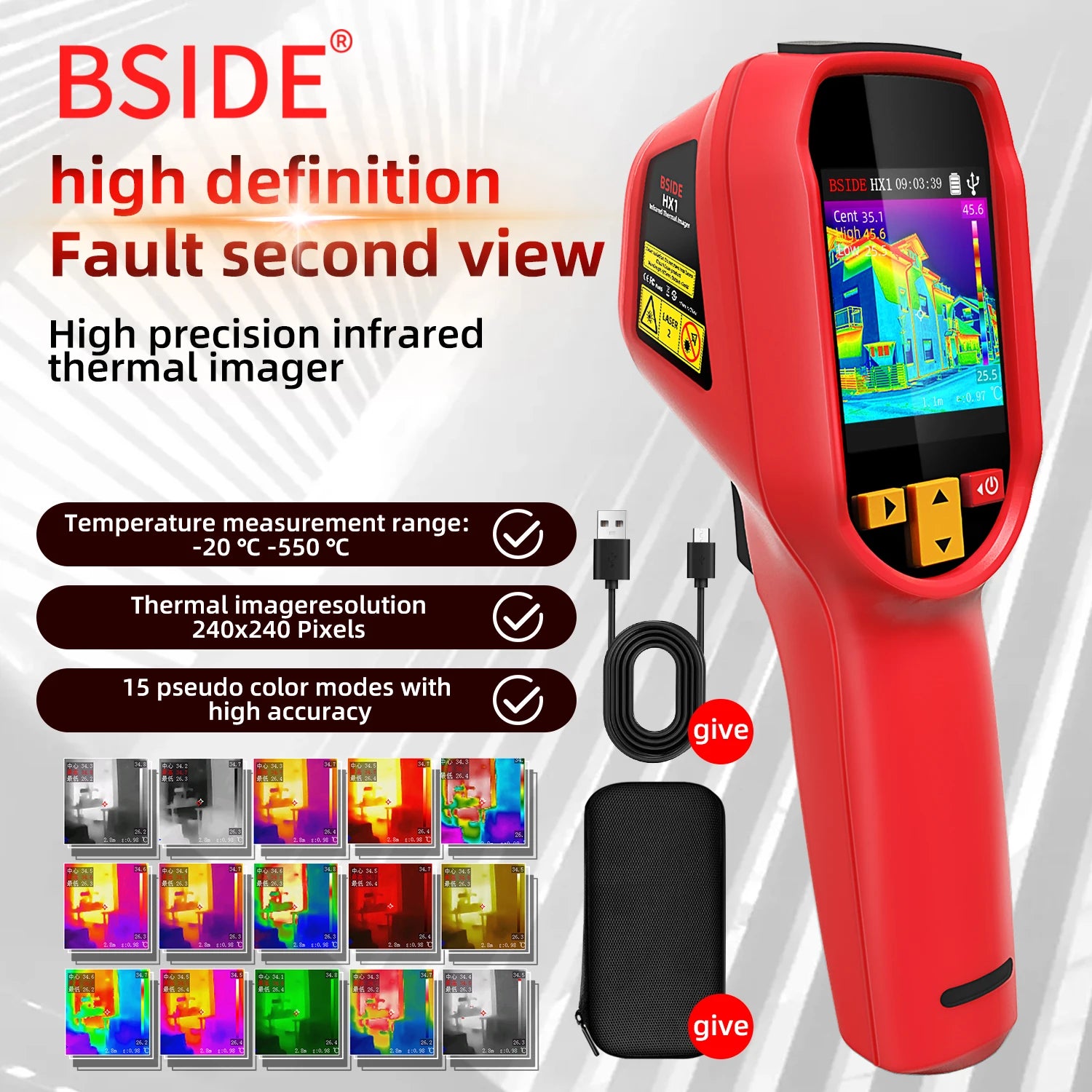

BSIDE Handheld Thermal Imaging Camera-HX1 240×240IR Resolution -20~550C 15 Color Palette PC Analysis Software Industrial Tester

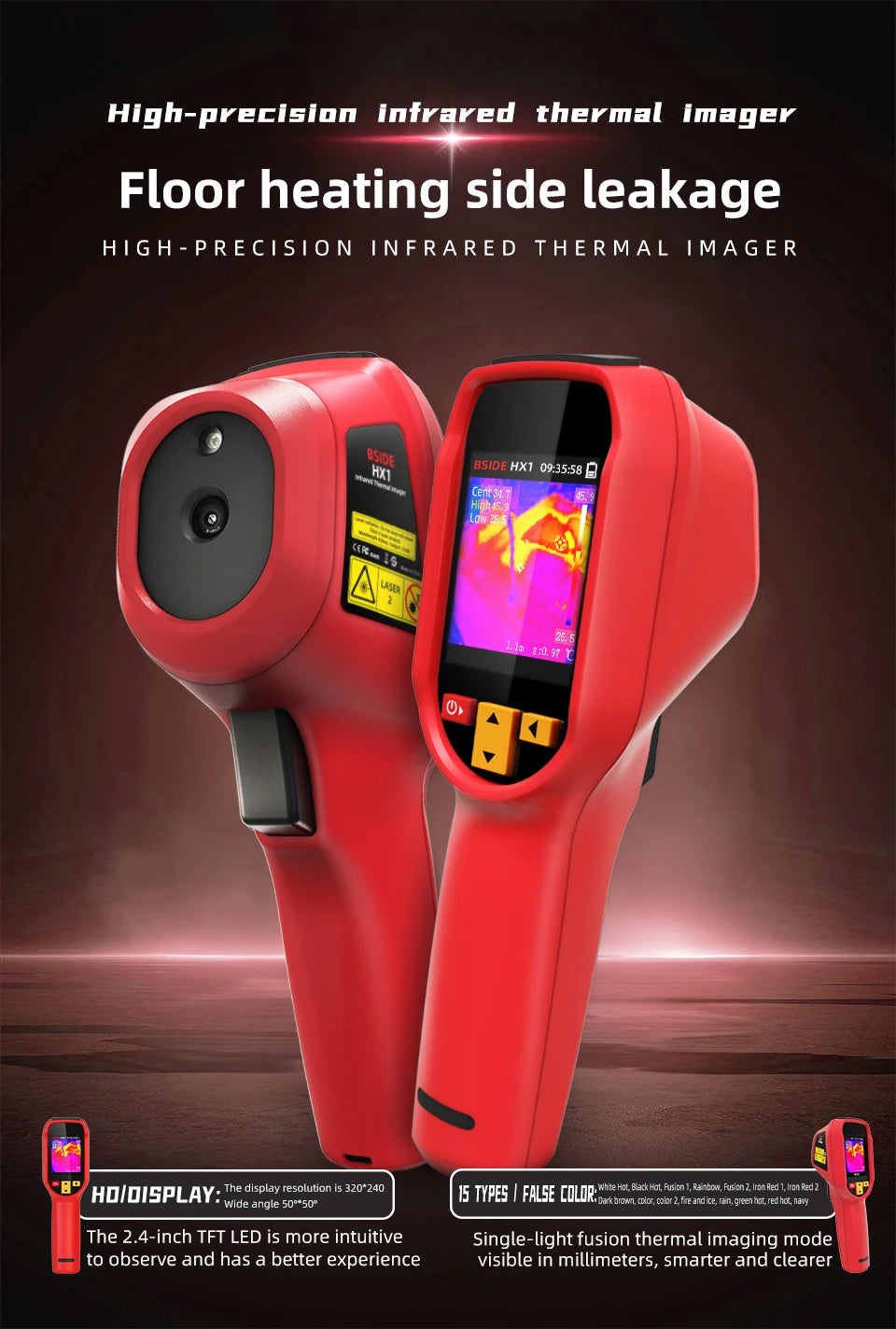

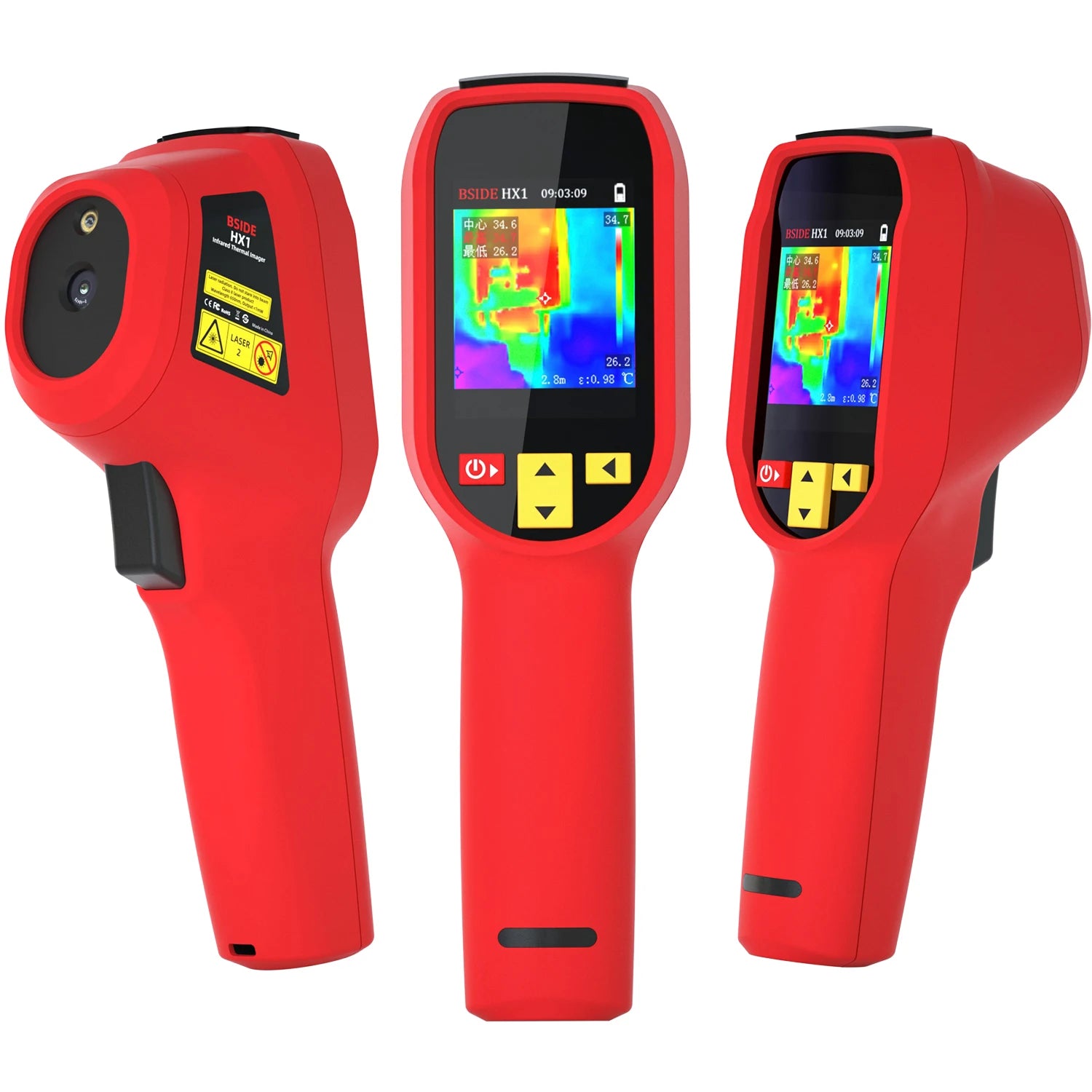

BSIDE HX1 is a brand new handheld thermal imaging camera that combines temperature measurement and imaging.

With IR resolution 240×240，2.4-inch screen，15 pseudo color modes withhigh accuracy High and low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

The body adopts double injection molding process Durable.

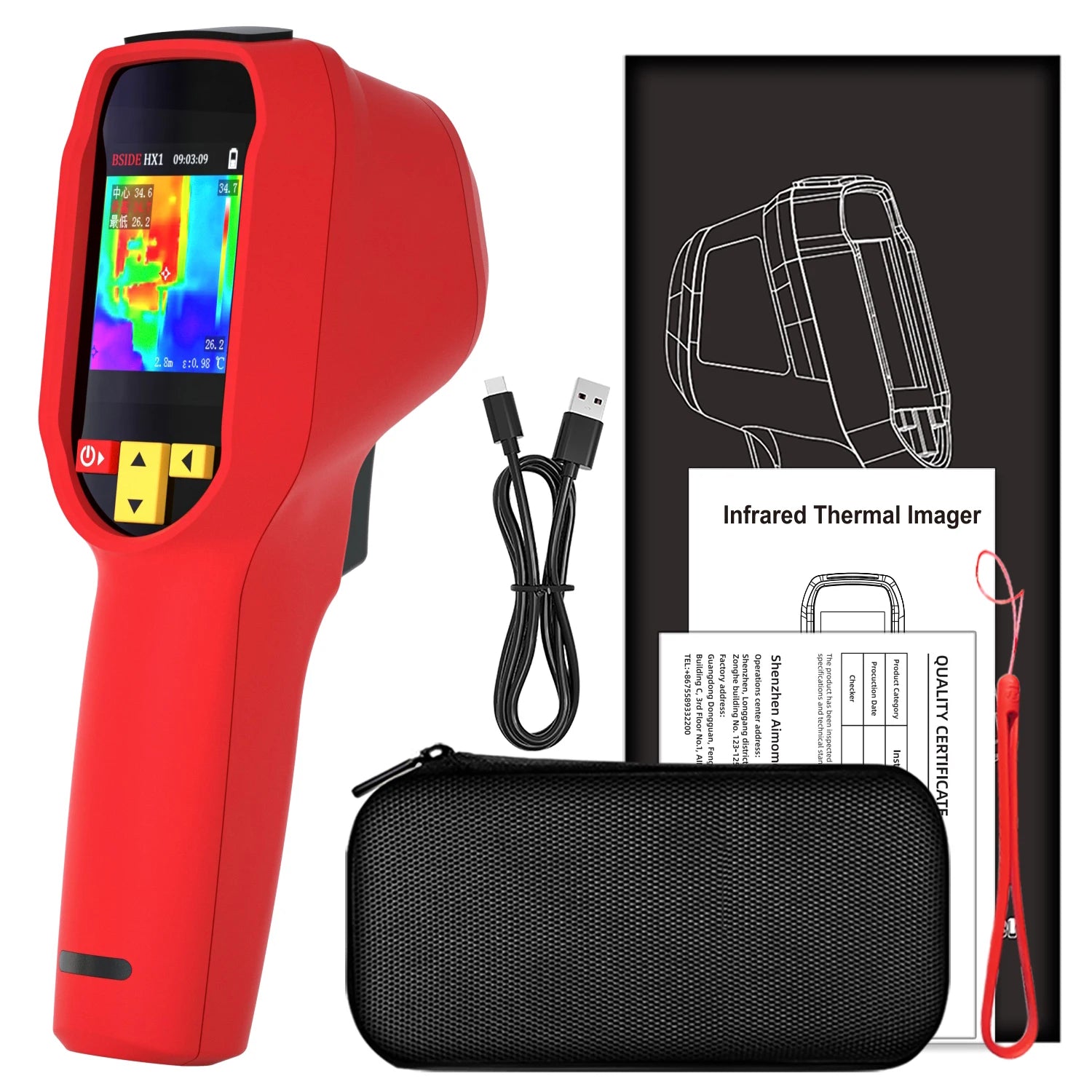

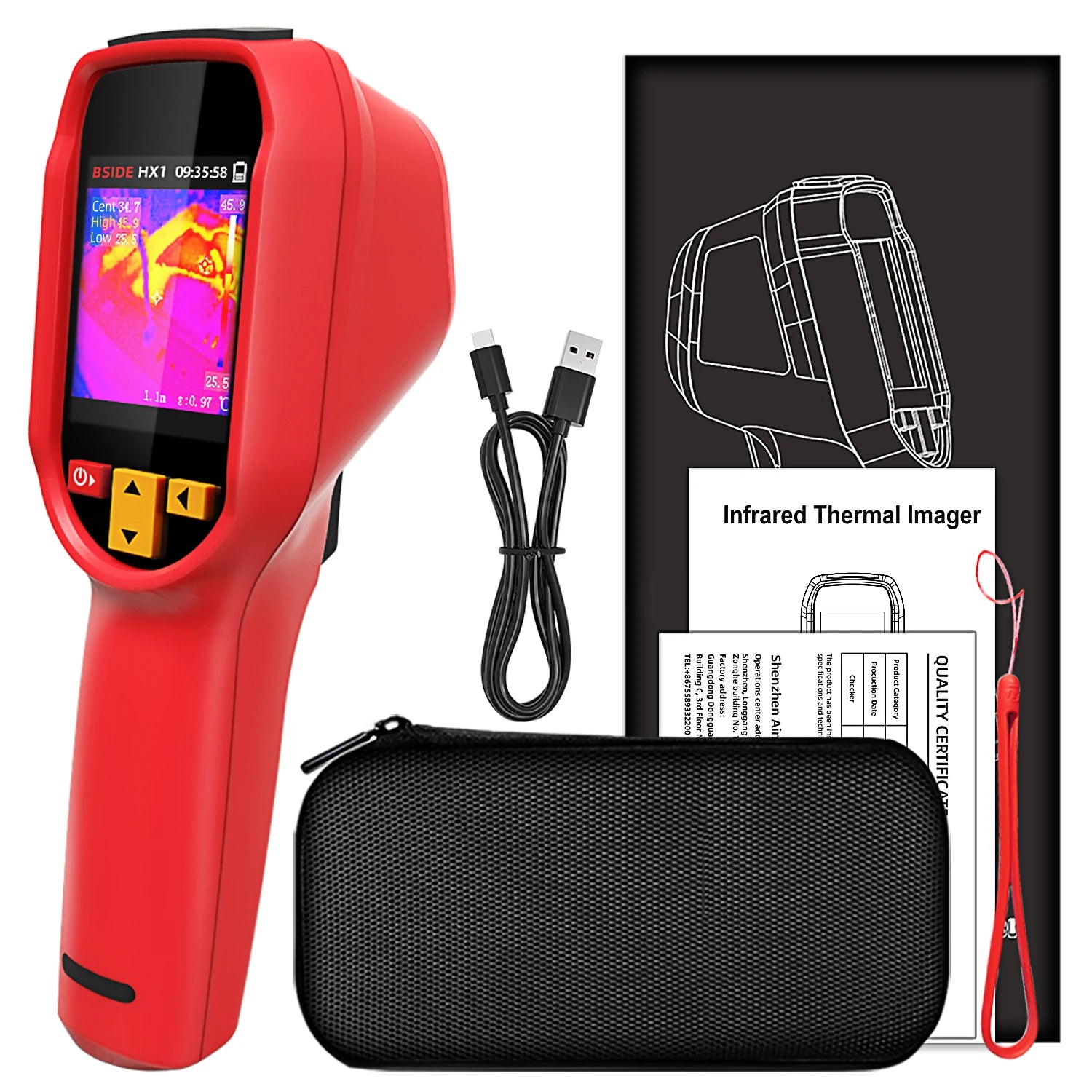

Also comes with a high-quality EVA handbag.


Main features of HX1

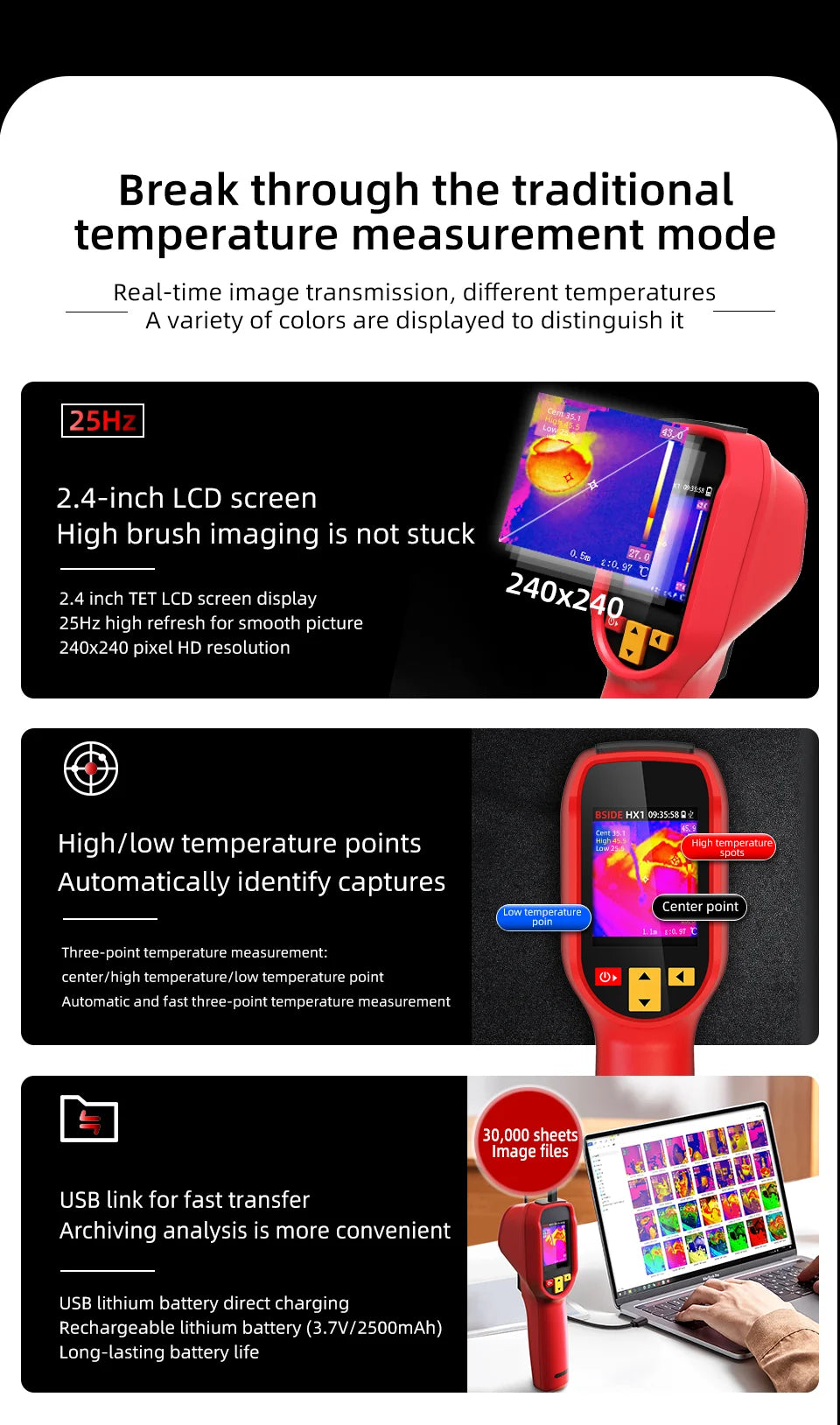

IR resolution: 240 × 240


Screen: 2.4 inch LCD screen


Frame rate: 25Hz


15 pseudo color modes with


Temperature measurement range: -20 °C~550 °C

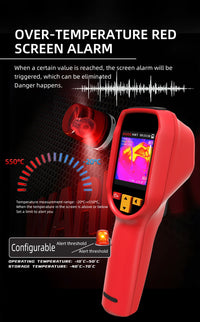

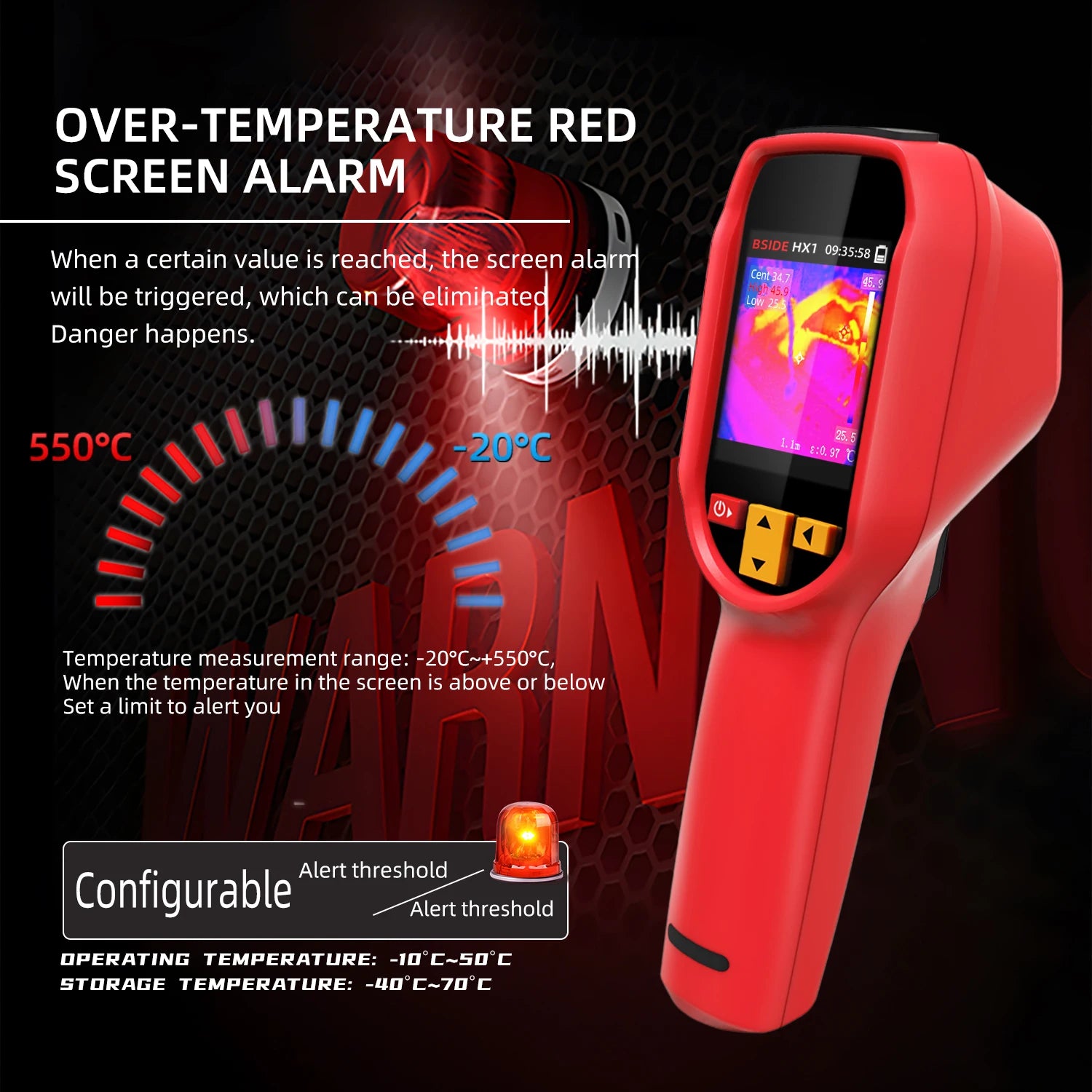

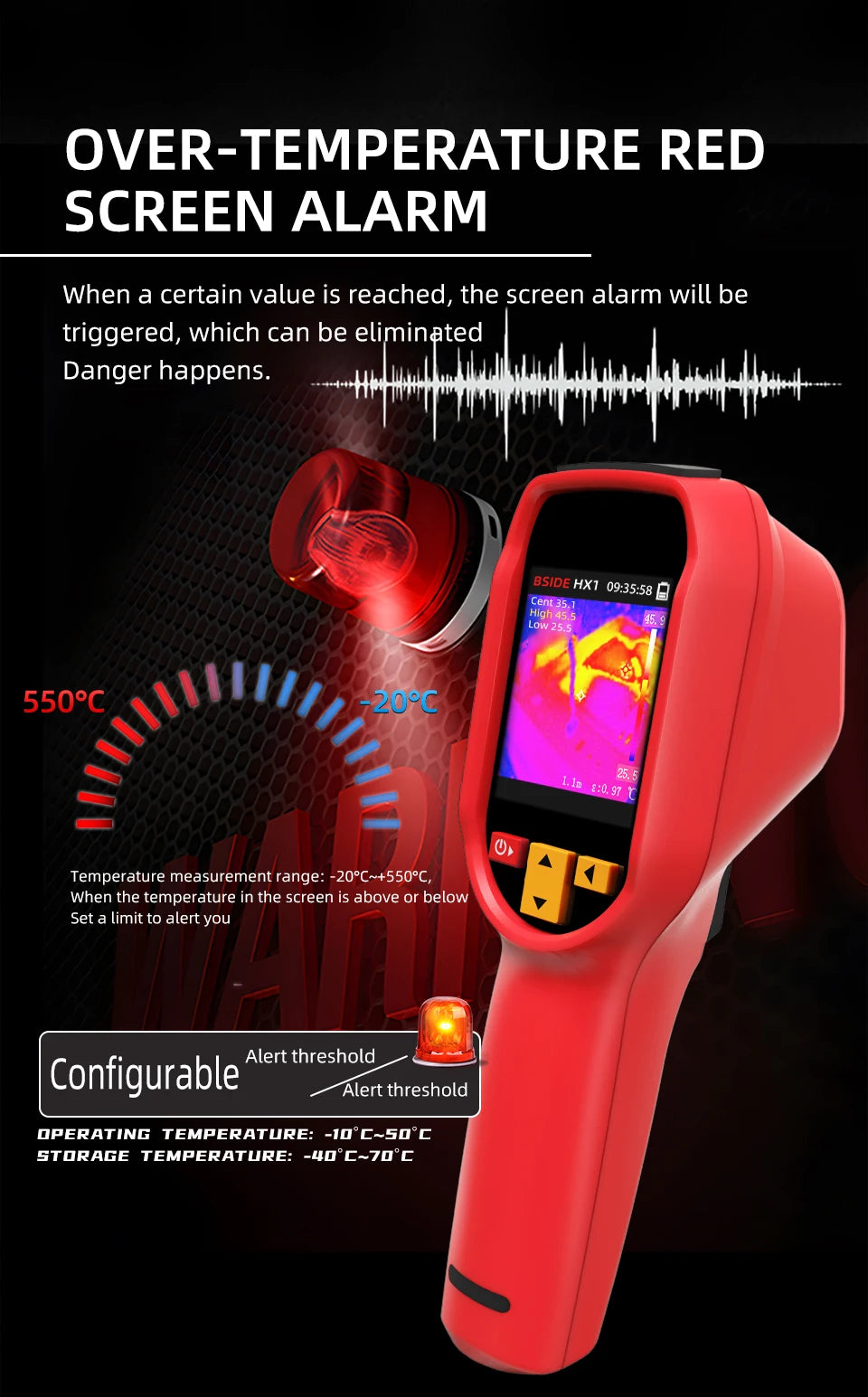

High and low temperature alarms: image, buzz, LED flashing


Laser Indicator/LED Illumination Laser Indicator/LED Illumination


Emissivity: 0.01~1

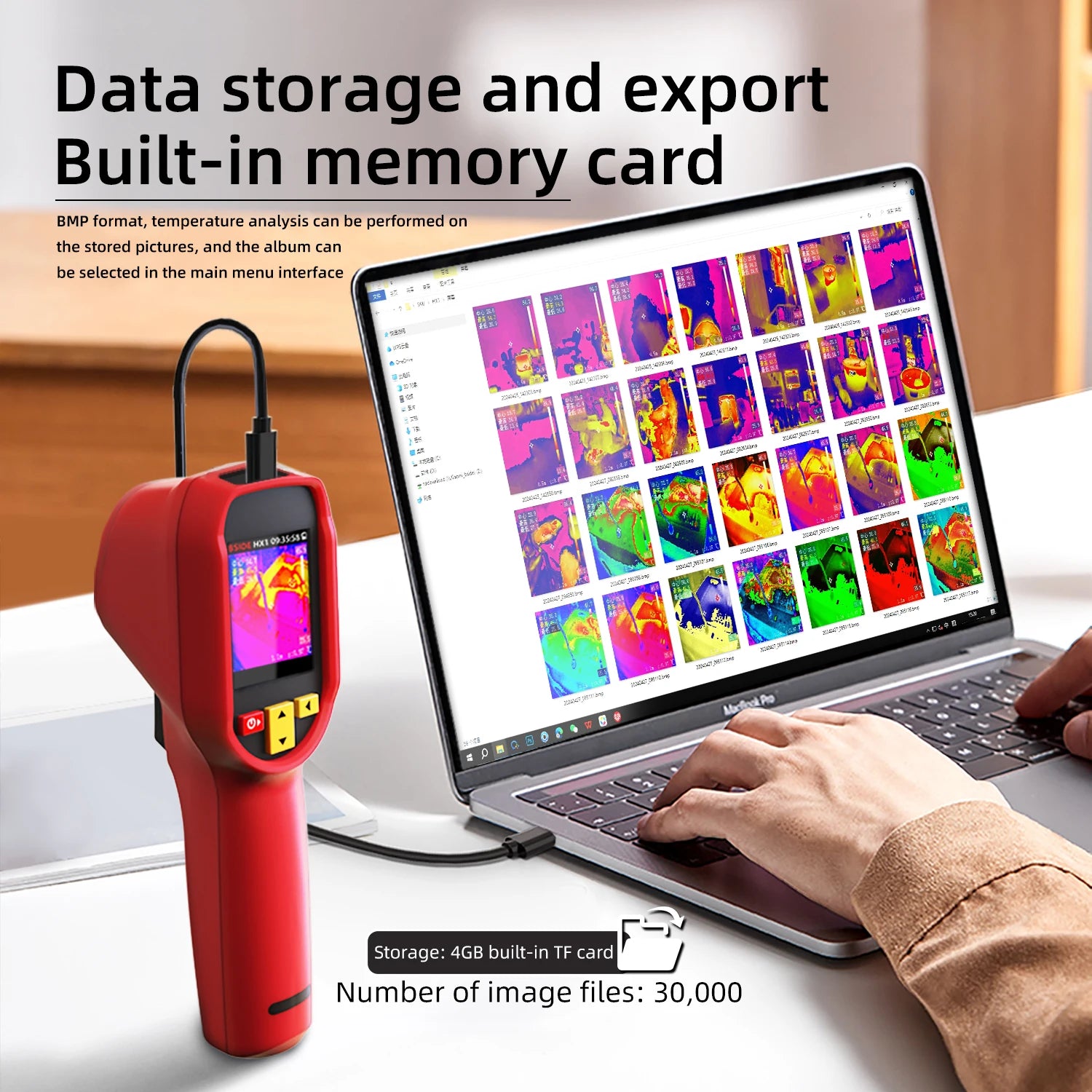

Storage: 4GB built-in TF card


Adjustable emissivity


Power supply: 2500mA lithium battery

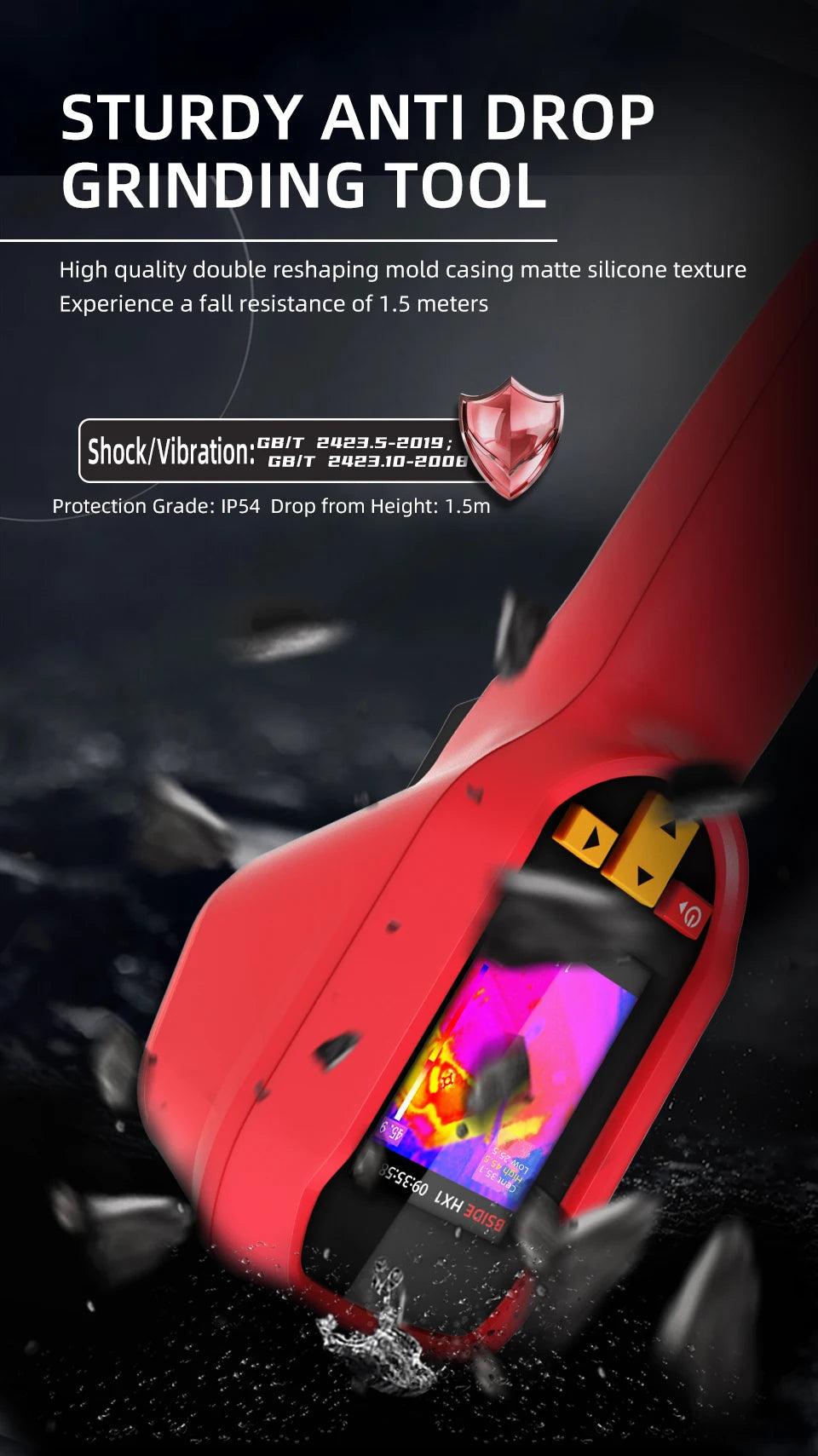

Three-proof design: IP54/1.5m anti-drop


The bottom design has screw holes for use with a tripod


Supports multiple languages: Chinese, English, German, Italian, French, Spanish, Japanese;

Buy early version HX1 buyers, or need to update the Russian language, can download language pack upgrade system through the following link:

https://www.mediafire.com/file/vrcwjz3t738qelc/HX1-Update.rar/file

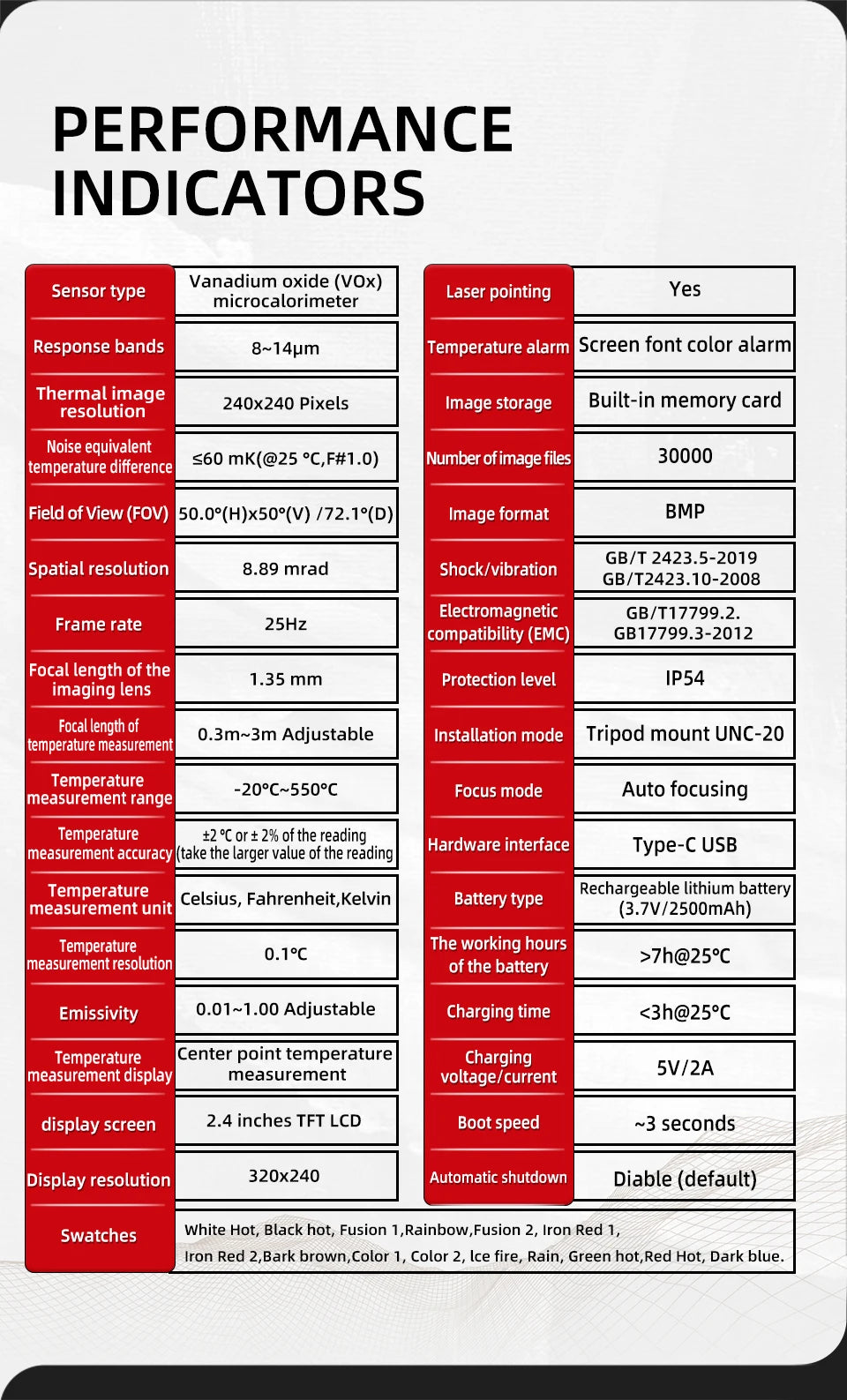

Performance Indicators

Sensor type

Vanadium oxide (VOx) microcalorimeter

Response Band

8~14pm

Thermal image resolution

240x240 Pixels

Noise equivalent temperature difference(NETD)

≤60 mK(@25°C,F#1.0)

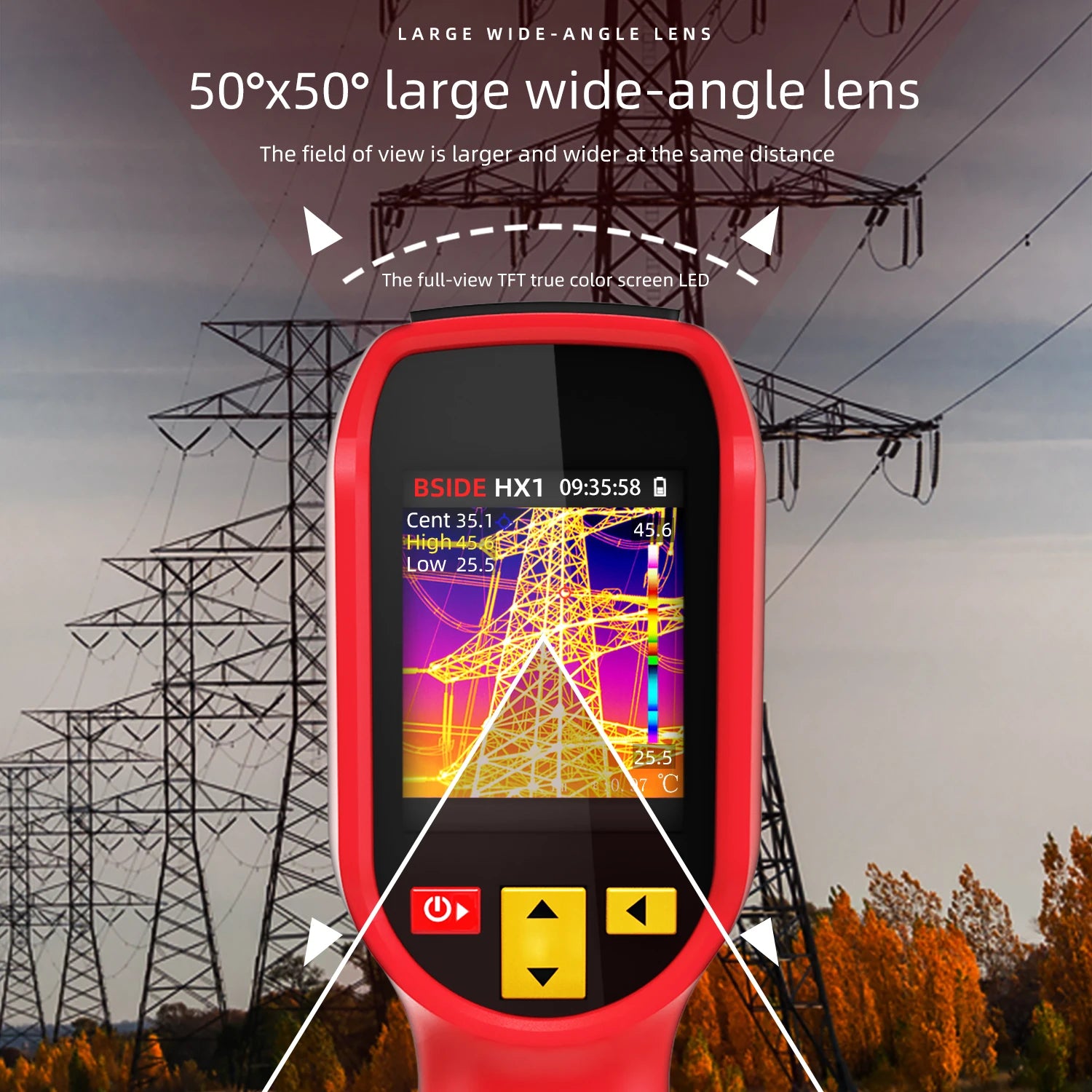

Angle of view(FOV)

50.0°(H)×50°(V)/72.1°(D)

Spatial resolution (IFOV)

8.89 mrad

Frame rate

25Hz

The focal length of the
imaging lens

1.35 mm

Temperature measuring focal length

0.3m~3m Adjustable

Temperature range

-20℃~550℃

Accuracy of temperature measurement

±2℃ or±2%of the reading
(take the larger value of the reading)

Unit of temperature measurement

Celsius,Fahrenheit,Kelvin

Temperature resolution

0.1℃

Emissivity

0.01~1.00 Adjustable

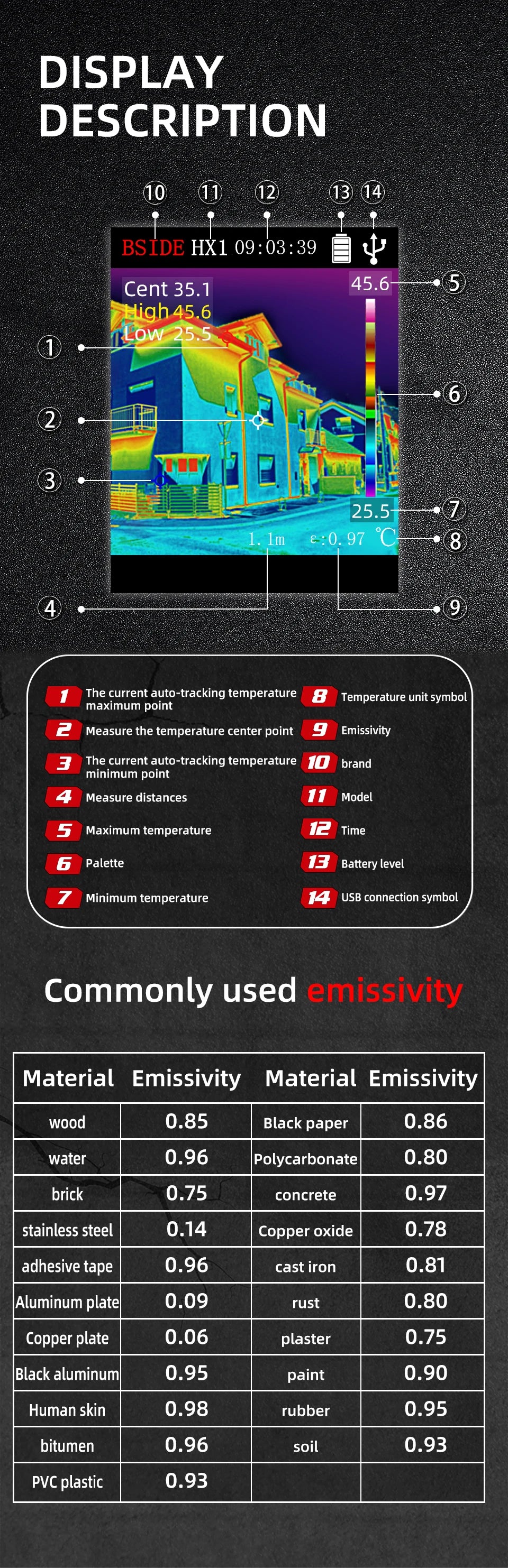

Temperature measurement shows

Center point temperature measurement,
high and low temperature tracking

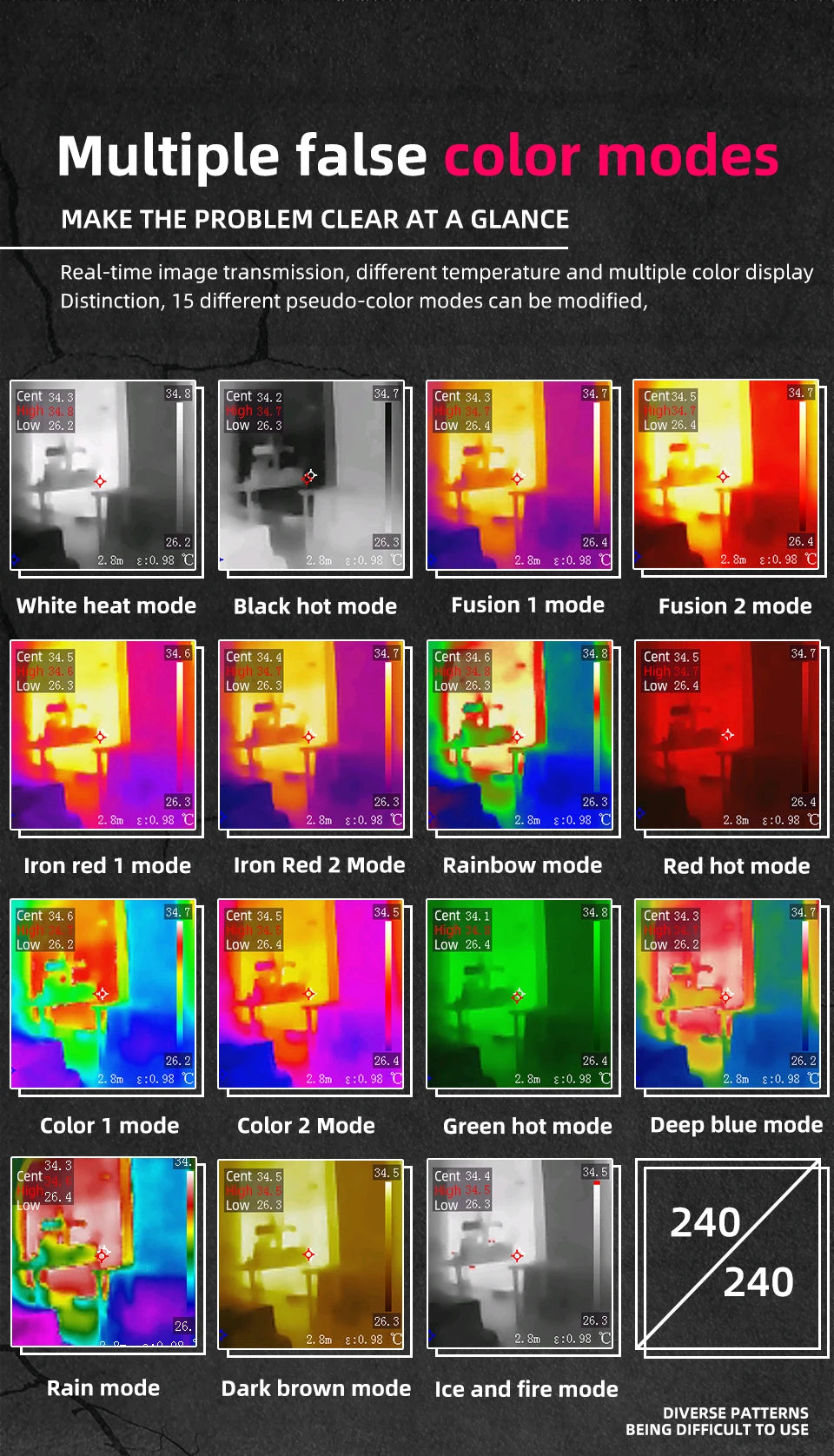

Swatches

White Hot,Black hot,Fusion 1,Rainbow,
Fusion 2,Iron Red 1,Iron Red 2,

Bark brownColor 1,Color 2,

lce fire,Rain,Green hot,
Red Hot,Dark blue

Display screen

2.4 inches TFT LCD

Display resolution

320×240

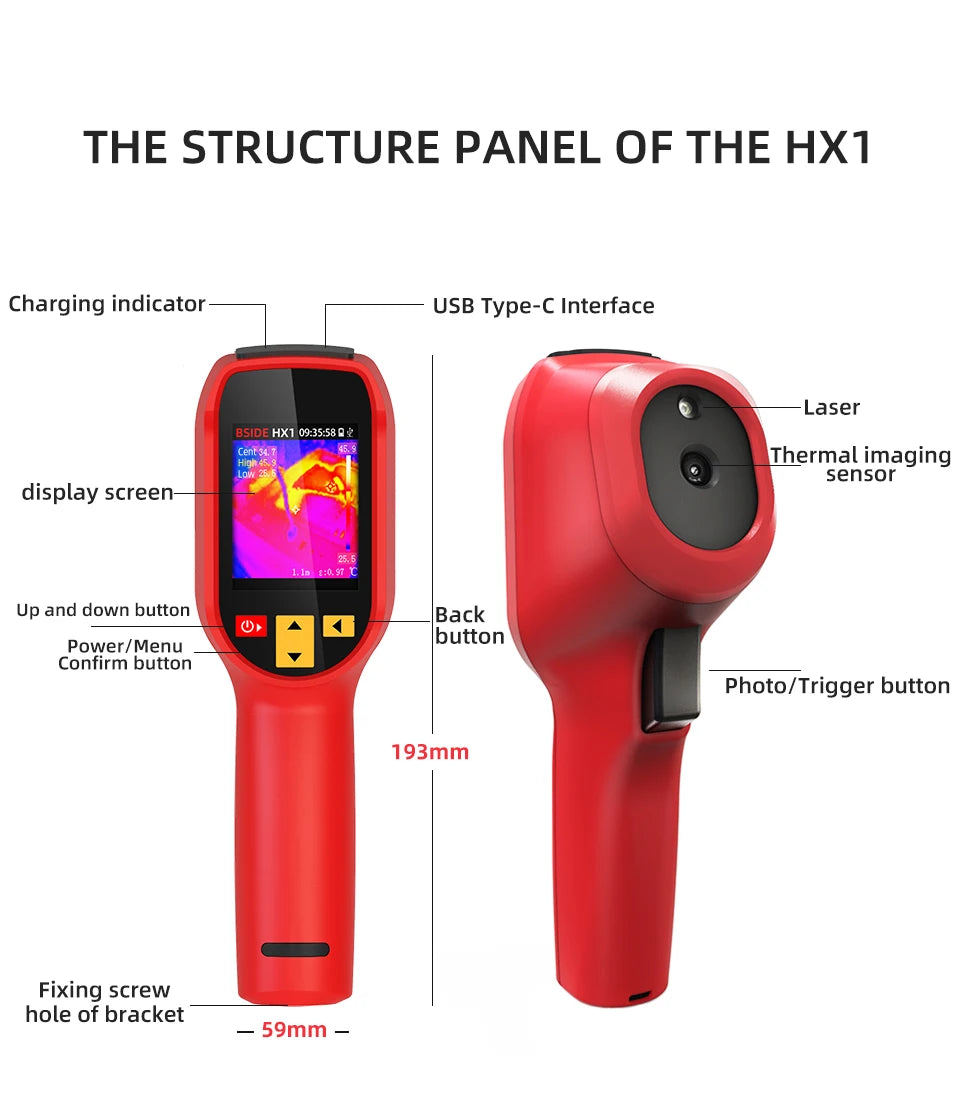

Key

Power Key,up key,Down Key,
Return key,Trigger key

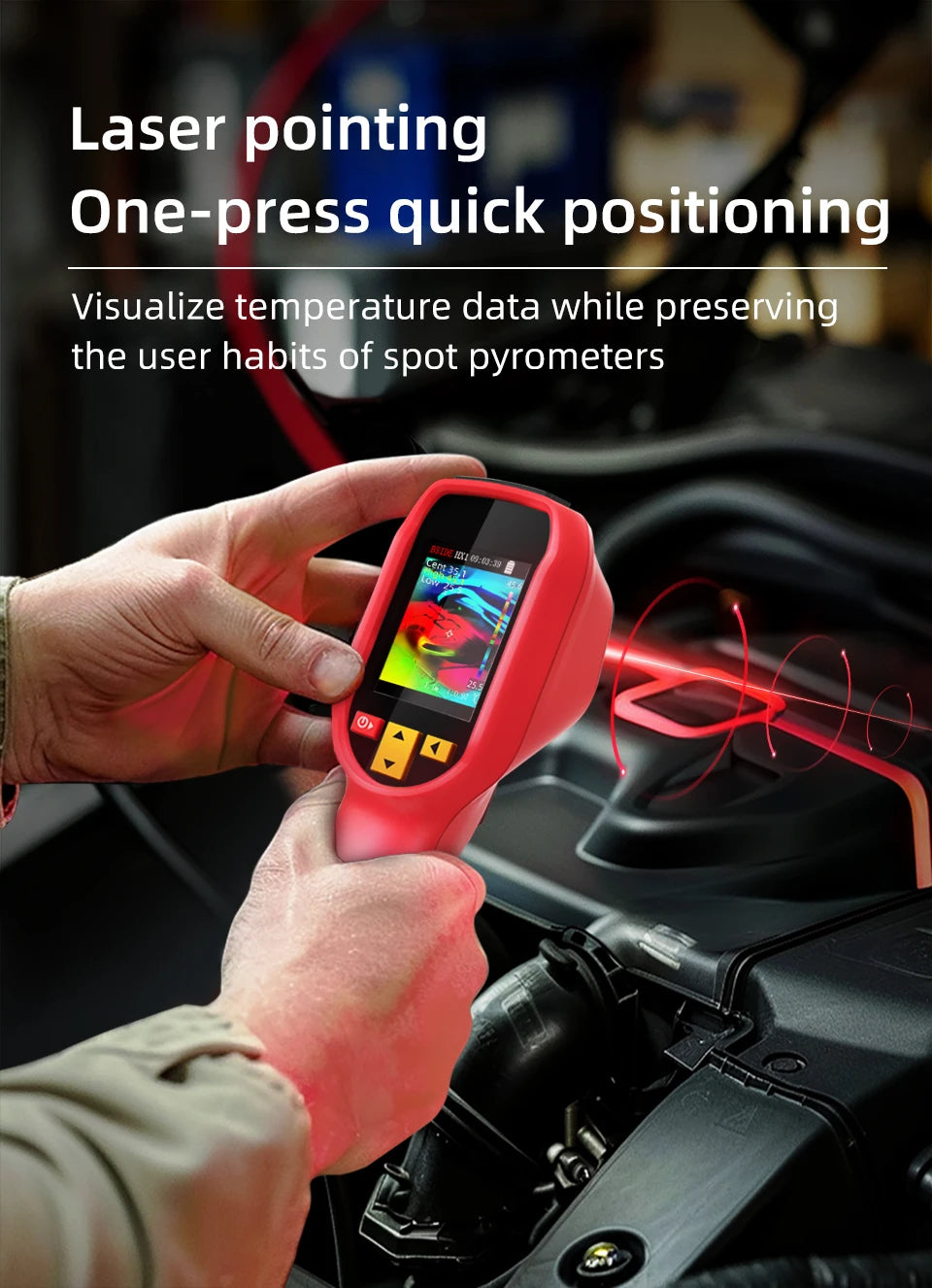

LaserPointer

Yes

Temperature Alarm

Screen font color alarm

Image storage

Built-in memory card

Number of image files

30000

Image format

BMP

Shock/vibration

GB/T 2423.5-2019;GB/T2423.10-2008

Electromagnetic compatibility(EMC)

GB/T17799.2,GB17799.3-2012

Protection level

IP54

Installation mode

Tripod mount UNC-20

Focus mode

Auto focusing

Hardware interface

Type-C USB

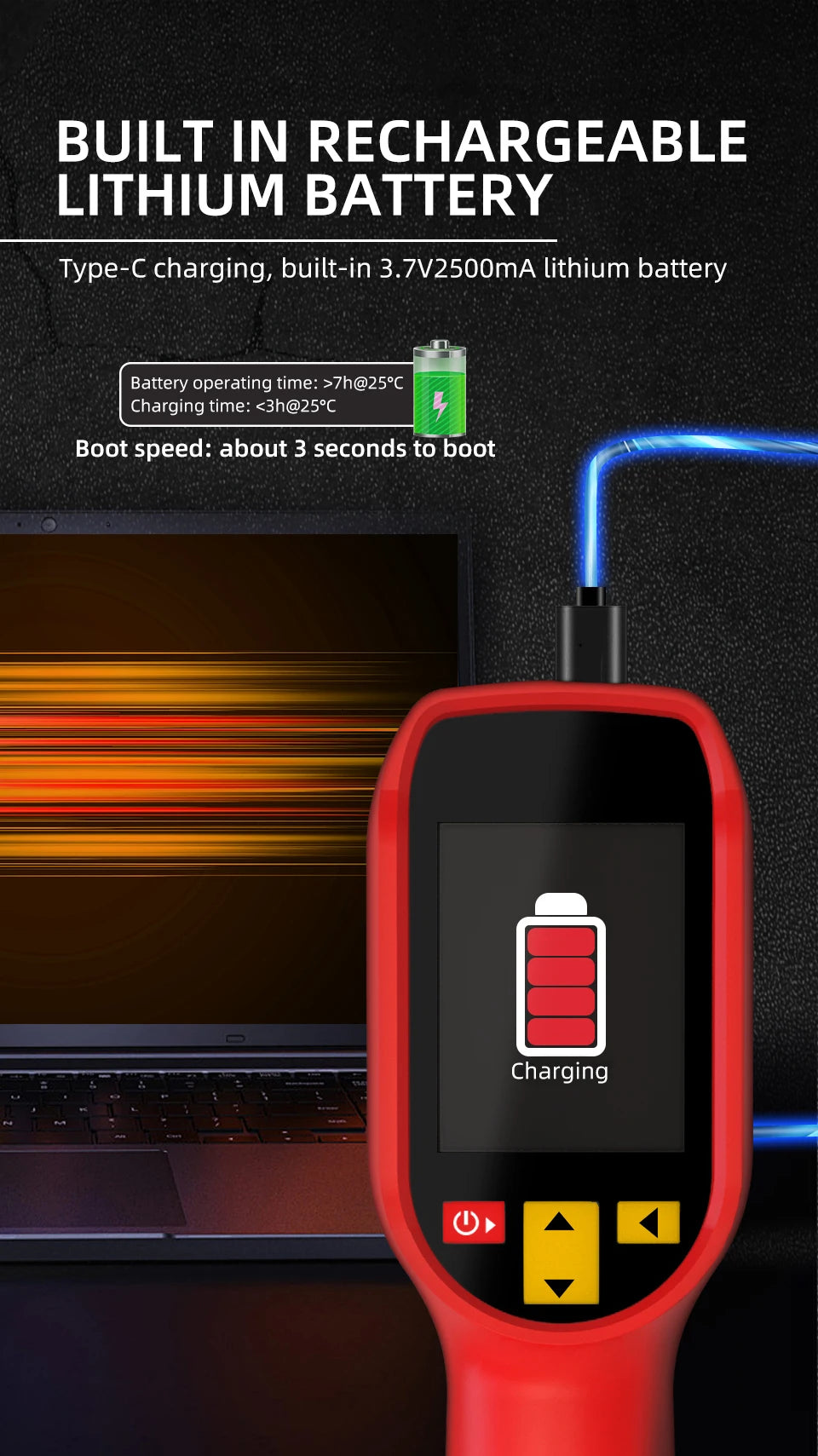

Battery type

Rechargeable lithium battery
(3.7V/2500mAh)

The working hours of the battery

>7h@25℃

Charging time

<3h@25°℃

Charging
voltage/current

5V/2A

Boot speed

~8 seconds

Automatic shutdown

Diable(default)
(optional 10 Min,20 Min,30 Min,
40 Min,50 Min,60 Min,Disable)

Operating temperature

-10°C~50°C

Storage temperature

-40°C~70°℃

Working humidity

≤85%RH(Non-condensing)

Drop

1.5m

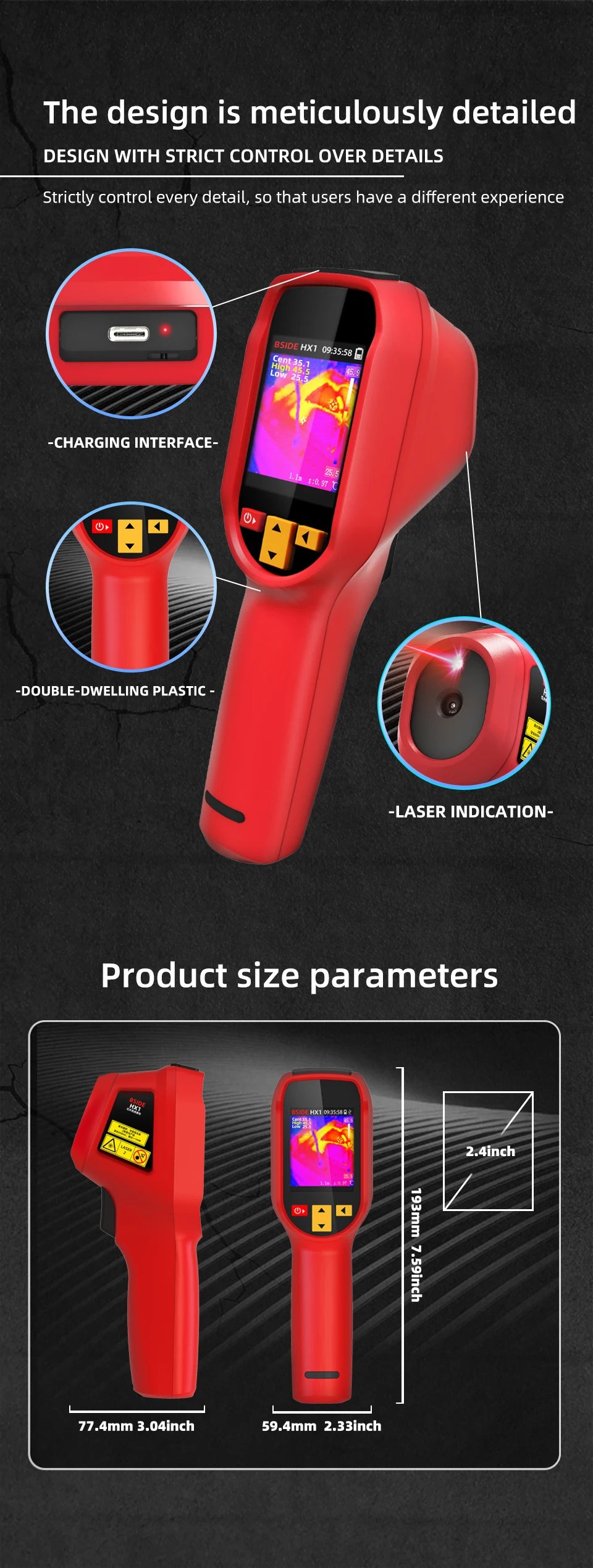

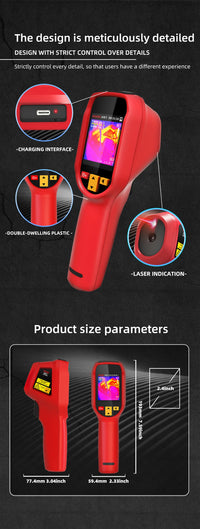

Product dimensions

193.4*59.4*77.4mm

Product weight

277g
