SPECIFICATIONS

12CH Video resolution : 8ch 8MP, 12ch 5MP/4MP/3MP/1080P/720P

20CH Video resolution : 8ch 8MP, 16ch 5MP, 20ch 4MP/3MP/1080P/720P

Alarm Type: FTP Photo,Email Photo,Local Alarm

Audio Input: 1 Channel

Backup Type: Hard Drive,Recorder,USB Flash Divers

Brand Name: BOAVISION

Certification: CE

Communication Interface: None

Compression Format: H.265,H.264

Hard Disk Drive (HDD): Up to 8TB hard drive

Hard Drive Size: 3.5''

Hard drive Interface Type: USB

Hign-concerned Chemical: None

IP Mode: Dynamic IP address,Static IP address

Model Number: NVR3112B / NVR3120B

Network Interface: RJ45 10/100M

Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS

ONVIFcompatible : Support onvif

Origin: Mainland China

POE: None

Phone APP : videolink

Smart home platform: Other

Supported Mobile Systems: iPhone OS,Android

Supported Operating Systems: Microsoft Windows 7

Technology: Network

Two-way Audio: No

Video Input : 10CH / 20CH

Video Input Interface: HDMI-Compatible

Video Output: 1VGA + 1HDMI-Compatible

Video Standard: NTSC,PAL

e-Cloud(P2P): Yes

The following NVR / POE Switch /POE Cameras can be compatible with each other for all functions . We advice to use them together ! All the devices are onvif-compatible , can be work with third party NVR & cameras !

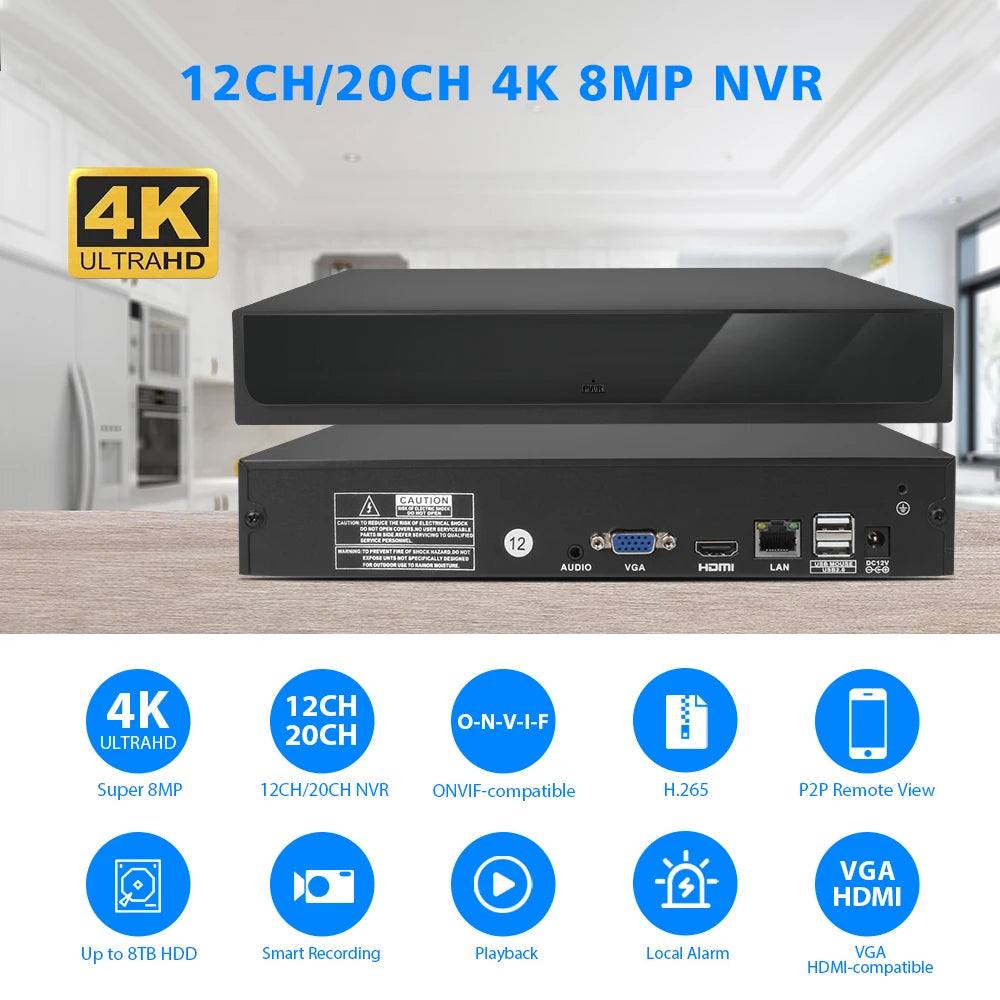

12CH / 20CH 4K 8MP NVR

Super HD 8MP Resolution

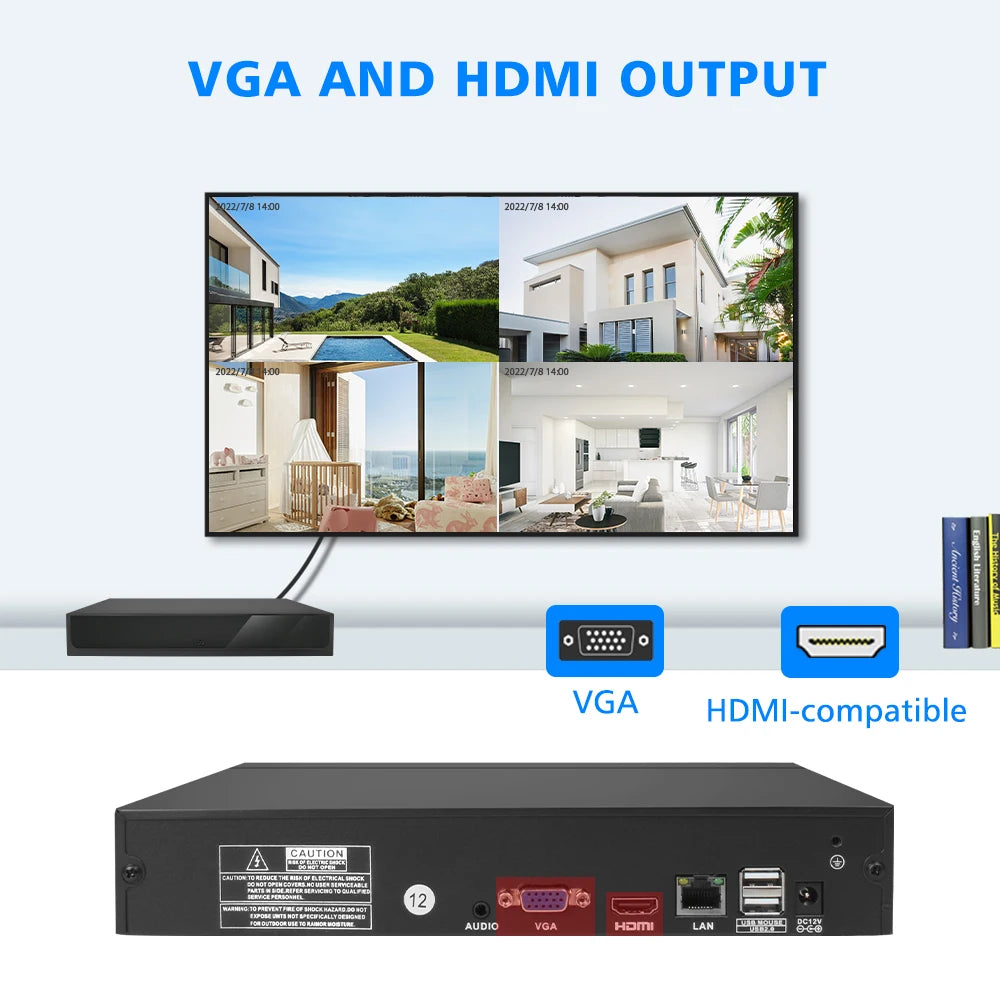

VGA and HD Output

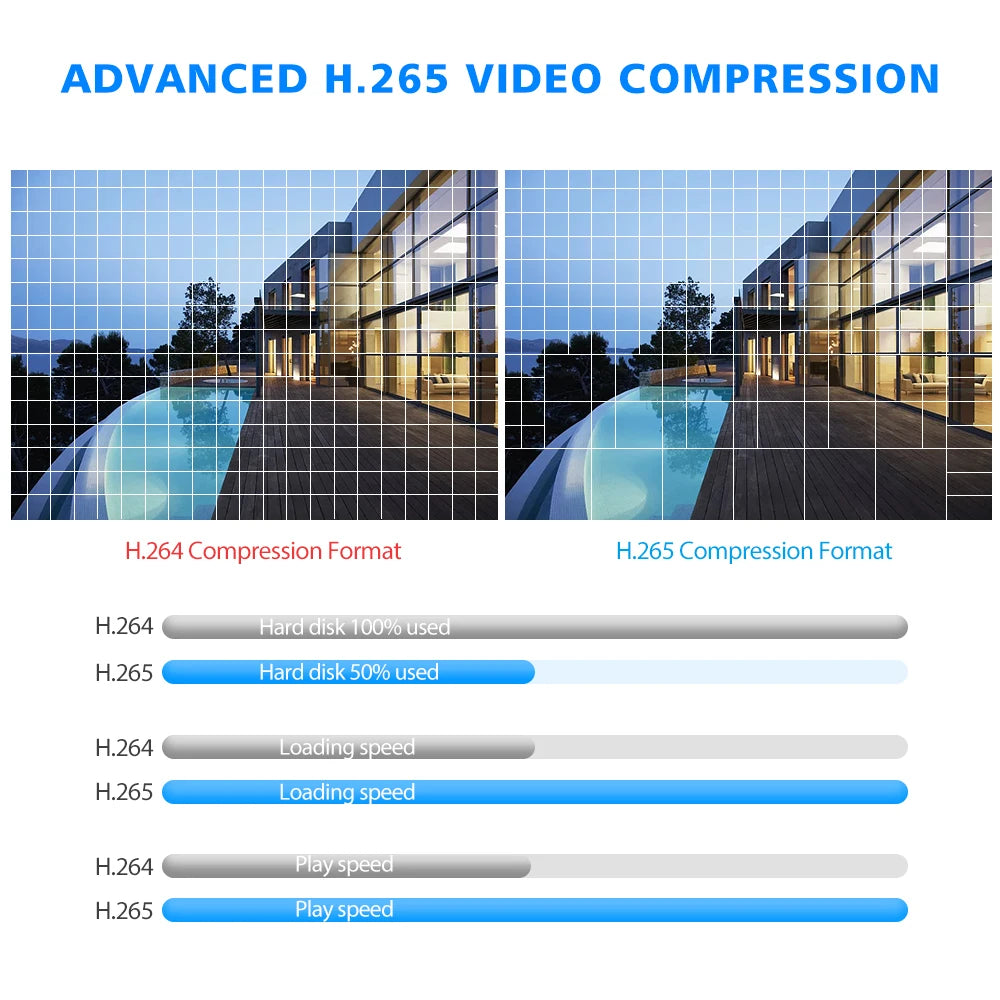

Advanced H.265 Video Compression

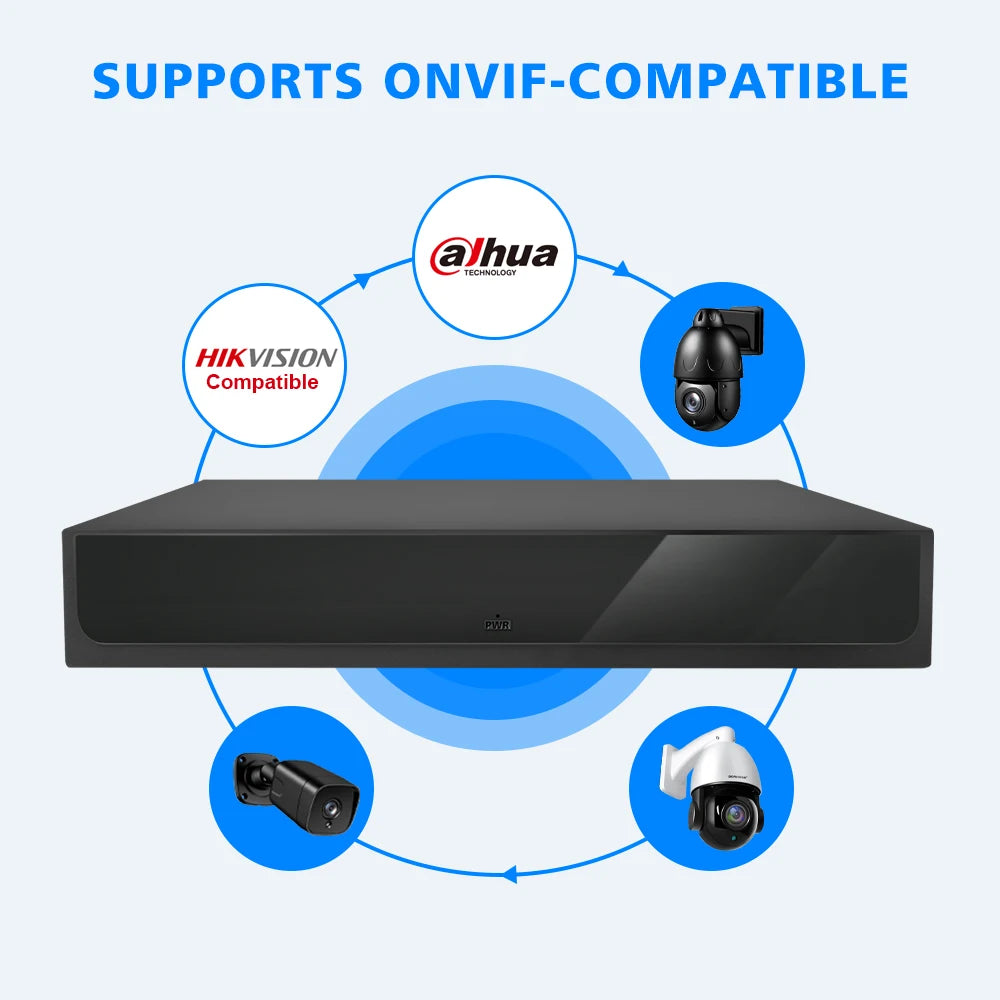

Support Third Party Onvif Cameras

Work with other brand cameras through onvif protocol.

If your home lack some security cameras ,

pls click the following picture to check more our BOAVISION cameras which we 100% recommend to work with this NVR .

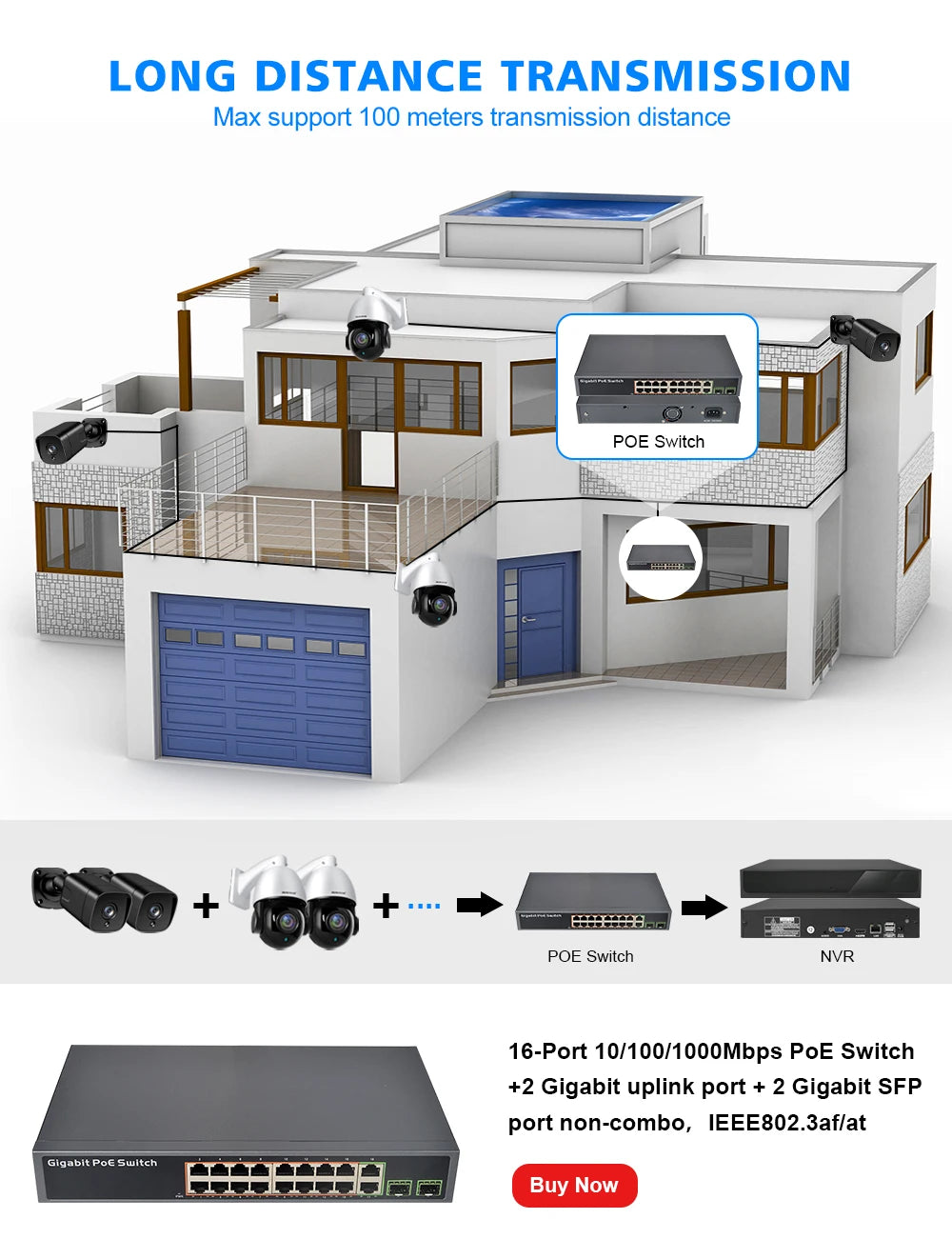

Long distance transmission
Max support 100 meters transmission distance;

If you purchase the recommended BOAVISION POE Cameras,

and interested to DIY assemble a Video Surveillance system Kit ,

we advise to purchase this POE switch together which is 16-Port 10/100/1000Mbps +2 Gigabit uplink port + 2 Gigabit SFP port ， IEEE802.3af/at , help your camera system work more stable .

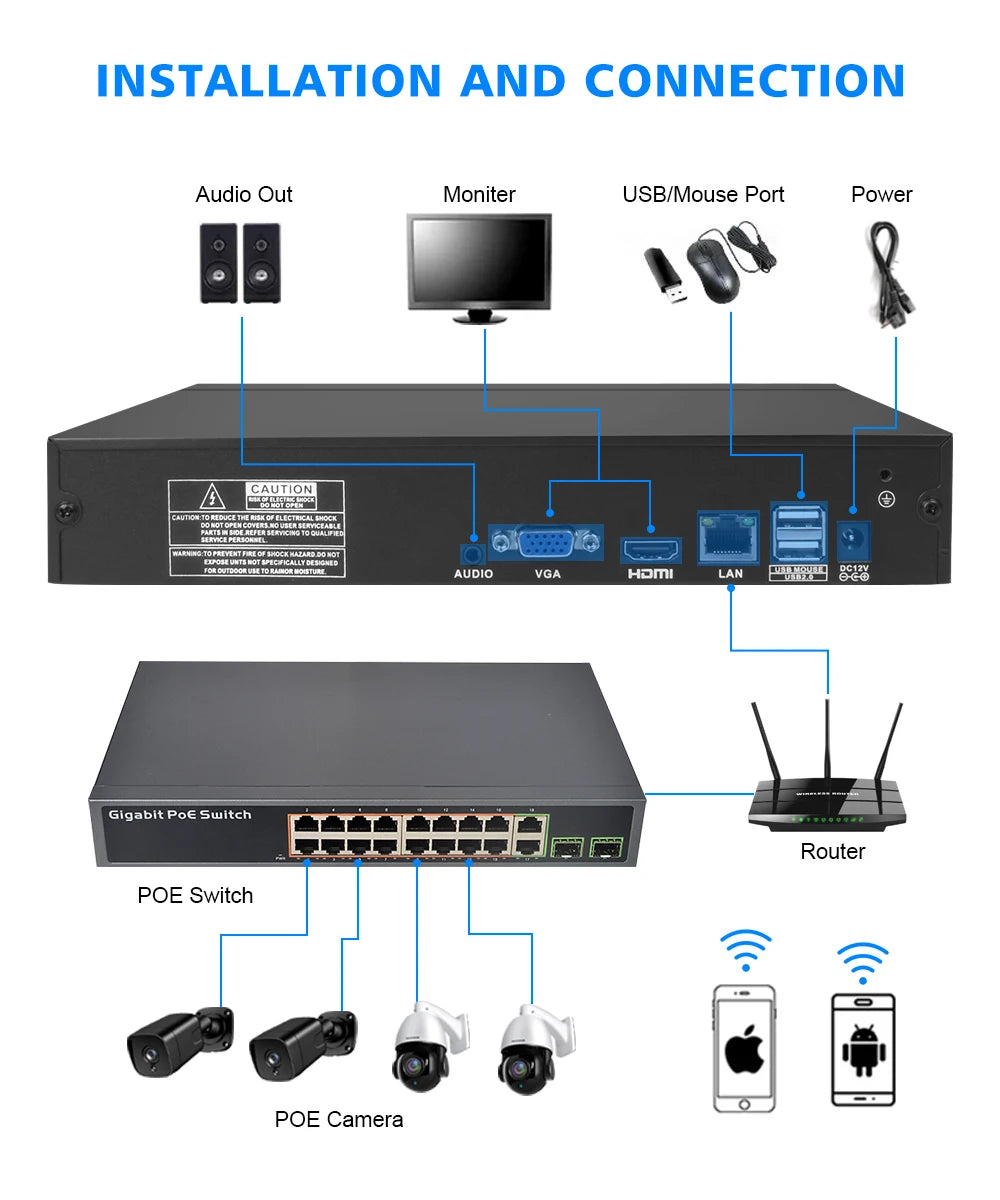

Installation and Connection

Motion Detection and Instant Email Alert

Smart Video Playback

P2P Remote Access Anytime & Anywhere (APP : Videolink)

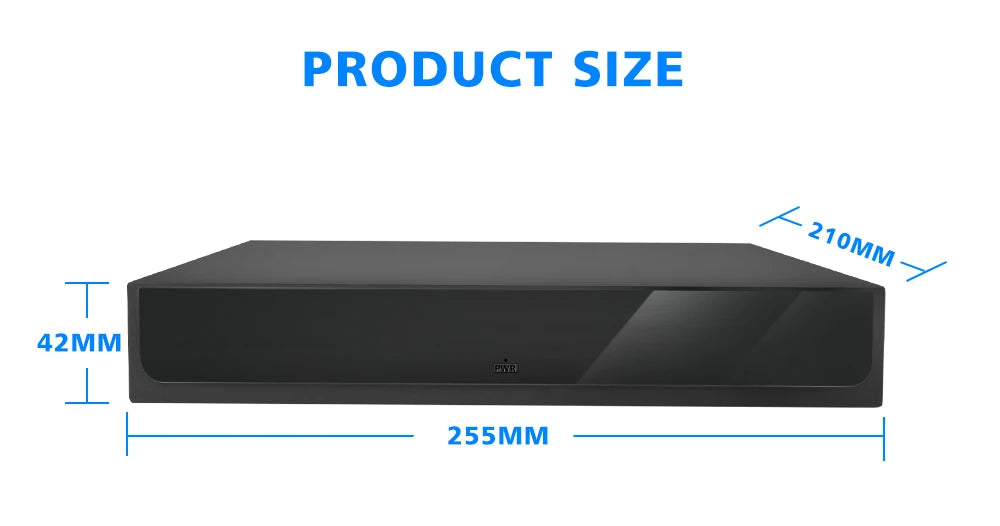

Product Size

Packing List

Main Features :

*Embedded Linux real-time operating system realizes various practical functions such as centralized management, centralized preview, centralized video recording, and alarm of IPC;

*Support H.265 video encoding stream, support H.265, H.264 device hybrid access;

*Support ONVIF protocol to ensure the interconnection of network video surveillance products;

*Support G.711U, G.711A audio compression to realize real-time monitoring of video recording;

*Support one-click addition, automatically modify the camera IP address to add;

*Support log, video, and other information query and backup;

*Support AC18 Plus cloud service, support remote monitoring of mobile devices such as mobile phones and tablet computers;

*Support VGA and HDMI interface to output video signal at the same time (same source), VGA output up to 1080P; HDMI up to 4K output;

*Up to 8MP pixel HD network video preview, storage and playback;

*Support 1 SATA interface;

*Support HDMI and AUX (3.5mm) audio output;

*Support 1 channel 8MP/4 channel 4MP simultaneous preview and playback;

*Compatibility of hard disk has been improved in an all-round way, with a maximum of 8T hard disk access;

Specification :

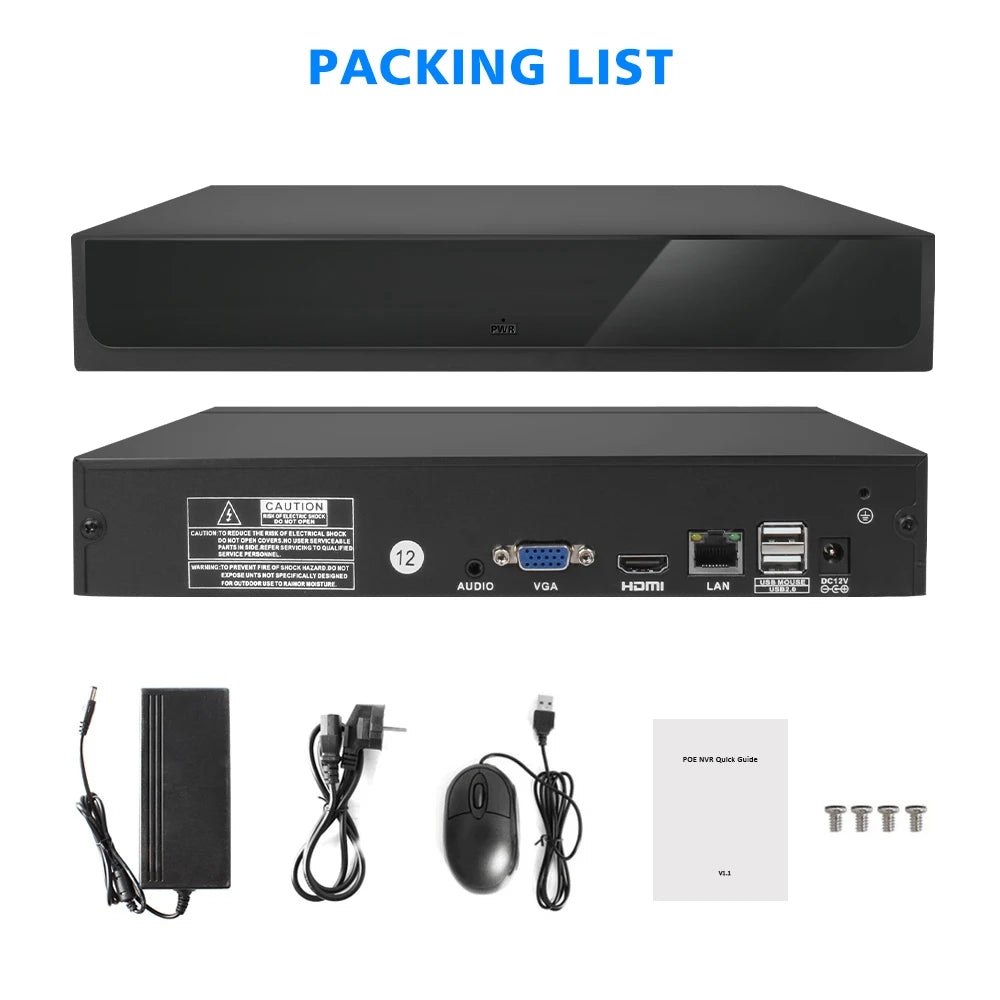

Packing List :

1*12Ch / 20CH H.265 CCTV NVR

1*USB Mouse

1*Power Supply 12V 2A ( EU/US/UK/AU Optional )

1*user manual

1*Screws
