Feature:

1. Rapid cooling (2200W cooling capacity)

2. Metal shell (high structural strength, high temperature resistance, not easily deformed, no need to worry about aging and oxidation due to exposure to sunlight, suitable for harsh working environments, suitable for multiple scenarios such as light/heavy trucks, construction vehicles, trucks, cranes)

Specification:

Current (A):60-80A
 Rated power:960W
Cooling capacity:1000W-3000W (3400-10238btu)
Refrigerant:R134A(600g) (not include in the package)
 Oil:90ml-120ml POE68
 Range of speed:1000-3000
Compressor displacement: 20CC

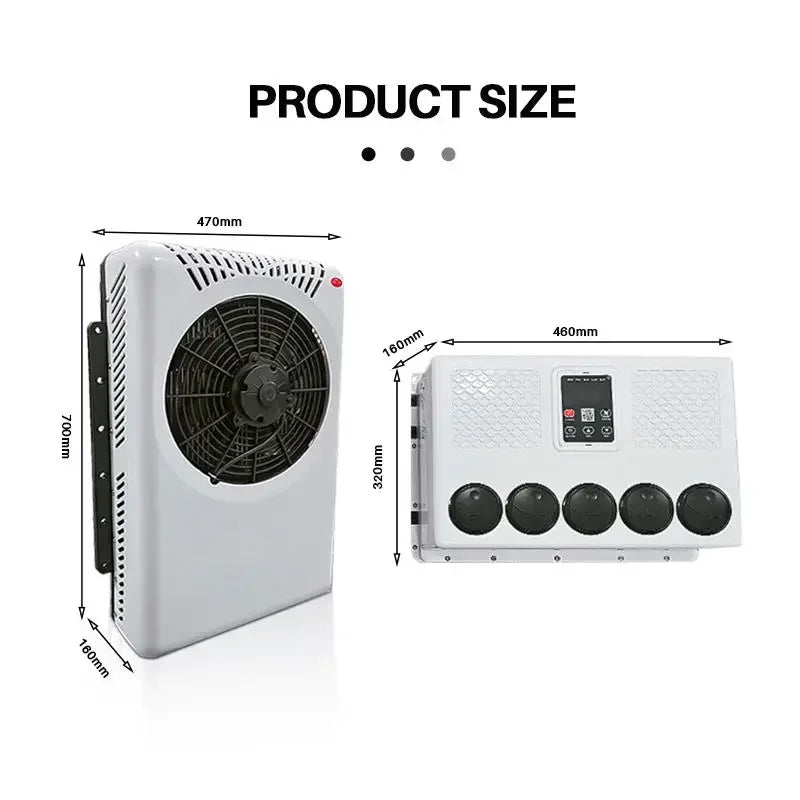

SIZE:

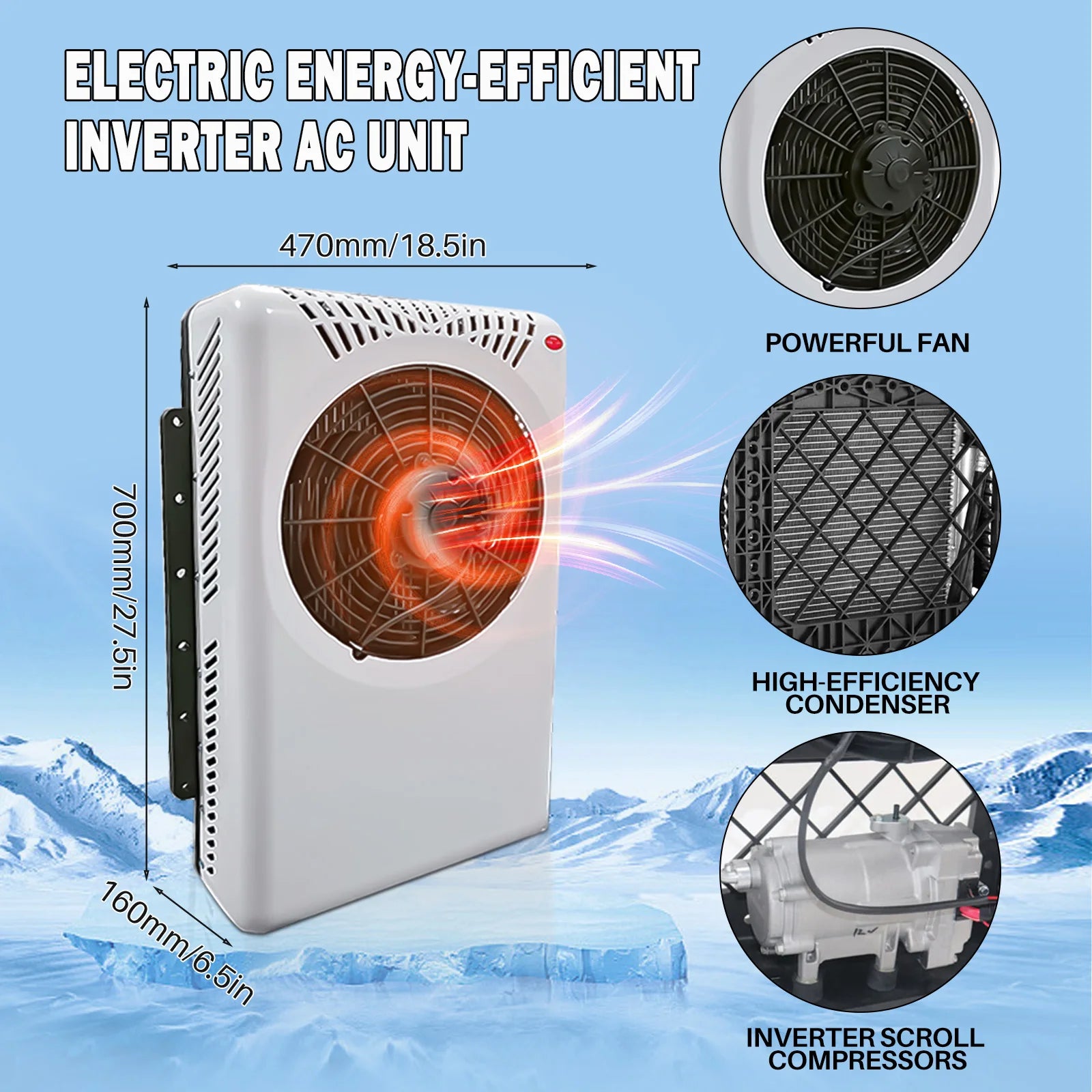

Outdoor unit size:L:700 * W:470 * H:160 (mm)

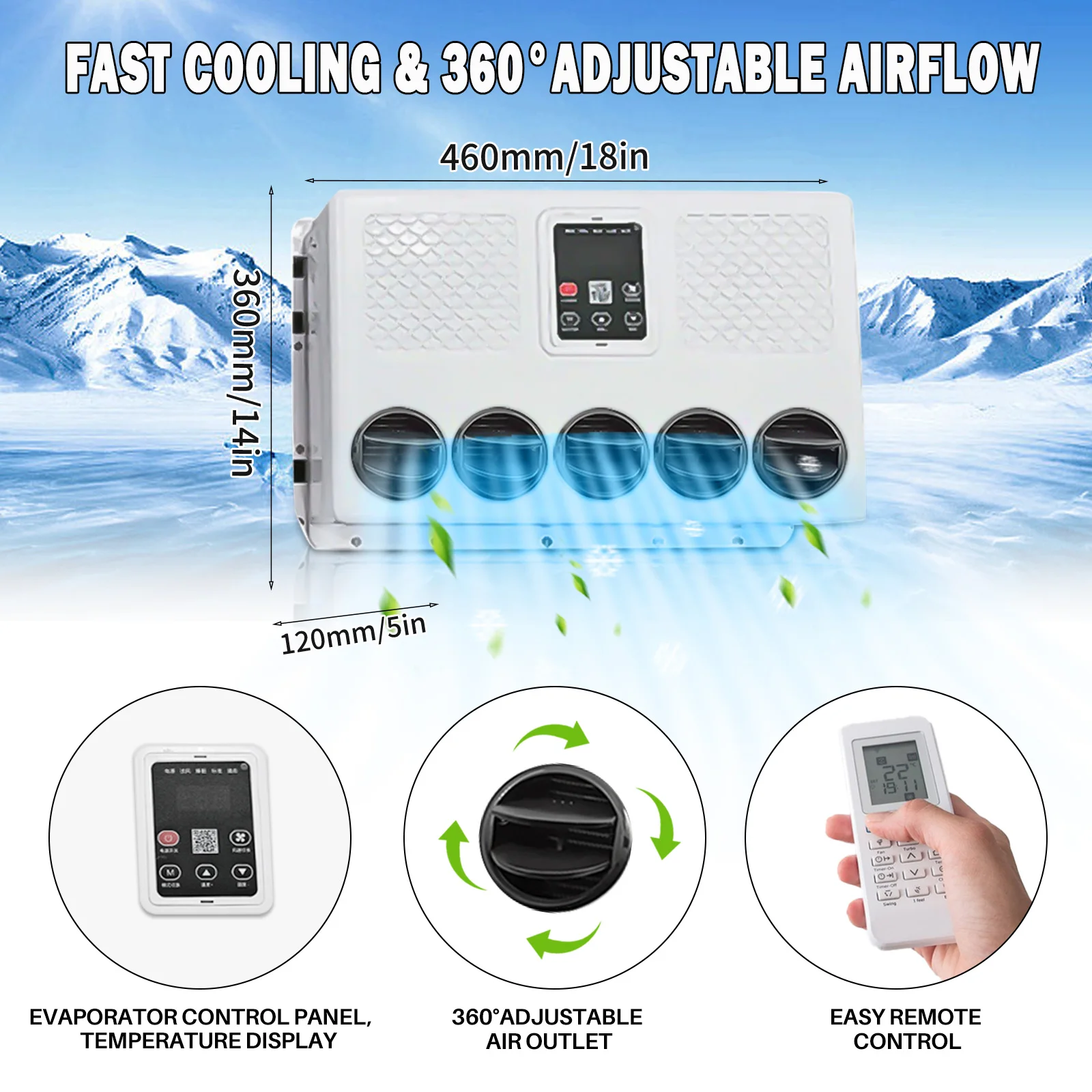

Indoor unit size:L:460* W:320 * H:160 (mm)

Model：EAC1009.12/EAC1009.24
Color：White/Red
Voltage：12V/24V
Electricity：40-60A/21-42A

Power：500-1000W

Refrigeration capacity：1000-2100W
Temperature range：16℃-32℃
Air volume：About 240-450m3/h
Noise range：
Internal unit: 52dB (A)

External unit: 80dB (A)
Size：
External unit: 670 * 500 * 220mm

Internal unit: 455 * 335 * 165mm
Weight：

External unit: 20.35kg

Internal unit: 6.15kg

Type of refrigerant：R134a(not include)
Air outlet style:Circular bull's eye
Number of evaporator tubes:Parallel flow of aluminum tube
Number of fans:one

Pipe materials：Aluminum tube EPDM
Compressor damping method：First level shock absorption
Evaporator placement：Horizontal and vertical

Model：EAC001.30.12
Color：White

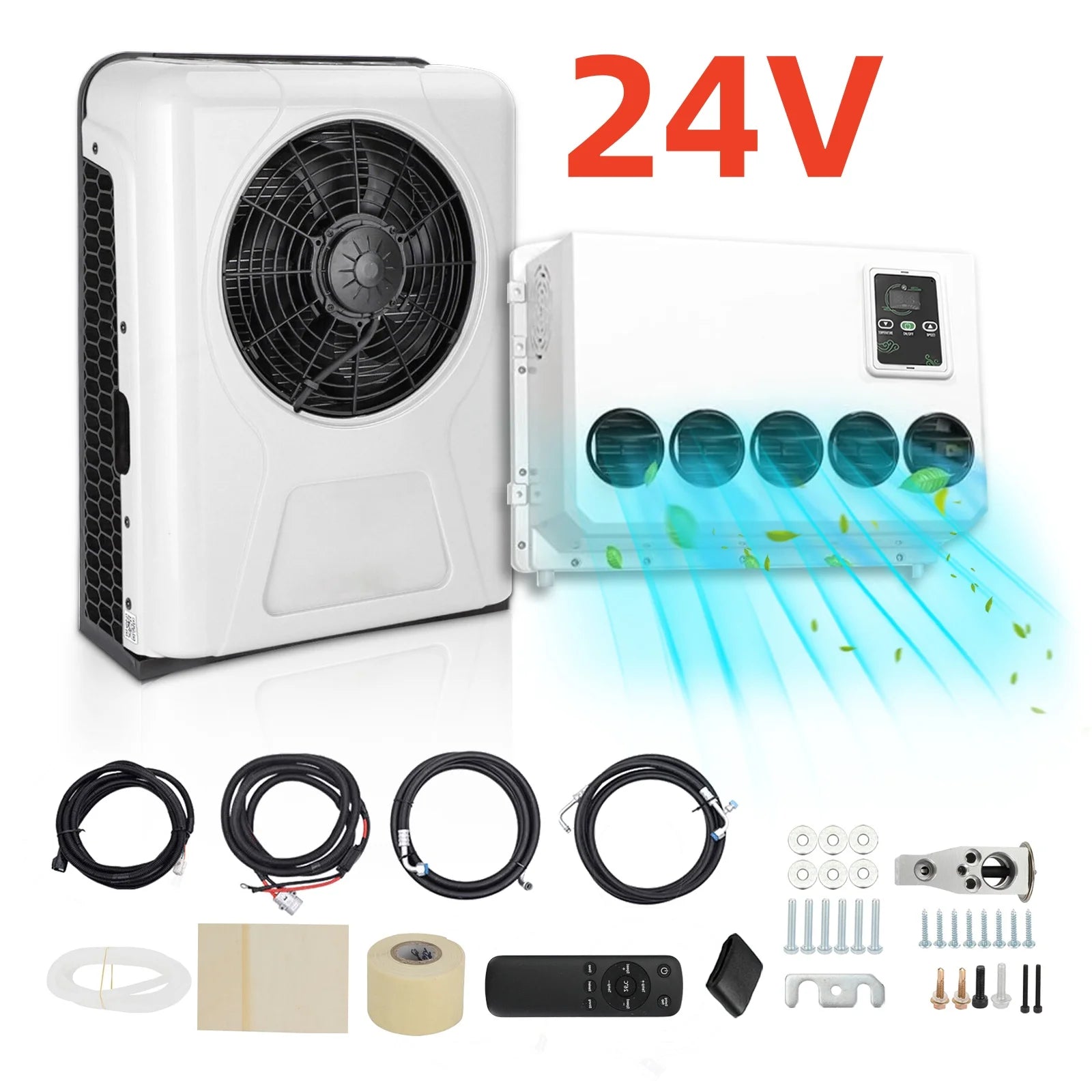

Voltage：12V/24V
Electricity：20-66A

Power：300-900W

Refrigeration capacity：1800-2200W
Temperature range：16℃-32℃
Air volume：about 250-450m3/h
Noise range：
Internal unit: 52dB (A)

External unit: 80dB (A)
Size：
External unit: 470 * 160 * 700mm

Internal unit: 460 * 160 * 320mm
Weight：

External unit: 14kg

Internal unit: 5.5kg

Type of refrigerant：R134a(not include)
Air outlet style:Circular bull's eye
Number of evaporator tubes:Parallel flow of aluminum tube
Number of fans:one

Pipe materials：Aluminum tube EPDM
Compressor damping method：First level shock absorption
Evaporator placement：Horizontal and vertical

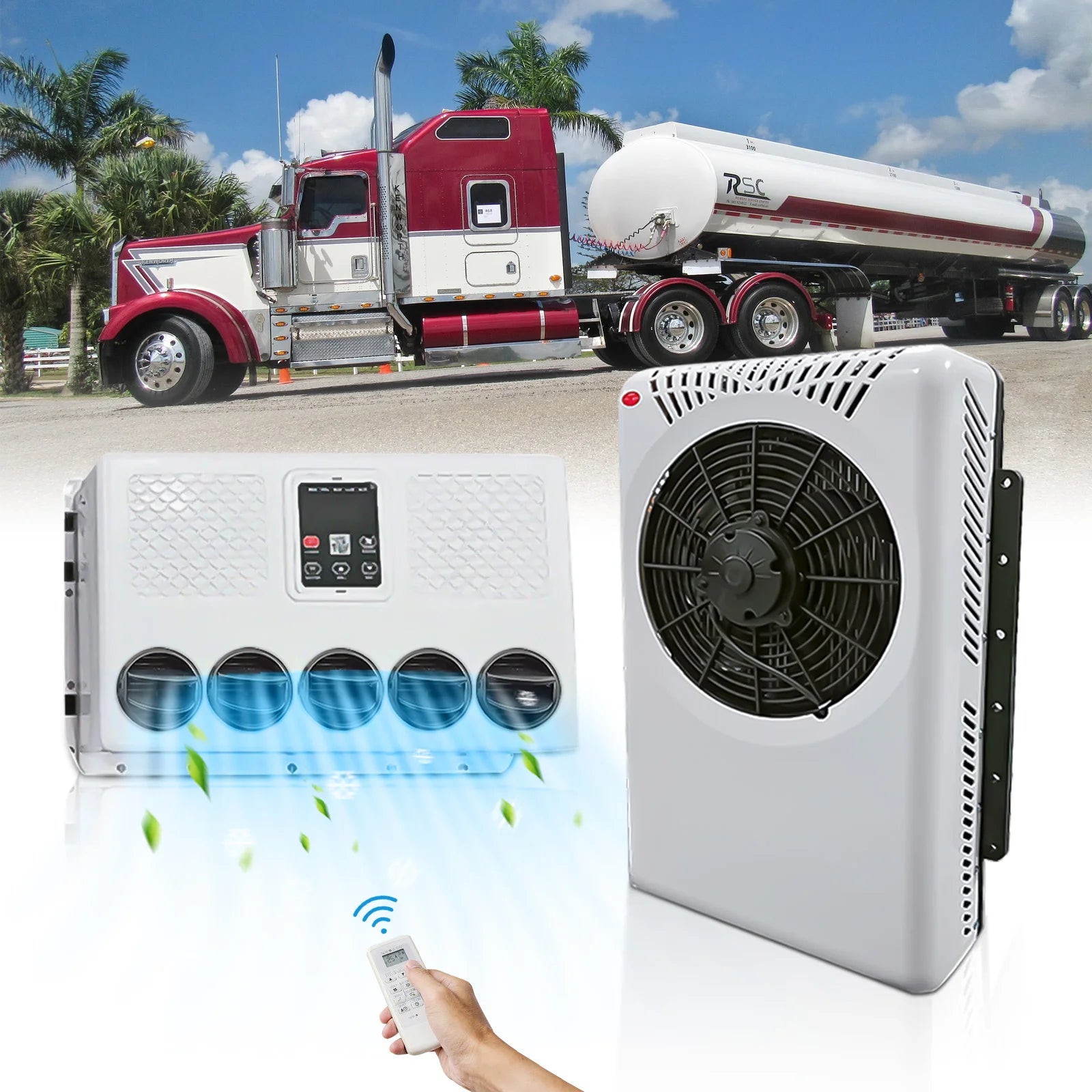

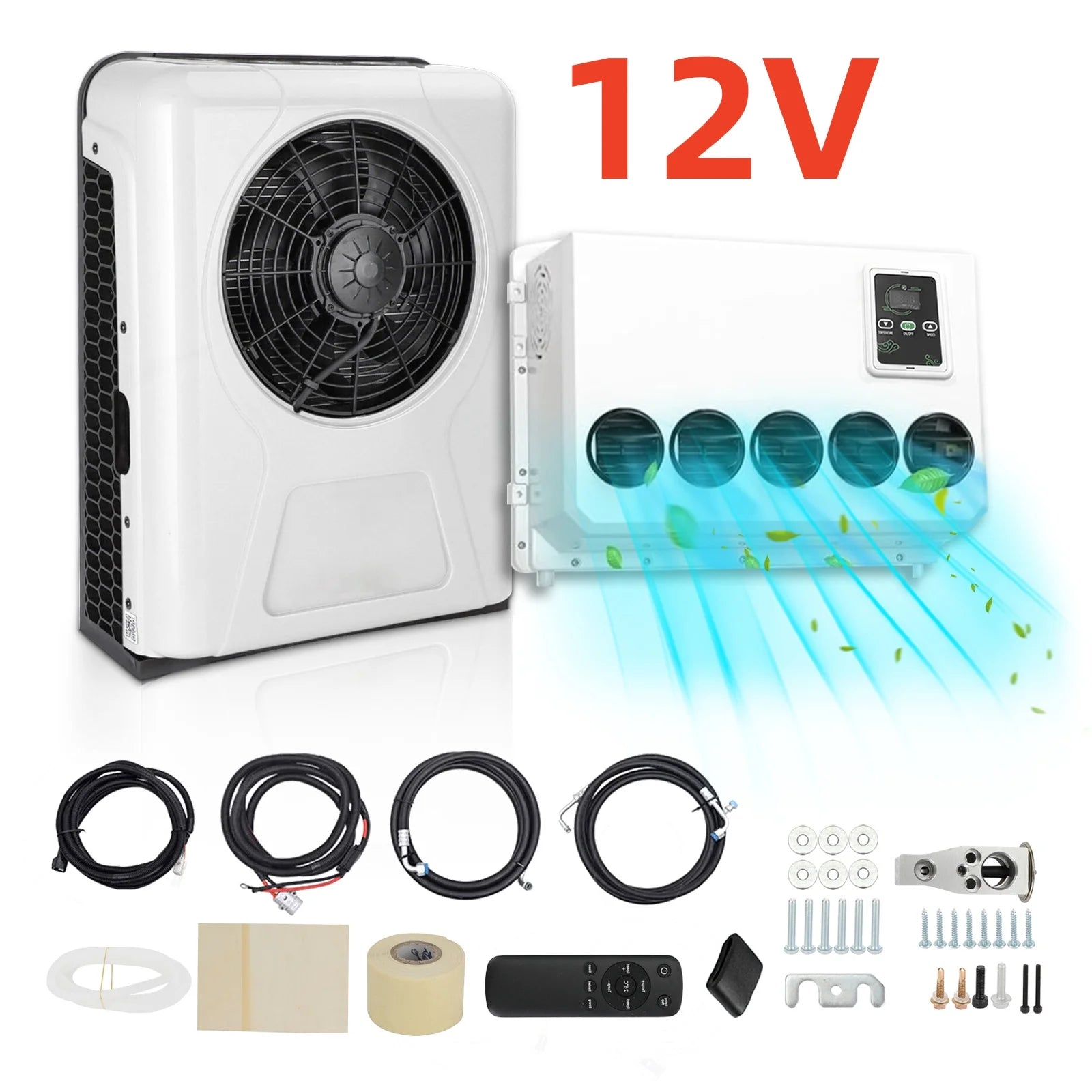

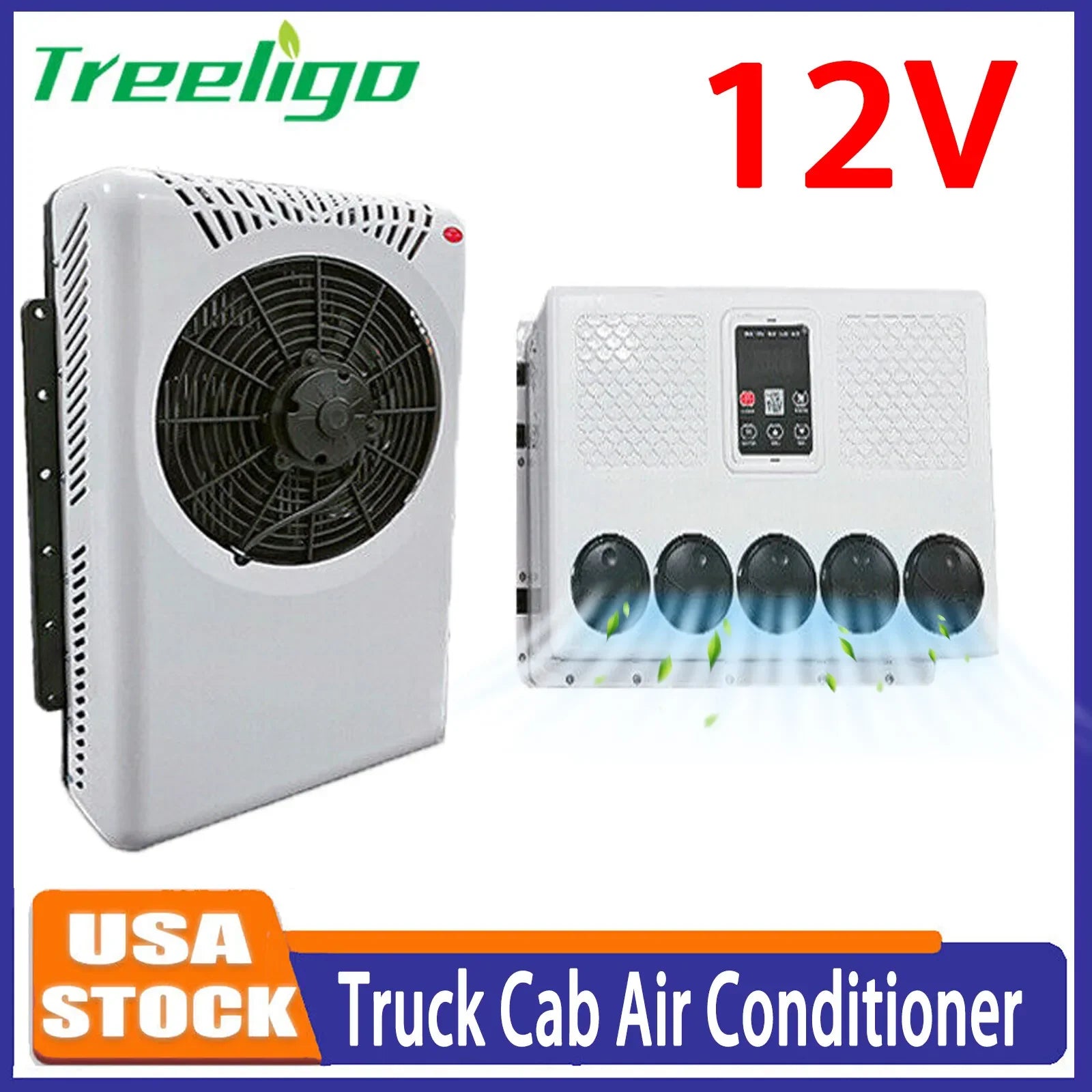

12V DC PARKING AIR CONDITIONER :

It is powered by the battery of the Truck car.

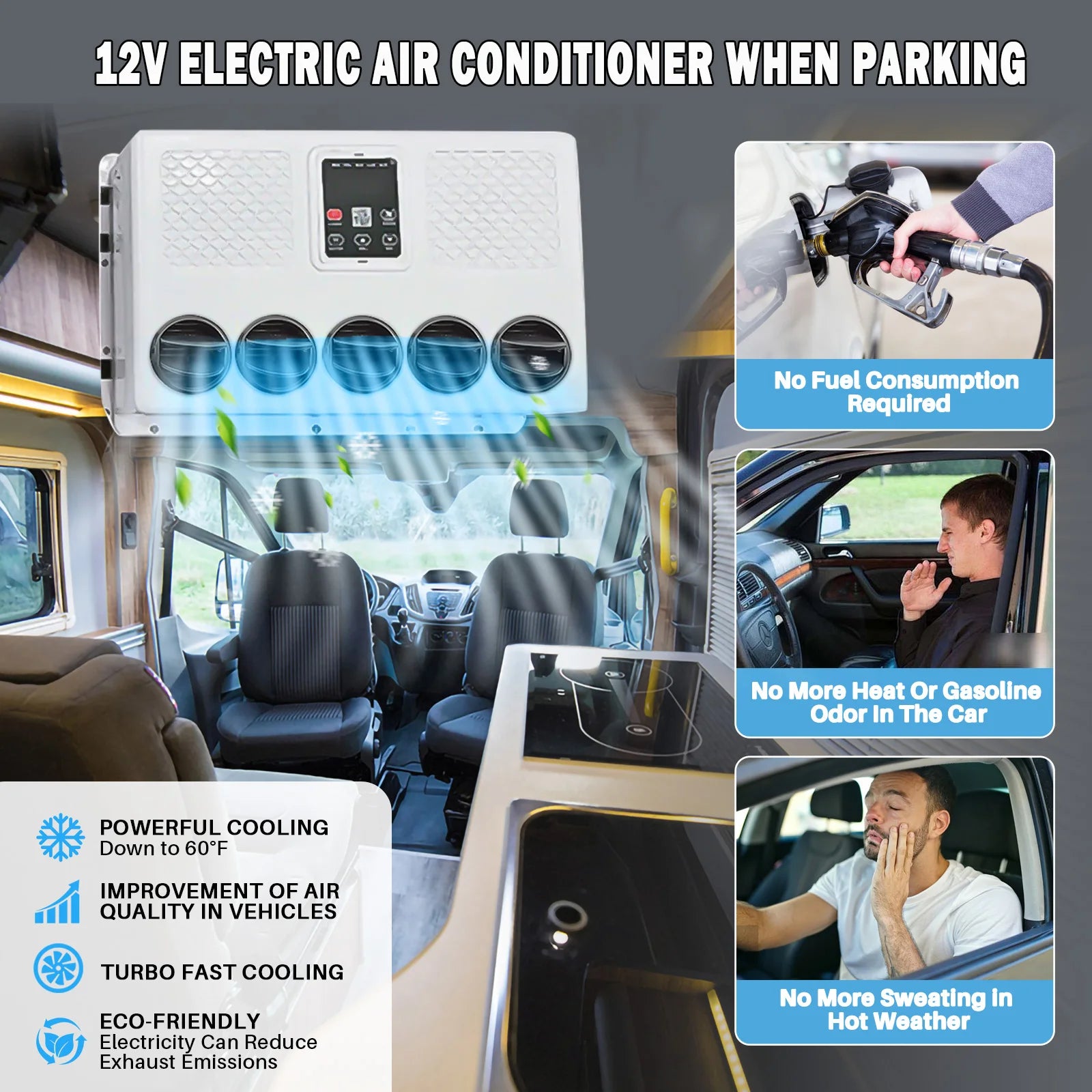

The parking air conditioner is a kind of in-car air conditioner. It refers to the equipment that uses the on-board battery DC power supply (12V) to make the air conditioner run continuously when parking and waiting and resting, and to adjust and control the temperature, humidity, flow rate and other parameters of the ambient air in the car, so as to fully meet the comfort cooling needs of the truck driver.

These DC 12V products are now widely used in the ventilation and air conditioning systems for the cabs in trucks, tractors and construction machinery. 12V electric air conditioning system have multi installation ways to ensure it can be suitable for most vehicles in the market. It includes 1) rooftop mounted air conditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (recreational vehicle), and 2) back-wall mounted air conditioner for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab.

This is the most popular truck parking air conditioner on the market.
The truck air conditioner is divided into two types : Rooftop Air Conditioner/ split type model. Very easy to install.
The entire air conditioner is integrated, with compressors, condensers, blowers and other accessories inside.

PRODUCT ADVANTAGE:

1. Light and thin appearance, saving space
2. 100% battery driven, save fuel consumption and save space with compact design
3. The outdoor shell is made of nylon plastic and polycarbonate plastic mixture. Has stronger toughness,Good rust prevention and No color fading performance.
4. After strictly water pouring test,No water penetration.

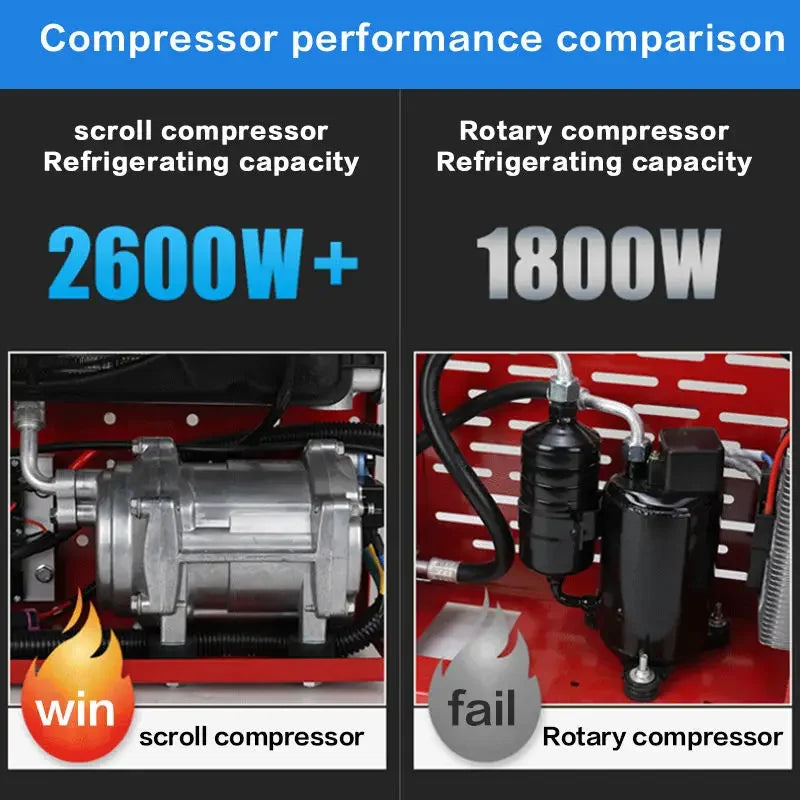

5. Independent production of the electric scroll compressor.High refrigeration efficiency, low noise, low energy consumption, low failure rate.
6. Super condenser, more superior heat dissipation.
7. High quality evaporator, stronger refrigeration.
8. Digital frequency conversion control, more efficient and more energy saving. Use energy saving mode when you sleep at night,It can run continuously 6 to 8 hours. Use super mode in hottest hours, cooling rapidly and stronger air supply.
9. Double insulation,noise reduction,more comfortable.
10. Widely used,easy to install.
It is famous because of its:
High Cooling Capacity & Reliable Performance Suitable for Most Place in the World;
Stream Line Design to Apply All Kinds of Van & Mini Bus;
Environment Friendly;
Cheap Price with High Quality;
ISO 9001, CE & TS16949 Certification;
12 Months Warranty Time After Delivery.
Technological data of air conditioner unit for Excavator construction machinery Truck Mini Bus Van

Kindly Reminder:

Regarding the issue of tariffs, we will do our best to cooperate with you, but it is difficult for us to measure whether you need to pay import taxes. To ensure that our buyers can pay lower tariffs and enjoy a pleasant shopping experience with us.

Leave a message to tell us your Car model for confirmation.

Please contact us before leaving a neutral or negative feedback,We will try the best to solve the problem for you！
